Toshiba Tosvert VF-S15 User Manual

E6582175
G-6
7
7.2.2 Output terminal function (sink logic)
This function is used to output a variety of
signals to external devices from the inverter.
With the logic output terminal function, you can
select from multiple output terminal functions.
Set two types of functions for the RY-RC, OUT
terminal and then you can output when either one
or both of them is ON.
Default settings of slide switch SW1and SW2 are
as follows;
SW1: PLC side, SW2: VIB side and S3 side.
Refer to page B-11 to 13 for details.
 Usage
Note1) A chattering (momentary ON/OFF of contact) is generated by external factors of the vibration and the impact,
etc. In particular, please set the filter of 10ms or more, or timer for measures when connecting it directly with
input unit terminal of programmable controller. Please use the OUT terminal as much as possible when the
programmable controller is connected.
VIC
FM
S3
FLA
RY
FLC
FLB
VIA CC
VIB
PP
RC
FCC R
NO
P24
OUT
STO
CC
+SU
S2
RES
S1
SINK
SOURCE
SW1
PLC
VIB
SW2
PTC
S3
S4

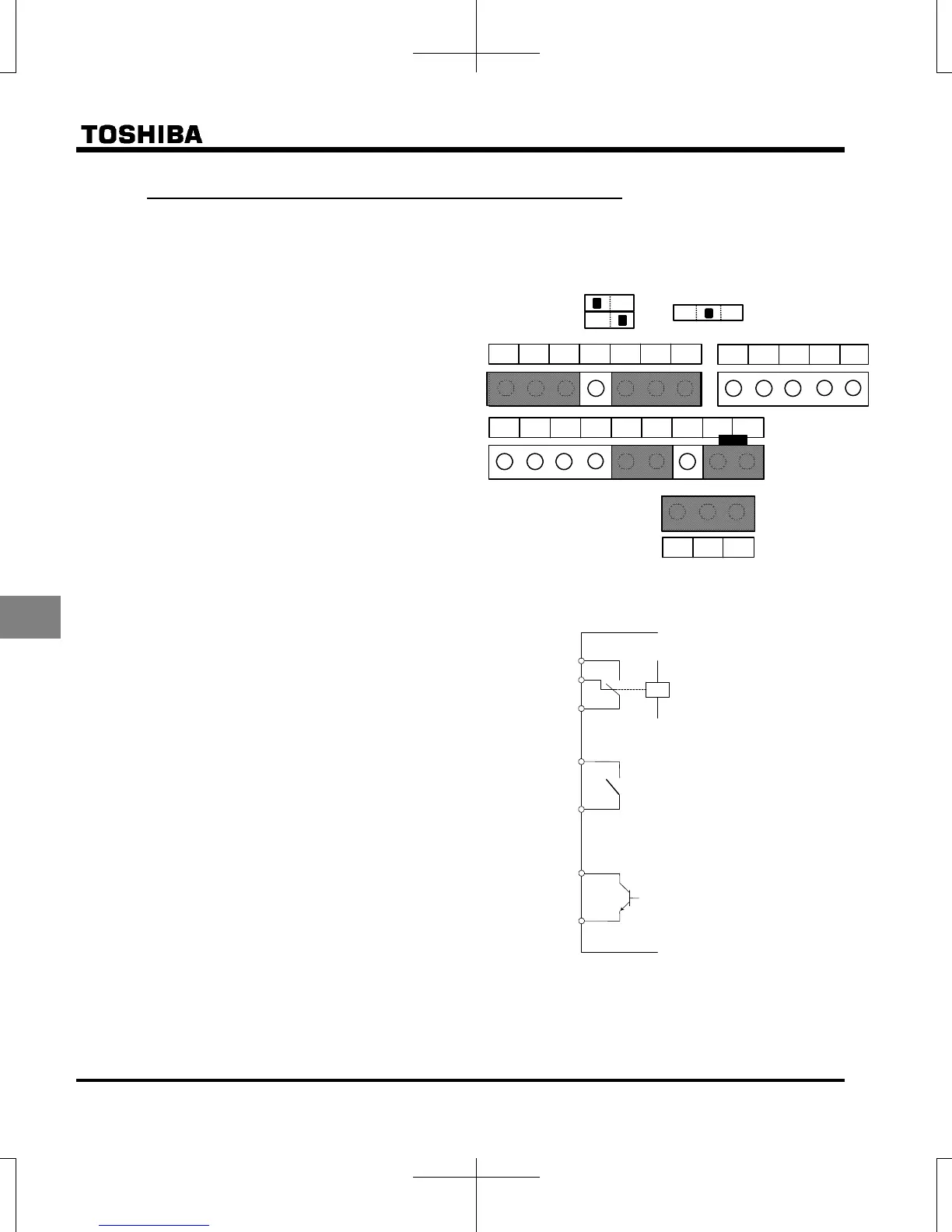

[Control terminal block]
Function of FLA, B, C terminals:
Set at parameter Note 1)
Function of RY terminal:
Set at parameter  and f137 Note 1)
Function of OUT terminal:
Set at parameter  and f138
FLA
FLB
FLC
FL
RC
OUT
NO
RY
