Toshiba Tosvert VF-S15 - Page 267

E6582175
G-8
7
(1) Output signals when two types of functions are simultaneously
turned ON. <AND>
In case of RY-RC terminal, signals are output when parameter  = 0 or 2, and the functions set at
parameters  and  are simultaneously turned on.

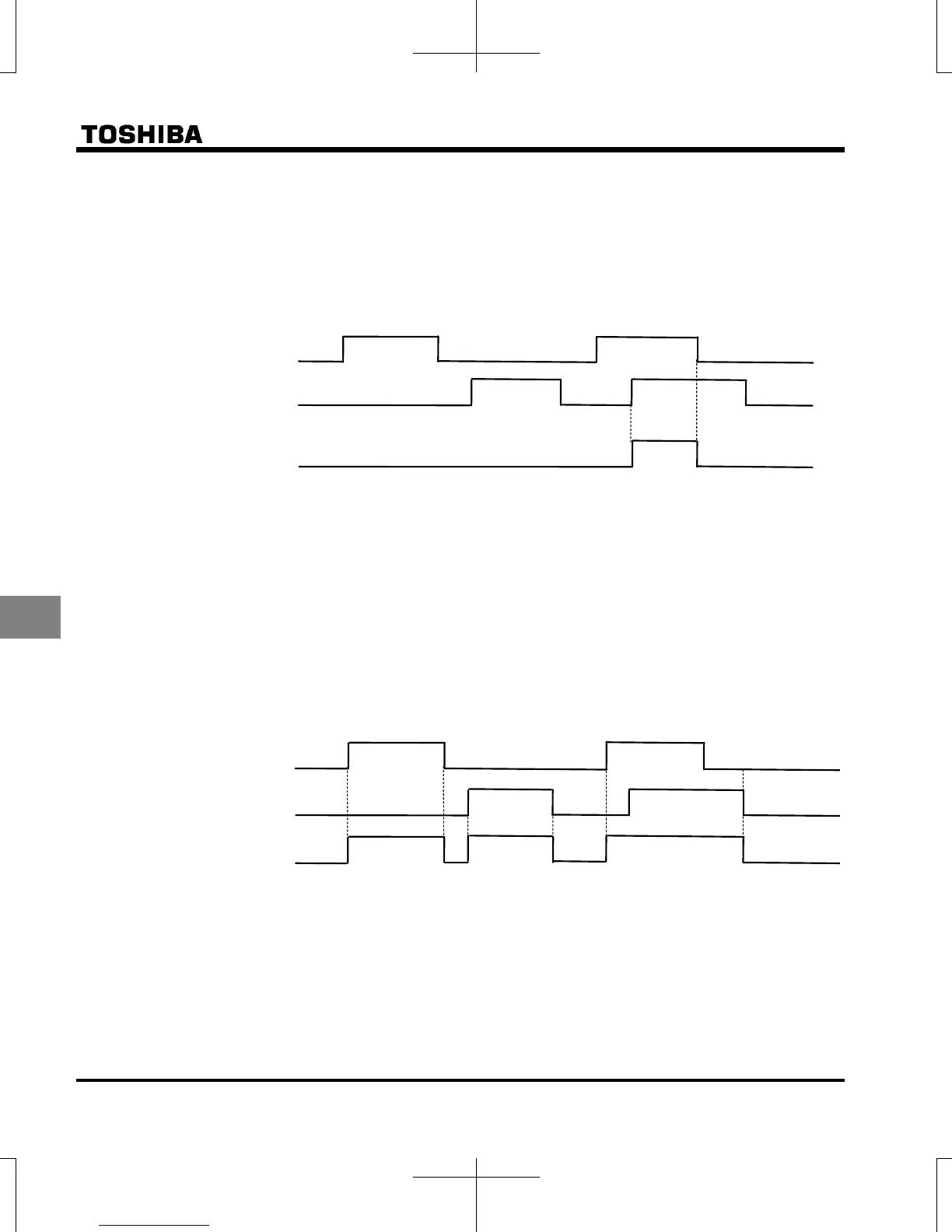

● Timing chart
ON
OFF
ON
OFF
ON
OFF


RY-RC
Output
* OUT terminal outputs signals when parameter  = 0 or 2, and the functions set at parameters
 and  are simultaneously turned on.
(2) Output signals when either one of two types of functions is
turned ON. <OR>
In case of RY-RC terminal, signals are output when parameter  =1 or3, and either of the
functions set at parameters  and  is turned on.
● Timing chart
ON
OFF
ON
OFF
ON
OFF


RY-RC
Output
*OUT terminal outputs signals when parameter  =2 or3, and either of the functions set at
parameters  and  is turned on.
