Toshiba Tosvert VF-S15 User Manual

E6582175
G-13
7

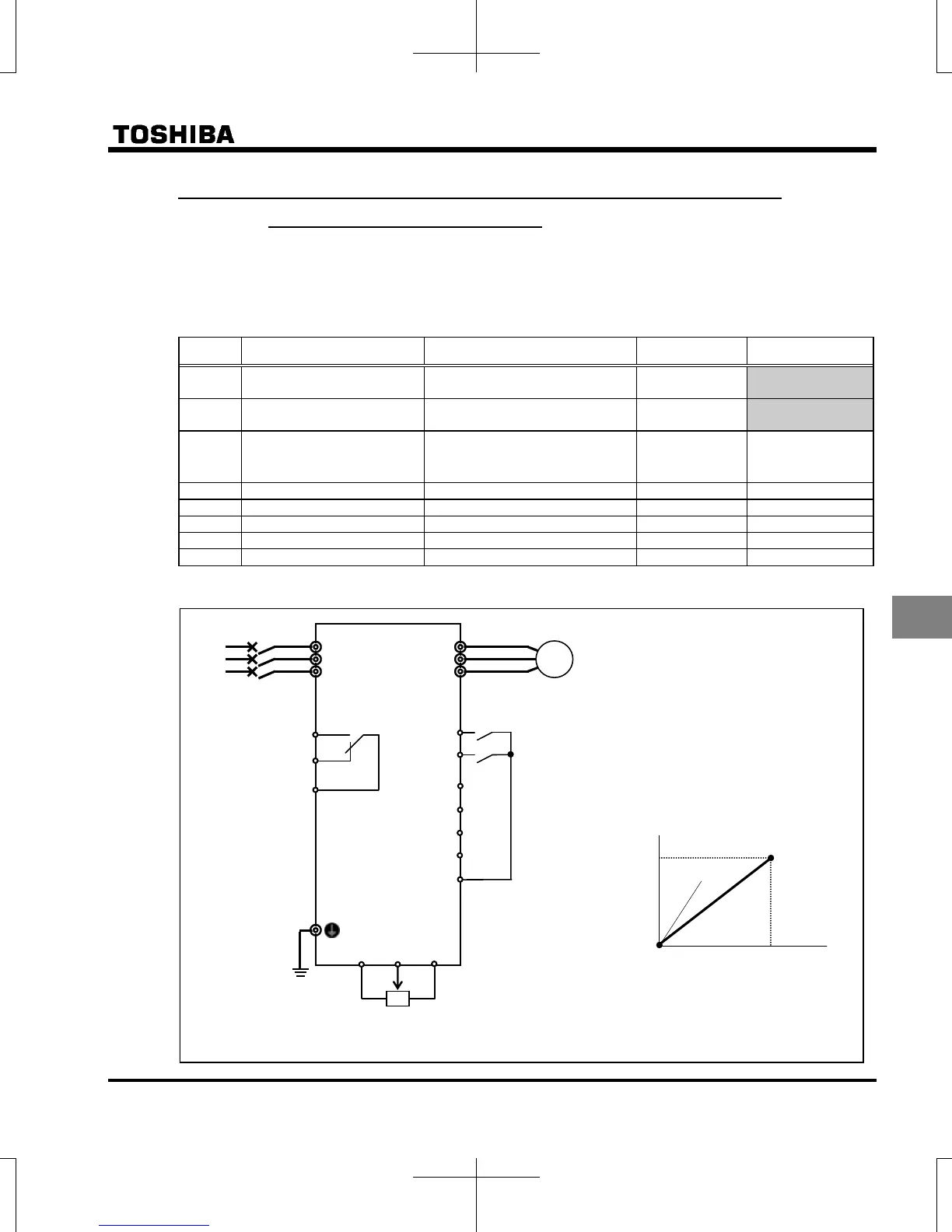

7.3.1 Settings depending on voltage (0 to 10 V) input
<external potentiometer>
You can set the frequency settings by connecting the external potentiometer (1k to 10kΩ) between PP, VIA, and
CC terminals.
You can also set by inputting an analog voltage signal of 0 to 10Vdc between the VIA and CC terminals.
The following shows examples when the run command is input from the terminal.
Title Function Adjustment range Default setting Setting example

Command mode selection 0 - 4
1
(panel keypad)
0
(terminal block)

Frequency setting mode
selection 1
0 - 14
0
(setting dial 1)
1
(terminal VIA)

Analog/logic input selection
(VIA/VIB)
0 - 4 0
0 or 1
(Analog input)

VIA input point 1 setting 0 - 100% 0 0

VIA input point 1 frequency 0.0 - 500.0Hz 0.0 0.0

VIA input point 2 setting 0 - 100% 100 100

VIA input point 2 frequency 0.0 - 500.0Hz *1 50.0/60.0

Analog input filter 2 - 1000 ms 64 64
*1: Default setting values vary depending on the setup menu setting. Refer to section 11.5.
Motor
M
R/L1
U/T1
MCCB
Power
Supply
S/L2
T/L3
V/T2
W/T3
CC
F
R
RES
FLC
S1
S2
VF-S15
 Run and stop settings
You can switch between forward run (F)
and reverser run (R), and run/stop with
external signals.
 Setting characteristics for the voltage
input signal and frequency
Set characteristics at two points.
Forward
run
Reverse
run
S3
* Connect a single-phase
input model to R/L1 and
S/L2/N.
FLA
FLB
Hz
%


 
Point 2
Point 1
Voltage inpu
t
signal
0% 100%
(0V) (10 V)
Frequency
CC
VIA
PP

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
