Toshiba Tosvert VF-S15 User Manual

E6582175
G-14
7

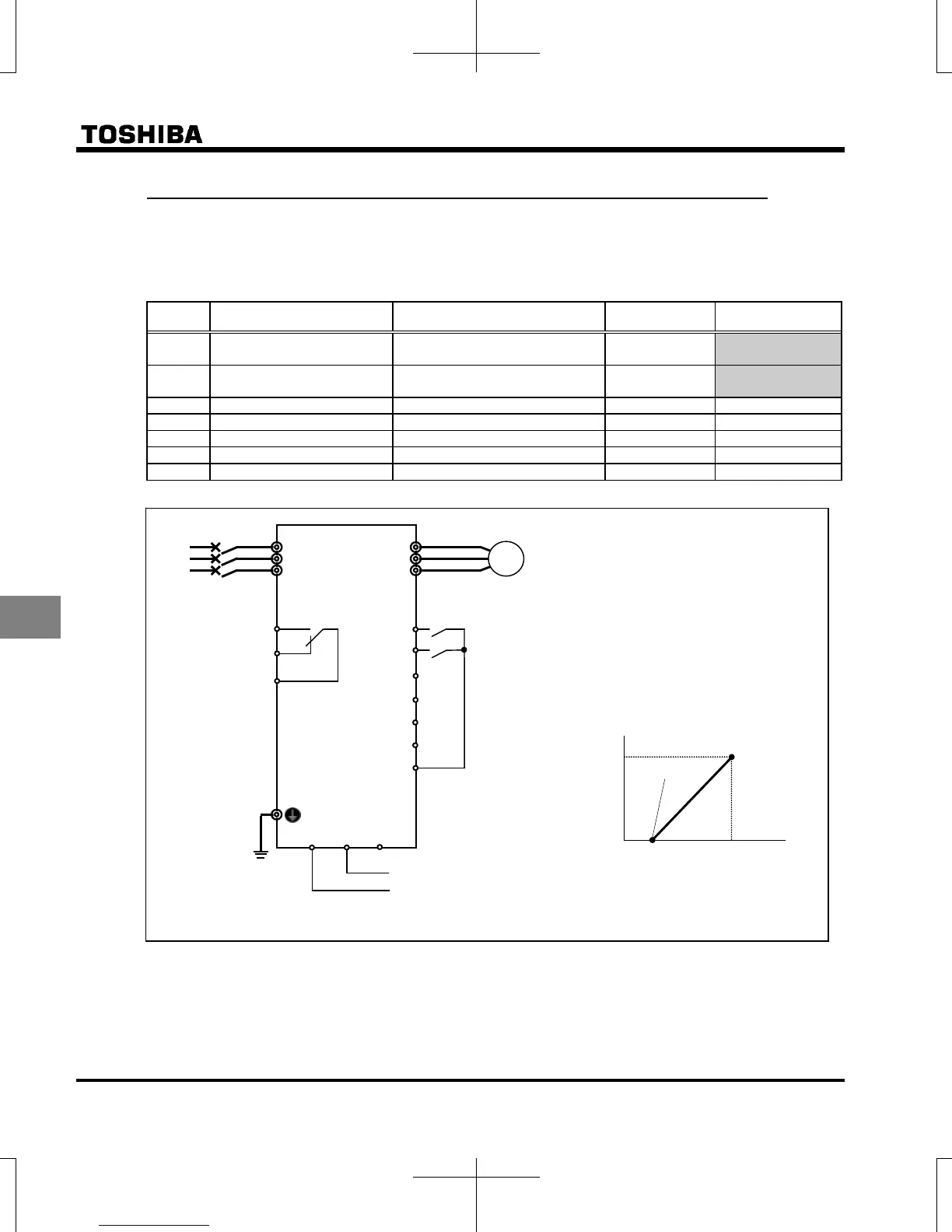

7.3.2 Settings depending on current (4 to 20 mA) input
You can set the frequency settings by inputting an analog current signal of 4 (0) to 20mA dc between the VIC and
CC terminals.
The following shows examples when the run command is input from the terminal.
Title Function Adjustment range Default setting Setting example

Command mode selection 0 – 4
1
(panel keypad)
0
(terminal block)

Frequency setting mode
selection 1
0 – 14
0
(setting dial 1)
8
(terminal VIC)

VIC input point 1 setting 0 – 100% 20 20 (or 0)

VIC input point 1 frequency 0.0 - 500.0Hz 0.0 0.0

VIC input point 2 setting 0 – 100% 100 100

VIC input point 2 frequency 0.0 - 500.0Hz *1 50.0/60.0

Analog input filter 2 - 1000 ms 64 64
*1: Default setting values vary depending on the setup menu setting. Refer to section 11.5.
Hz
%


 
Point 2
Point 1
Current input signal
0% 20% 100%
(0mA) (4mA) (20 mA)
Frequency
 Run and stop settings
You can switch between forward run (F) and
reverser run (R), and run/stop with external
signals.
 Setting characteristics for the current input
signal and frequency
Set characteristics at two points.
Motor
M
R/L1
U/T1
MCCB
Power
Supply
S/L2
T/L3
V/T2
W/T3
CC
FLC
VIC PP
VF-S15
+
-
* Connect a single-phase
input model to R/L1 and
S/L2/N.
4 (0) to 20 mA dc
FLA
FLB
Forward
run
Reverse
r
un
CC
F
R
S1
S2
S3
RES

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
