E6582175
A-17
1

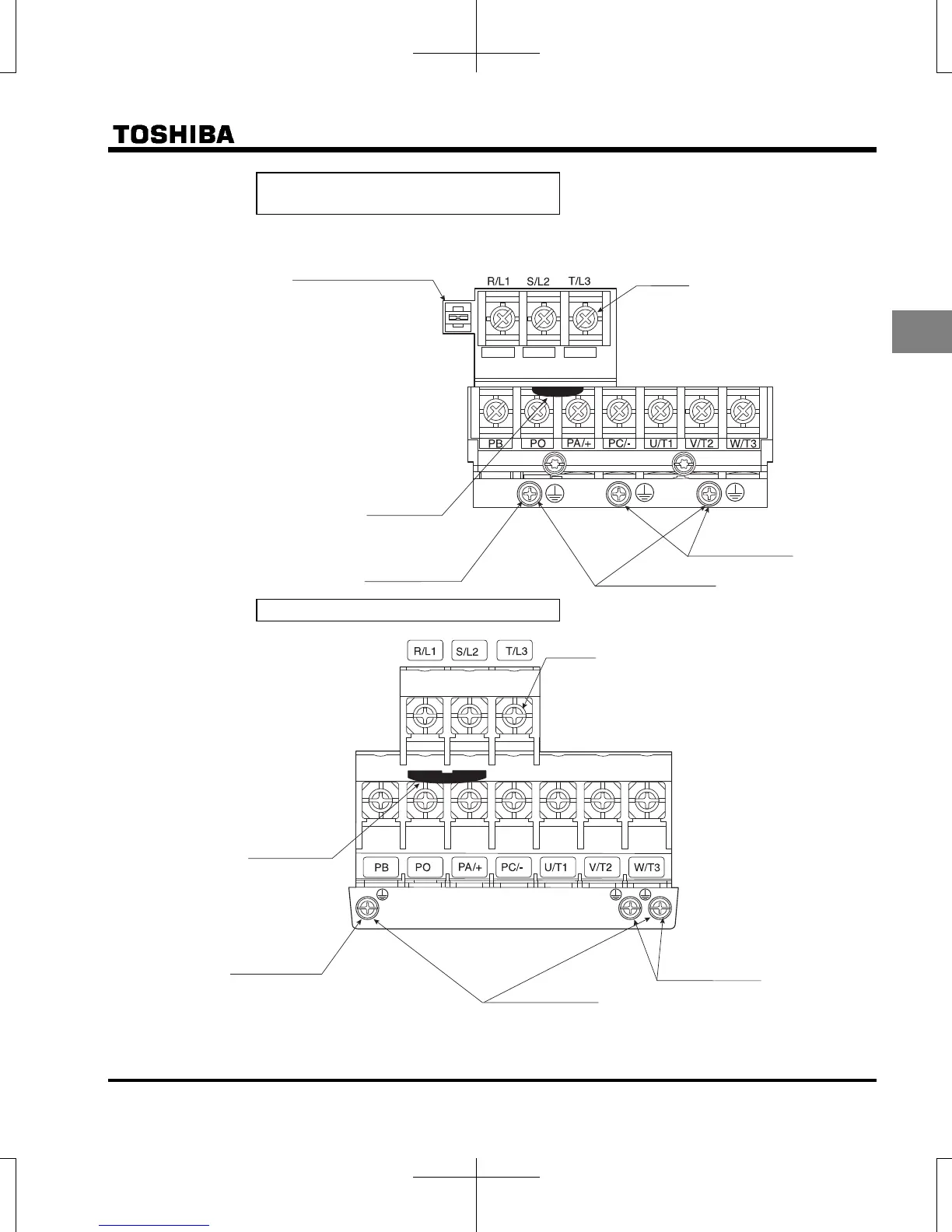

Shorting-bar
M5 screw
Grounding capacitor switch
(4055PL-W, 4075PL-W only)
For EMC plate
Grounding terminal
(M5 screw)
Grounding terminal
(M5 screw)
Shorting-bar
M6 screw
For EMC plate
Grounding terminal
(M5 screw)
Grounding terminal
(M5 screw)
VFS15-2055PM-W1, 2075PM-W1
VFS15-4055PL-W1, 4075PL-W1
VFS15-2110PM-W1, 2150PM-W1
Note1) Bend the clips on the wiring port of the terminal cover to connect the PB, PO, PA/+, and PC/- terminals.
Note2) Be careful to insert all wires into the cage of terminal block.

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
