E6582175
A-16
1

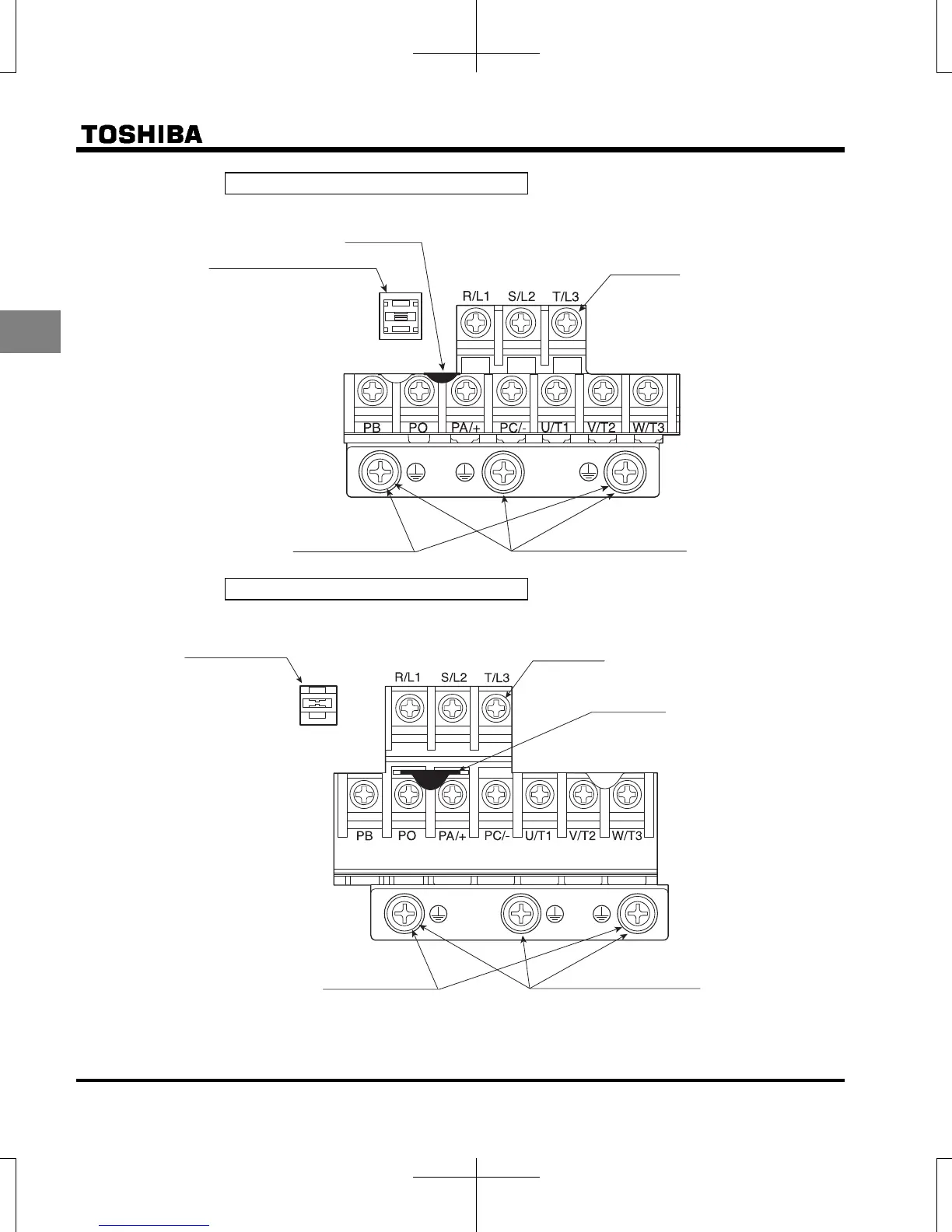

M4 screw
Shorting-bar
For EMC plate
Grounding capacitor switch
Grounding terminal
(M5 screw)
M4 screw
Shorting-bar
For EMC plate
Grounding capacitor
switch
Grounding terminal
(M5 screw)
VFS15-4004PL-W1 to 4015PL-W1
VFS15-4022PL-W1, 4037PL-W1
Note1) Bend the clips on the wiring port of the terminal cover to connect the PB, PO, PA/+, and PC/- terminals.
Note2) Be careful to insert all wires into the cage of terminal block.
