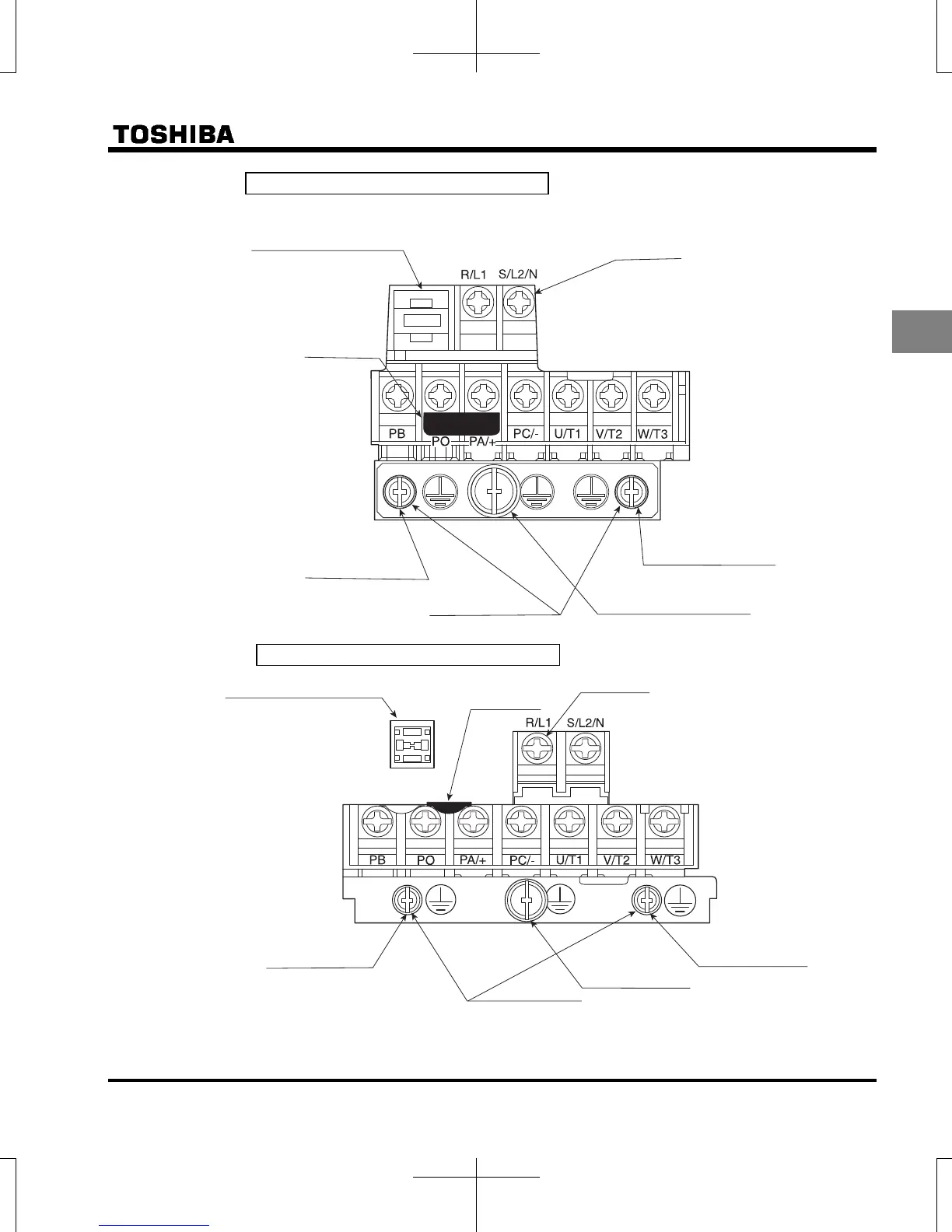

M3.5 screw
Shorting-bar
Grounding capacitor switch
For EMC plate
Grounding terminal
(M4 screw)
Grounding terminal
(M5 screw)
Grounding terminal
(M4 screw)
M4 screw
Shorting-bar
Grounding capacitor switch
For EMC plate
Grounding terminal
(M5 screw)
Grounding terminal
(M4 screw)
Grounding terminal
(M4 screw)
VFS15S-2002PL-W1 to 2007PL-W1
VFS15S-2015PL-W1, 2022PL-W1
Note1) Bend the clips on the wiring port of the terminal cover to connect the PB, PO, PA/+, and PC/- terminals.
Note2) Be careful to insert all wires into the cage of terminal block.
