Toshiba Tosvert VF-S15

E6582175
A-14
1

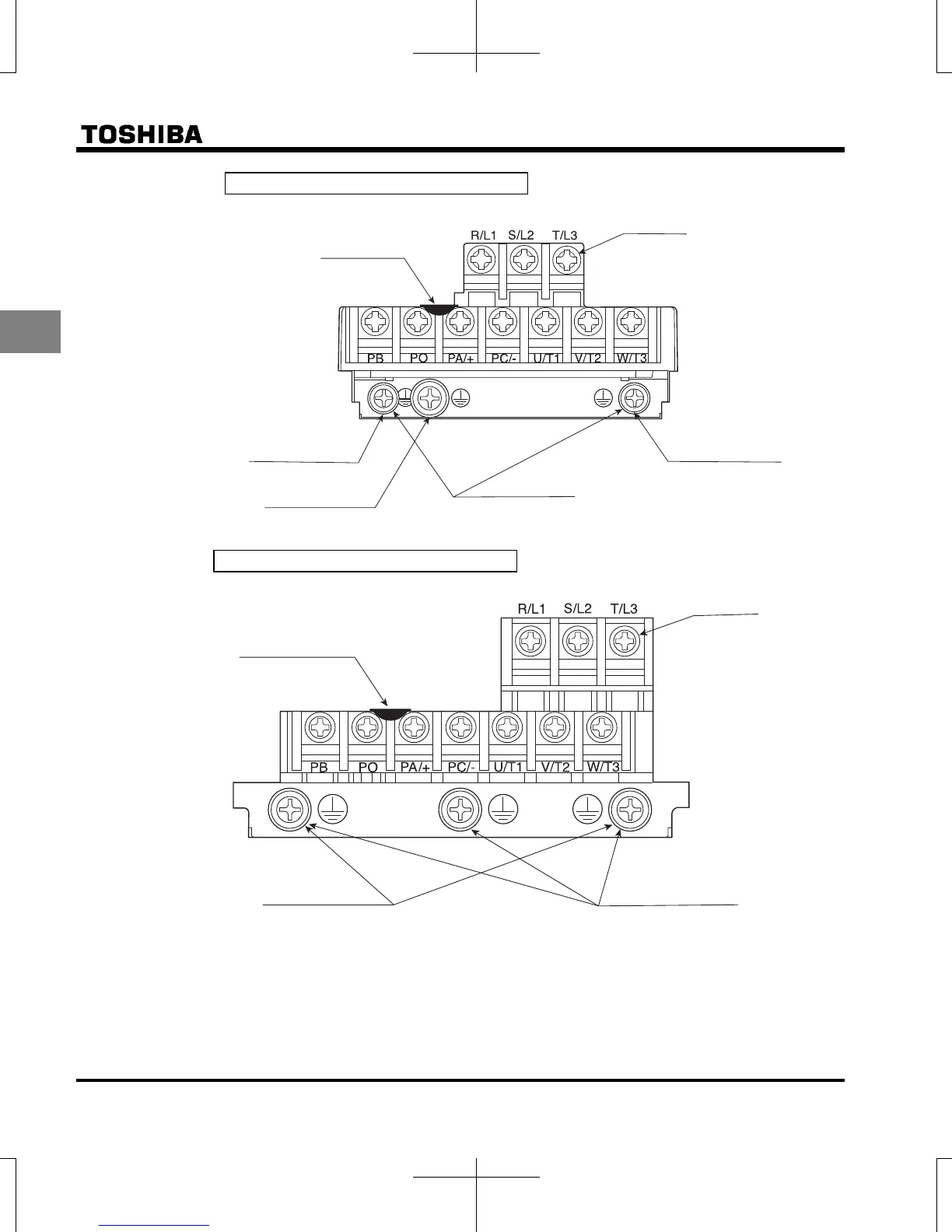

M4 screw
Grounding terminal
(M4 screw)
Shorting-bar
For EMC plate
Grounding terminal
(M4 screw)
Grounding terminal
(M5 screw)
M4 screw
Shorting-bar
For EMC plate
Grounding terminal
(M5 screw)
VFS15-2015PM-W1, 2022PM-W1
VFS15-2037PM-W1
Note1) Bend the clips on the wiring port of the terminal cover to connect the PB, PO, PA/+, and PC/- terminals.
Note2) Be careful to insert all wires into the cage of terminal block.
