Toshiba Tosvert VF-S15 User Manual

E6582175
J-8
10
Hook
S
T
A
T
U
S
R
U
N
RUN
EASY
STOP
MODE
P
R
G
M
O
N
%
Hz
S
T
A
T
U
S
R
UN
R
UN
EA
SY
STO
P
M
ODE
P
R
G
M
O
N
%
Hz
EASY
MODE
S
TA
TU
S
RU
N
RUN
STOP
PRG
M
O
N
%
Hz

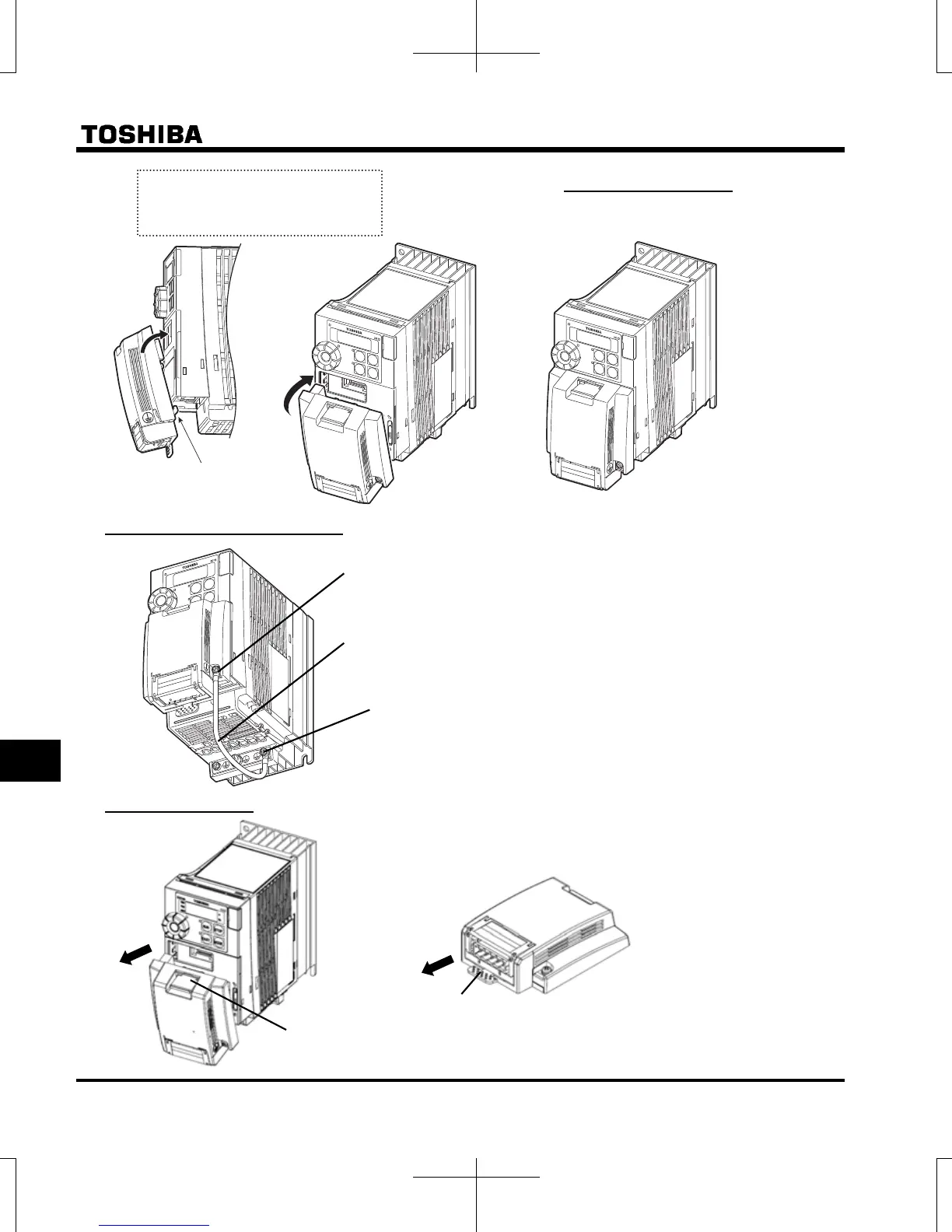

5) Hang the hook of the option adapter
on the bottom of the front cover and
mount it to the inverter.
Side view
After mounting the option adapter,
the depth increases 25.5mm.
Connect attached grounding cable to
g
roundin
g
terminal of inverter.
■ The option is mounted
■ How to wire the grounding cable
Grounding terminal of the option adapter
Recommended tightening torque : 0.5N
・m
Grounding terminal of inverter.
■ Removing of option
Release
tab
Remove the connector in
the direction of arrow while
pushing the release tab.
Remove an option in the
direction of arrow while pushing
the release tab in the lower
direction.
Release
tab

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
