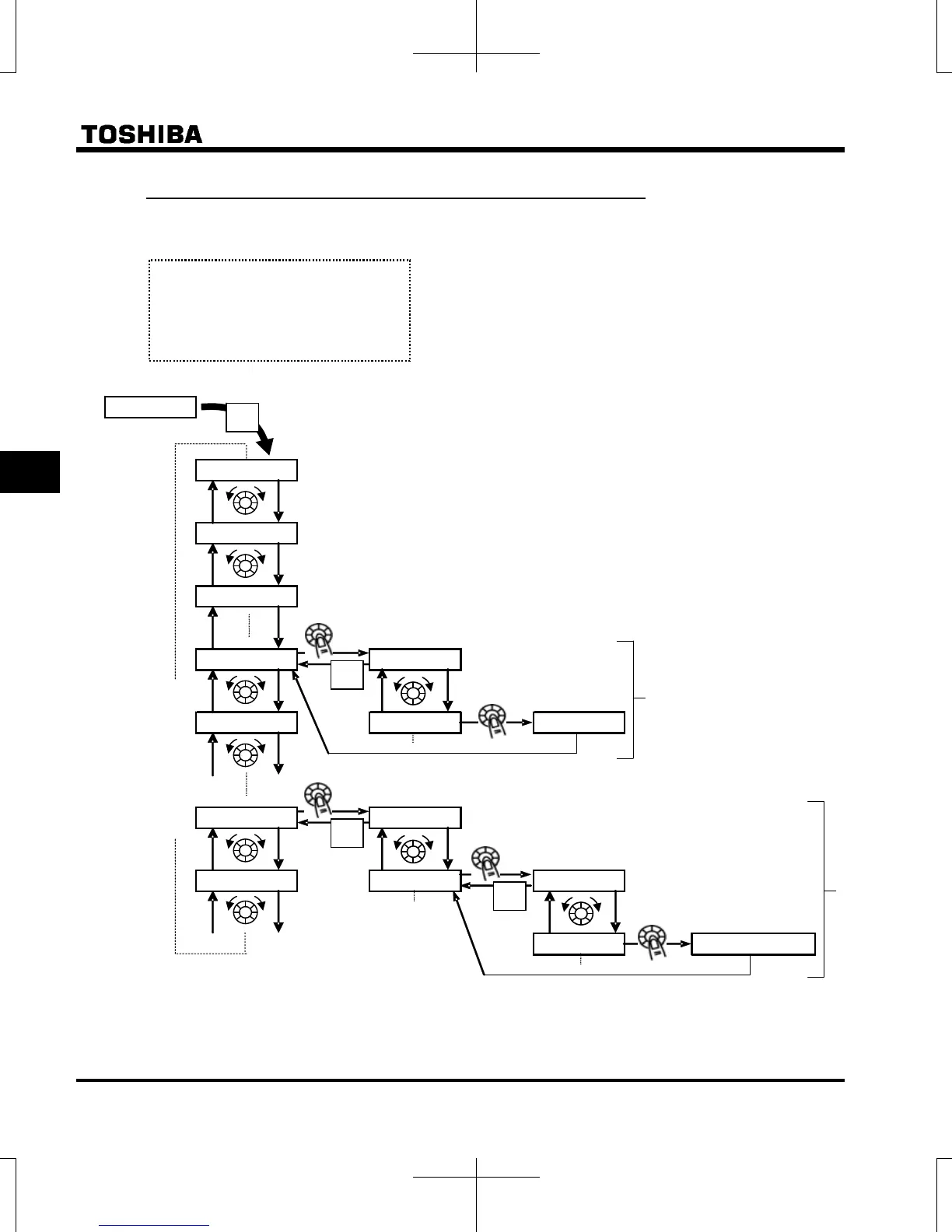

4.2.2 Settings in the Standard setting mode
The inverter enters this mode by pressing the MODE key when the Standard setting mode is selected.
 How to set basic parameters
(1) Select parameter to be changed. (Turn the setting dial.)
(2) Read the programmed parameter setting. (Press the center of
the setting dial.)
(3) Change the parameter value. (Turn the setting dial.)
● To switch to the Easy setting mode, press the EASY key in the Standard monitor mode. easy is displayed, and
the mode is switched.
When you are unsure of something
during operation:
You can return to the Standard monitor
mode by pressing the MODE key
several times.




 
  
⇔

 
  
 
⇔

y
Standard parameters
*
MODE
MODE
MODE
MODE
Standard monitor mode
* Parameter title and the setting
value are displayed alternately
(1)
(3)
(2)
(4)
*
(5)
(7)
(6)
(8)
(9) (10)
Basic parameter setting
Extended parameter setting
(4) Press this key to save the parameter value.
(Press the center of the setting dial.)

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
