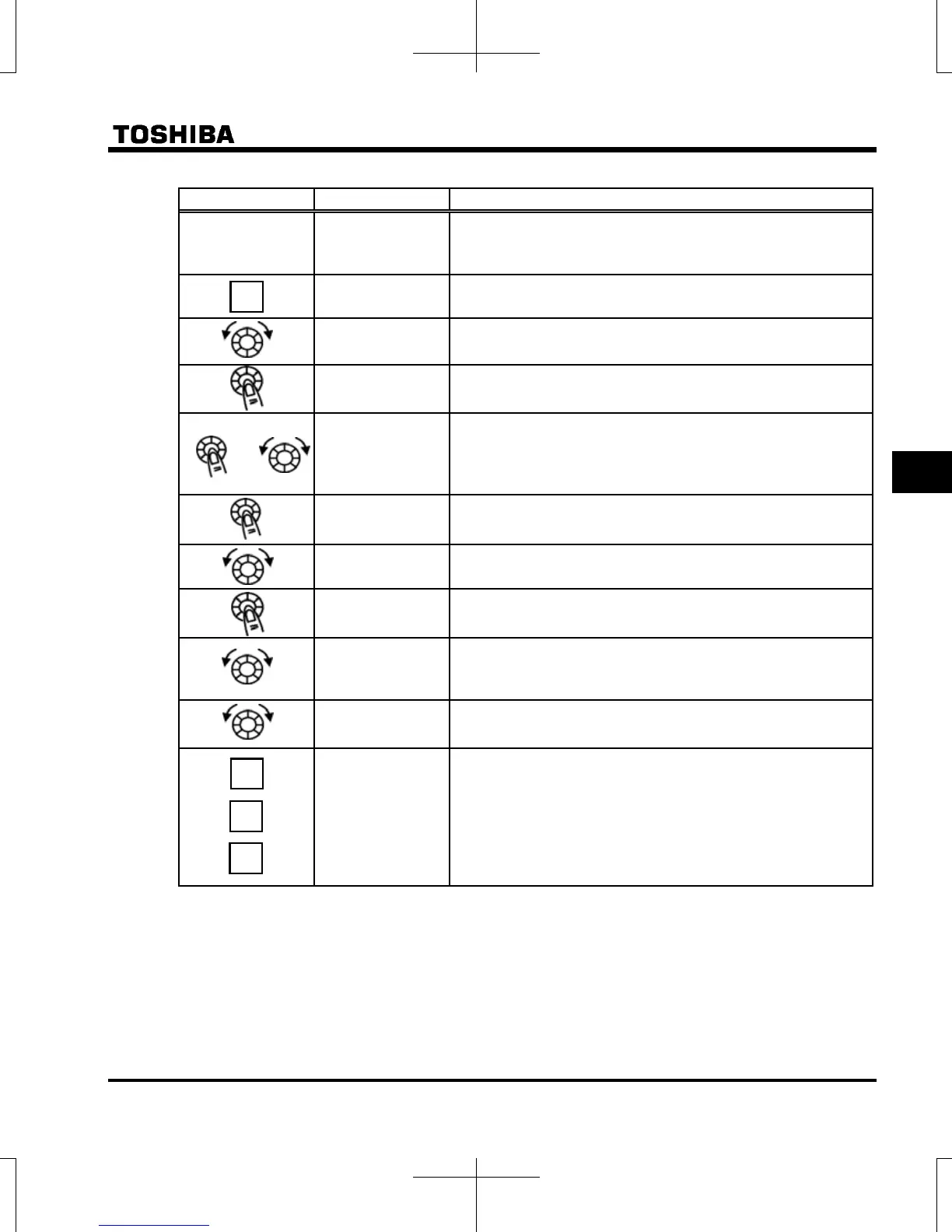

 How to search and reprogram parameters
Panel operation LED display Operation
00
Displays the output frequency (operation stopped).
(When standard monitor display selection is set as f710=0
[output frequency])
auh
Displays the first basic parameter "History function (auh)."
gru
Turn the setting dial, and select gru.
u
Press the center of the setting dial to enter the user parameter setting
change search mode.
or
acc
Searches for and displays parameters different to the default settings.
Parameters are changed by either pressing the center of the setting
dial or turning it to the right. (Turning the setting dial to the left
searches for parameter in the reverse direction.)
80
Press the center of the setting dial to display set values.
50
Turn the setting dial, and change set values.
50 acc
Press the center of the setting dial to set values. The parameter name
and set value light alternately and are written.
uf
(ur)
Use the same steps as those above and turn the setting dial to
display parameters to search for or whose settings must be changed,
and check or change the parameter settings.
gru
When gru appears again, the search is ended.
Parameter display

gru

frf

00

A search can be canceled by pressing the MODE key. Press the key
once while the search is underway to return to the display of
parameter setting mode. Returns to the gru display.
After that press the MODE key and return to the status monitor mode
or the standard monitor mode (display of output frequency).
MODE
MODE
MODE
MODE

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
