Chapter 2 Configure Touch P5 as a Router
30
4 ) Tap Save.

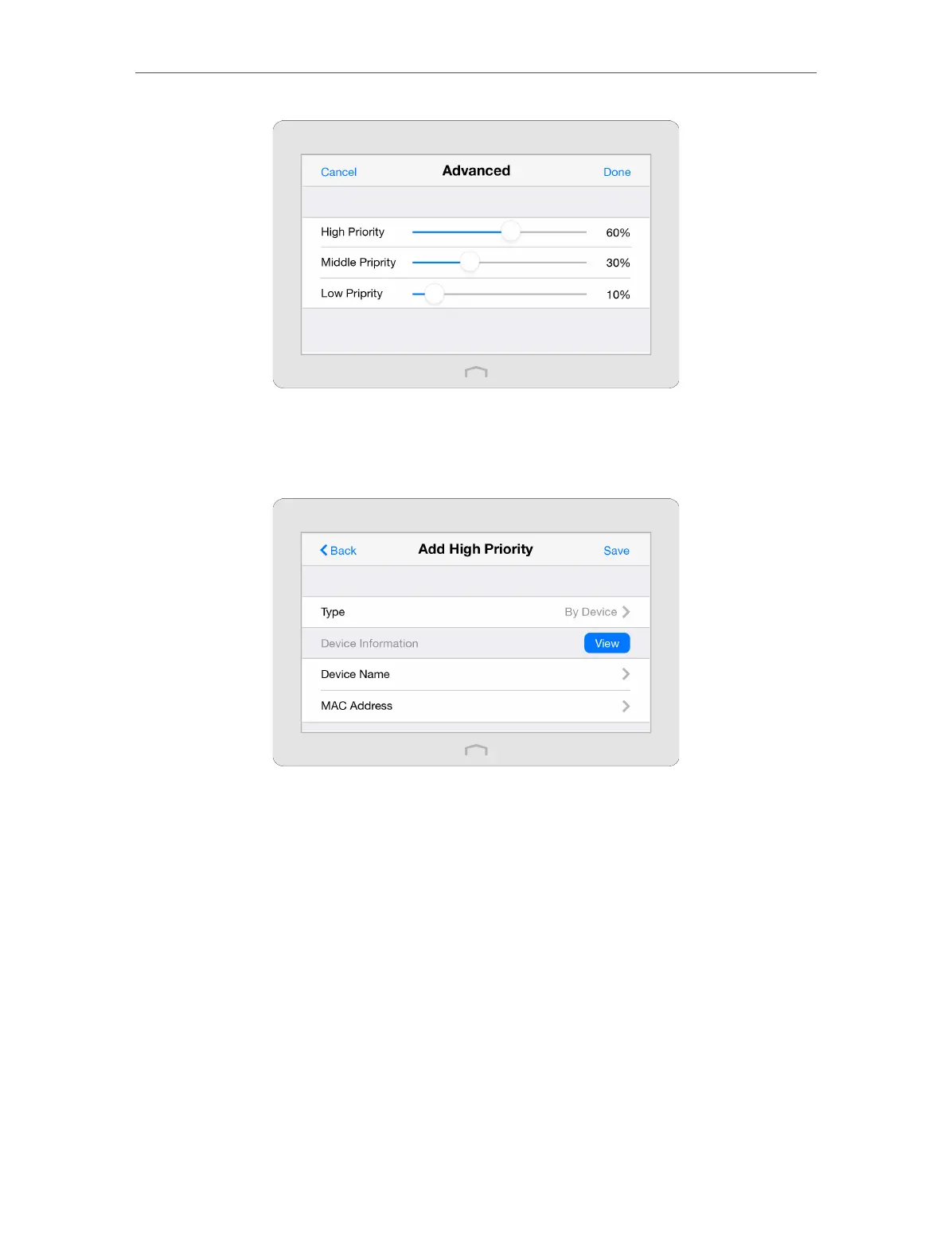

3. Return to the home screen of QoS, and select High, Middle or Low Priority to Add
the rules. Here we use High Priority as an example.
4. Select By Device or By Application as the rule type.
5. If By Device is selected, tap View to choose the respective device. If the device is not
listed, enter the Device Name and MAC Address manually.
If By Application is selected, tap Application to select the corresponding application.
If the application is not listed, tap Custom Application to enter below application
parameters manually.
• Name: Type in a name for your application.
• Protocol: Select the protocol for your application, if you are not sure, select ALL.
• Port: Enter the destination port for your application. Usually each application
has a fixed port, so please ensure you enter the correct port.
6. Tap Save. The QoS rule will be listed in the priority table.
