Installation of Pull-Tester

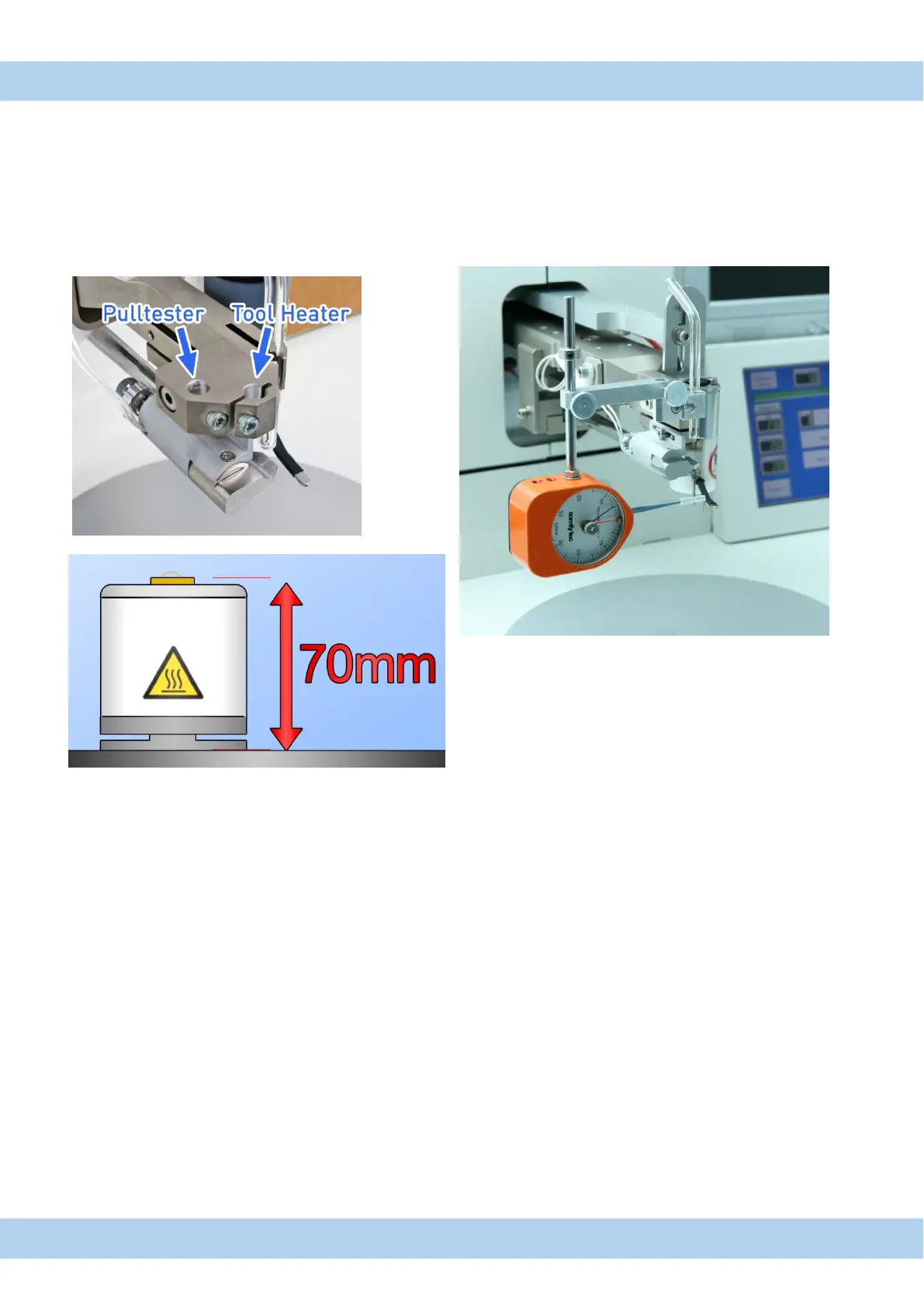

1. Mount the pull-tester like shown on the pictures
2. The pull-hook has to be adjusted close below the bonding tool.
3. Set height from stage to 70mm.
4. Machine settings Set Bondtype to "Pull Tester" Mode
3. Operation of Pull Tester with manual-Z (HB10/HB16) or Z lever (HB05)
1. The pull-hook is moved with H51 manual-Z (HB10/HB16 only) or the Z lever (HB05).
2. Move it below your wire bond
3. Then move carefully up until the wire breaks.
4. Now you can read the breaking load at the force gauge. The unit is grams.
5. Finally reset clock by returning the red pointer back to zero.
