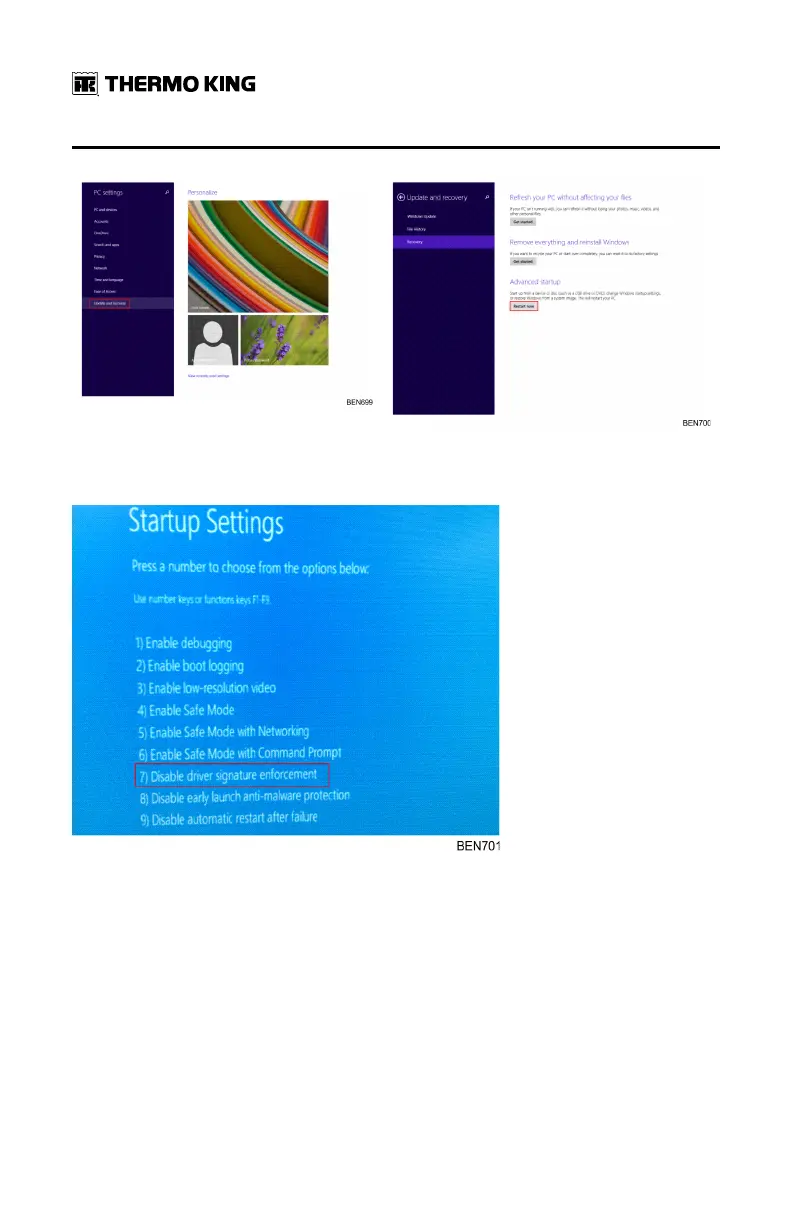

4. During restart the startup settings appears – Disable the driver signature

enforcement by pressing option 7 shown below.

5. During Driver installation select Install this driver software anyway.
