Unit Components
Note: The control panel side of the unit is always
designated as the front side of the unit. The left side
of the unit is referred to as referred to as Side 1 and
the right side of the unit is referred to as Side 2.

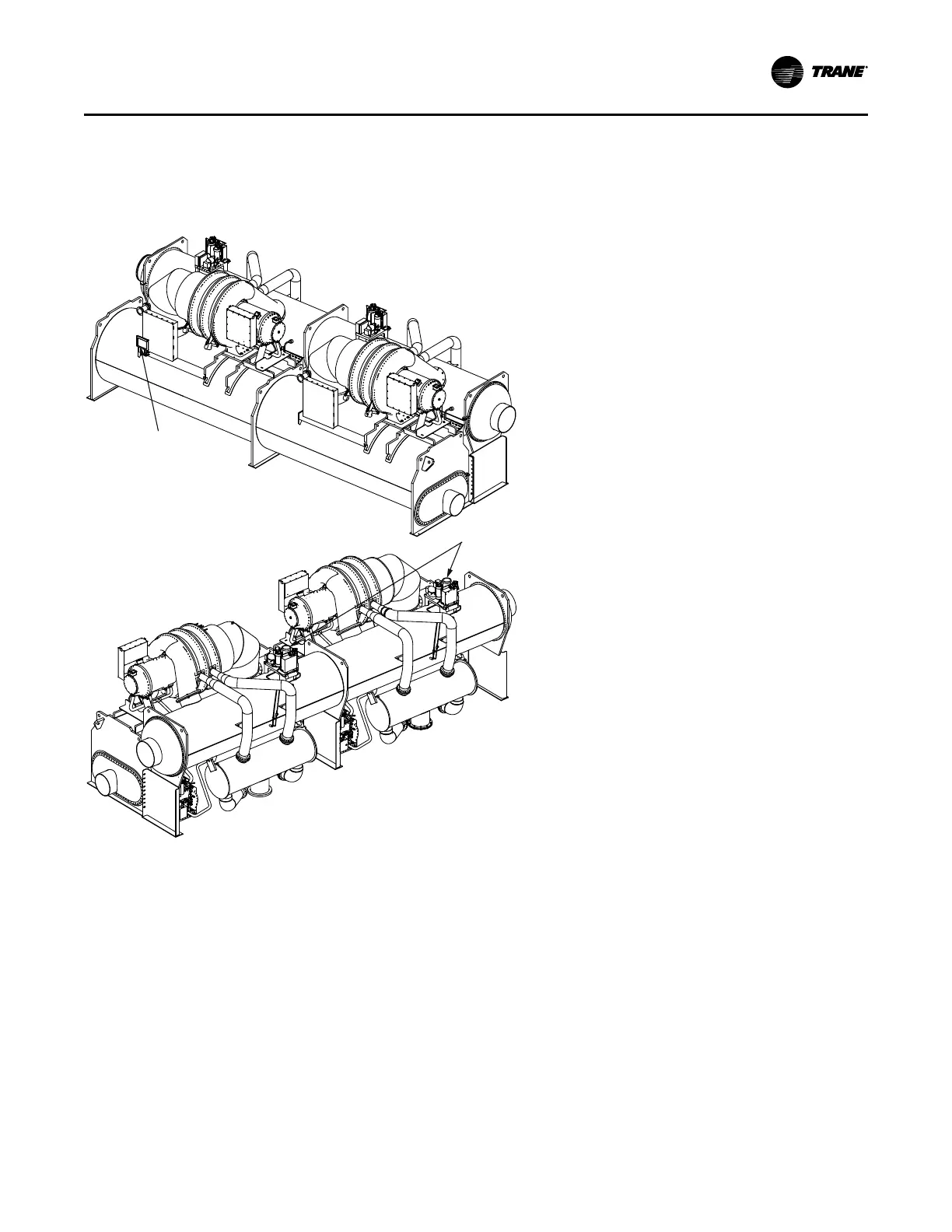

Figure 6. Typical Duplex™ CDHH CenTraVac™ chiller
1
2
3
4
5
7
8
9
0
-
0
1
3
4
2
7
6
5
6
8
1. Suction Elbow
2. Compressor
3. Terminal Box
4. Control Panel
5. Condenser
6. Motor Housing
7. Economizer
8. Oil Tank Assembly
9. Purge
10. Evaporator
11. Display Panel
