CDHH-SVX003C-EN
Wi-Fi
For installation instructions, see BAS-SVN042*-EN, Trane
®
Wi-Fi Module Installation Instructions.
Recommended routing from Wi-Fi module to Symbio™ 800
using factory provided mounting provision is shown in
figure below. Device can be remote mounted in order to
obtain a stronger signal.

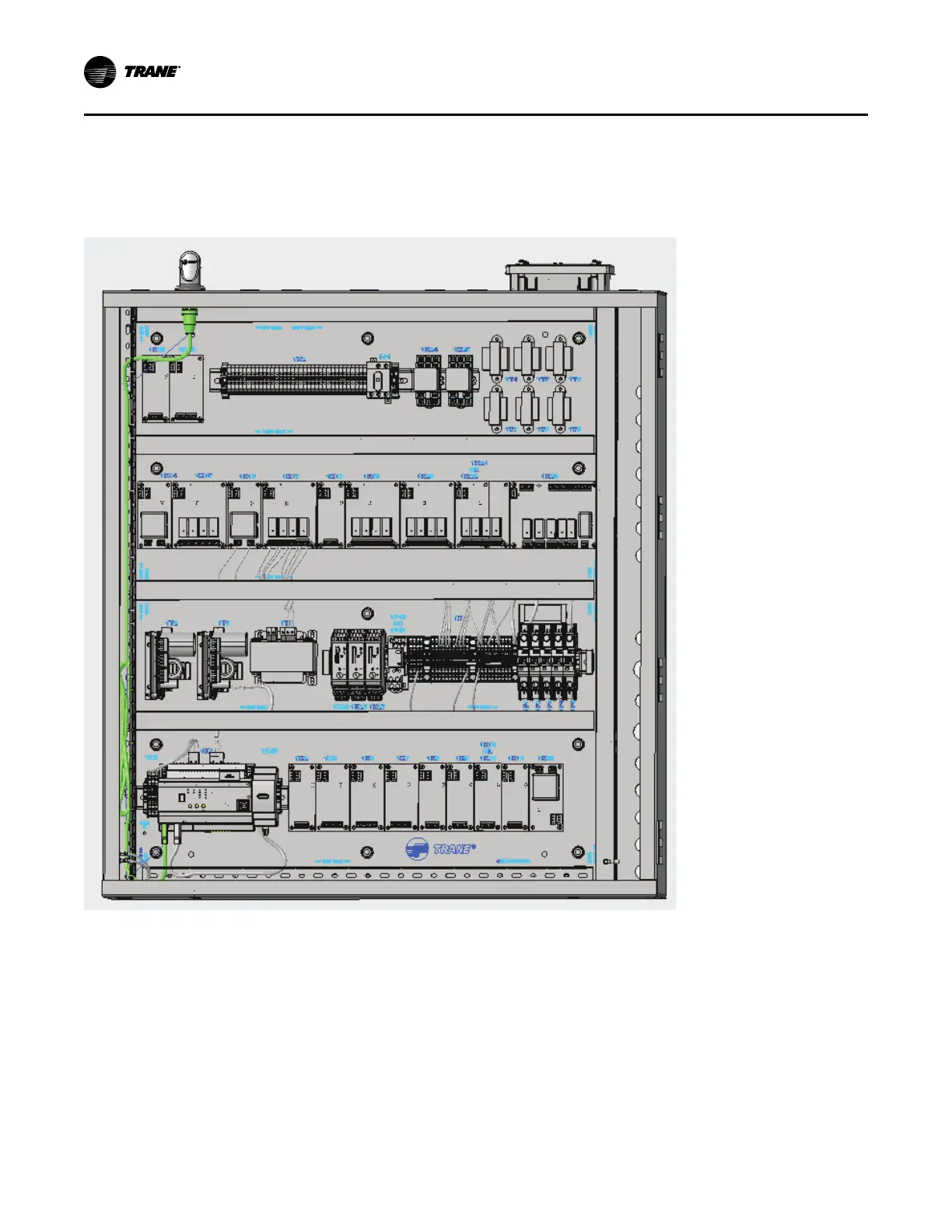

Figure 39. Wi-Fi wire harness routing path
Installation: Controls
