4. Position isolator pads or spring isolators beneath the
chiller feet (refer to “Unit Isolation,” p. 23 for
instructions).Follow instructions provided by the spring
isolator manufacturer, being careful to not damage
isolator adjustment screw.
5. Once the isolators are in place, lower the chiller—
working from end to end—in small increments to
maintain stability.
6. When lift is complete, detach the rigging shackles and
safety chain.

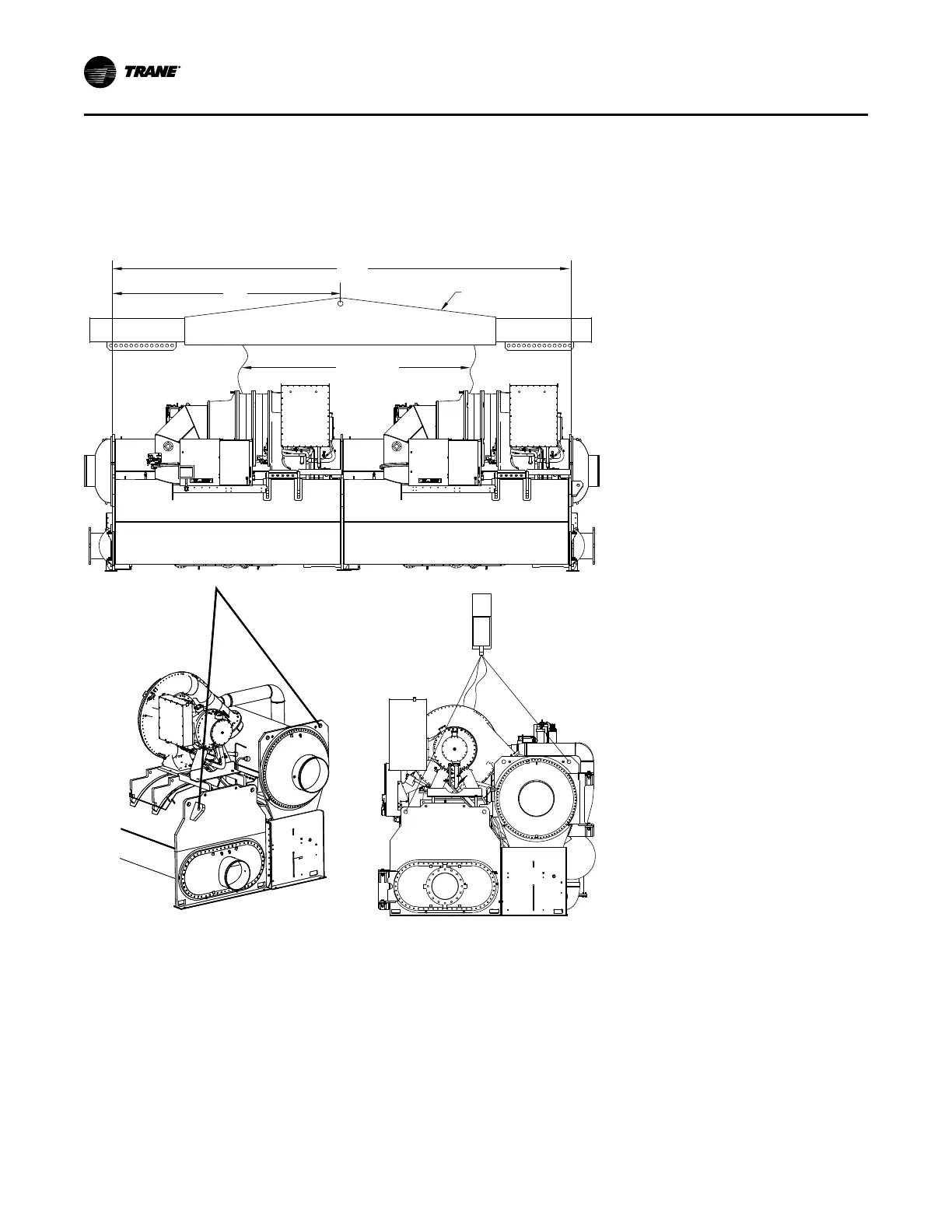

Figure 8. Typical rigging arrangements
Y
X
Lifting
beam
Safety
chain
H
A
Note: Use lifting lug if present.
