Triumph Rocket 3 R User Manual

Instruments
46
• Press the joystick center to confirm
the required selection.
•
The display will then return to the
Bike Setup menu.

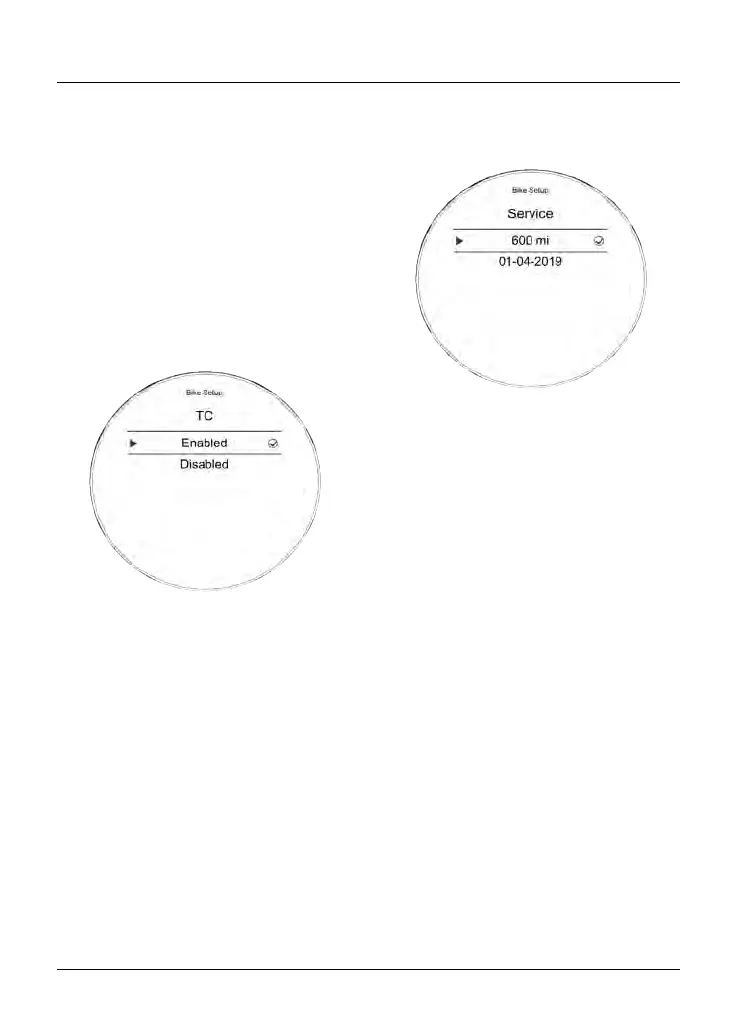

Bike Setup - Traction Control (TC)
It is possible to temporarily disable the
traction control system. The traction
control cannot be permanently disabled,
it will be automatically enabled when the
ignition is turned off and then on again,
or if the default riding mode is activated
by a long press of the MODE button.
To select the required option:
• From the Bike Setup menu, push the
joystick down to select TC and press
the joystick center to confirm.
•
Push the joystick down/up to scroll
between Enabled and Disabled.
•
Press the joystick center to select
the required option.
•
The display will then return to the
Bike Setup display.
Bike Setup - Service
The service interval is set to a distance
and/or time period.
To review the service interval:
• From the Bike Setup menu, push the
joystick down to select Service and
press the joystick center to confirm.
•
The service time and distance
information are then shown.

Triumph Rocket 3 R Specifications

General

Displacement	2458 cc
Bore x Stroke	110.2 mm x 85.9 mm
Compression Ratio	10.8:1
Max Torque	221 Nm @ 4, 000 rpm
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	Shaft
Gearbox	6-speed
Swingarm	Single-sided, cast aluminium
Front Tyre	150/80 R17 V
Rear Tyre	240/50 R16 V
Seat Height	773 mm
Dry Weight	291 kg
Wheelbase	1677 mm
Engine Type	Liquid-cooled, DOHC, inline 3-cylinder
Max Power	165 hp (123 kW) @ 6000 rpm
Exhaust	Stainless steel 3 into 1 headers with 3 exit silencer
Clutch	Hydraulic, torque assist
Frame	Full aluminium frame
Front Suspension	Showa 47 mm upside-down
Rear Suspension	Showa monoshock with piggyback reservoir, adjustable
Front Brakes	Brembo Stylema® 4-piston radial monobloc calipers
Rear Brakes	Brembo 4-piston monobloc caliper
Front Wheel	17 x 3.5 in
Rear Wheel	16 x 7.5 in
Fuel Tank Capacity	18 L
Instrument Display	TFT multi-functional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, ambient temperature, clock and rider modes
