Maintenance
107
Clutch
The motorcycle is equipped with a ca-
ble-operated clutch.
3
2 - 3 mm
2
1

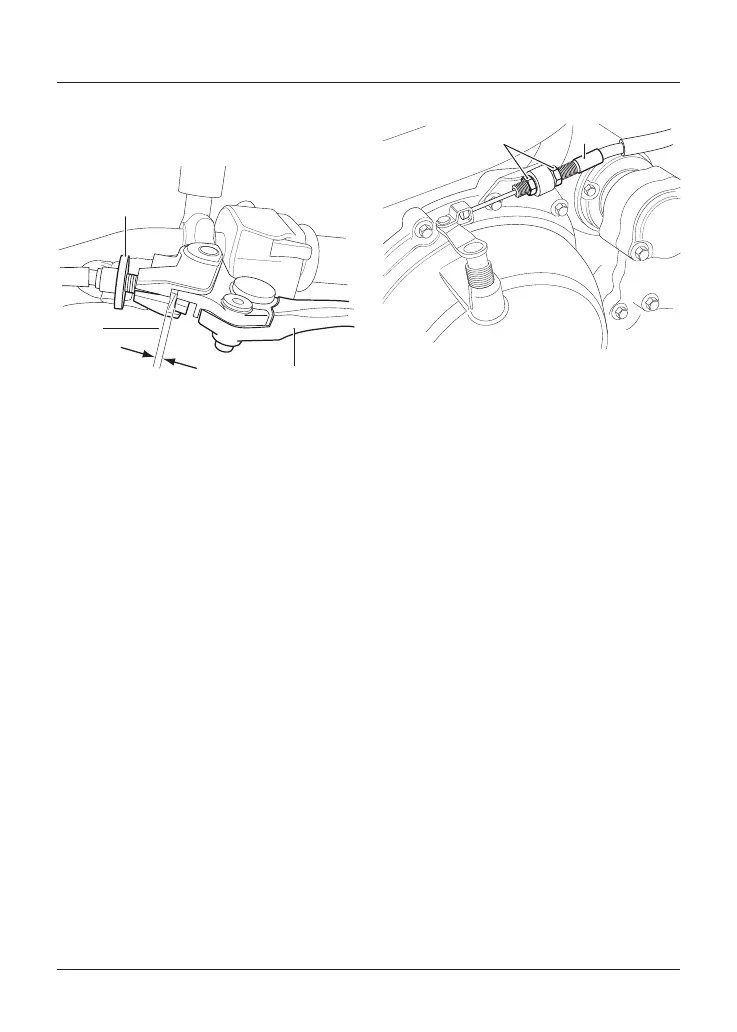

1. Correct setting 2 - 3 mm
2. Adjuster
3. Clutch lever
If the clutch lever has excessive free
play, the clutch may not disengage fully.
This will cause difficulty in changing
gear and selecting neutral. This may
cause the engine to stall and make the
motorcycle difficult to control. Con-
versely, if the clutch lever has
insufficient free play the clutch may not
engage fully, causing the clutch to slip,
which will reduce performance and
cause premature clutch wear.
Clutch lever free play must be checked
in accordance with scheduled mainte-
nance requirements.
Clutch Inspection
Check that there is 2 - 3 mm clutch le-
ver free play at the lever.
If there is an incorrect amount of free
play, adjustments must be made.
Clutch Adjustment
1 2
1. Adjuster
2. Clutch cable
To adjust the clutch:
Turn the adjuster on the clutch le-
ver until the correct amount of
clutch lever free play is achieved at
all steering angles.
If correct adjustment cannot be
made using the clutch lever adjust-
er, use the cable adjuster at the
lower end of the cable.
Loosen the adjuster locknut.
Turn the outer cable adjuster to
give 2 - 3 mm of free play at the
clutch lever.
Tighten the locknut.
