Clutch Lever
1
3
2
4
3
2
1

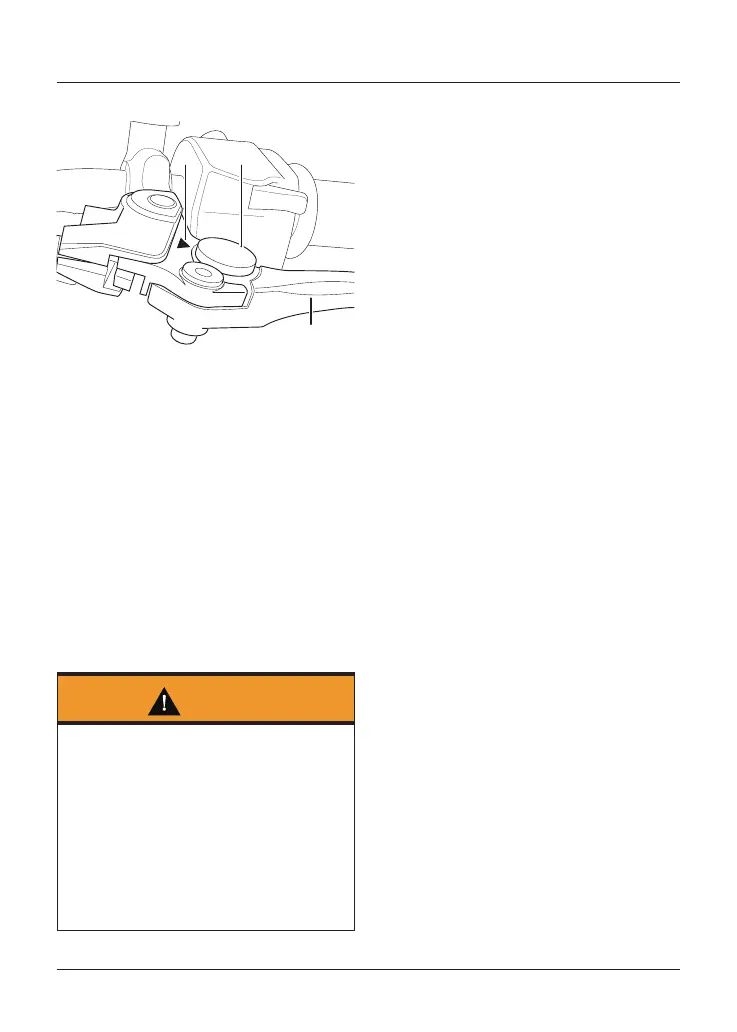

1. Triangular mark
2. Adjuster wheel
3. Clutch lever
To adjust the clutch lever:
• Push the lever forward and turn
the adjuster wheel to align one of
the numbered positions with the
triangular mark on the lever holder.
• The distance from the handlebar
grip to the released lever is short-
est when set to number four and
longest when set to number one.
Throttle Control
Warning
Always be alert for changes in the ’feel’
of the throttle control and have the
throttle system checked by an author-
ised Triumph dealer if any changes are
detected. Changes can be due to wear
in the mechanism, which could lead to
a sticking throttle control.
A sticking or stuck throttle control will
lead to loss of motorcycle control and
an accident.
The motorcycle has an electronic throt-
tle twist grip to open and close the
throttles. There are no direct-acting ca-
bles in the system and no adjustments
can be made.
Check that the throttle opens smoothly,
without undue force and that it closes
without sticking.
Check that there is 1 - 2 mm of throttle
grip free play when lightly turning the
throttle grip back and forth.
If there are any changes or an incorrect
amount of free play, then have your au-
thorised Triumph dealer check the
throttle system.
If there is a malfunction with the throt-
tle control the Malfunction Indicator
Light (MIL) becomes illuminated and one
of the following engine conditions may
occur:
• MIL illuminated, restricted engine
RPM and throttle movement
• MIL illuminated, limp-home mode
with the engine at a fast idle condi-
tion only
• MIL illuminated, engine will not
start.
For all of the conditions mentioned con-
tact an authorised Triumph dealer as
soon as possible to have the fault
checked and rectified.
