Maintenance
135

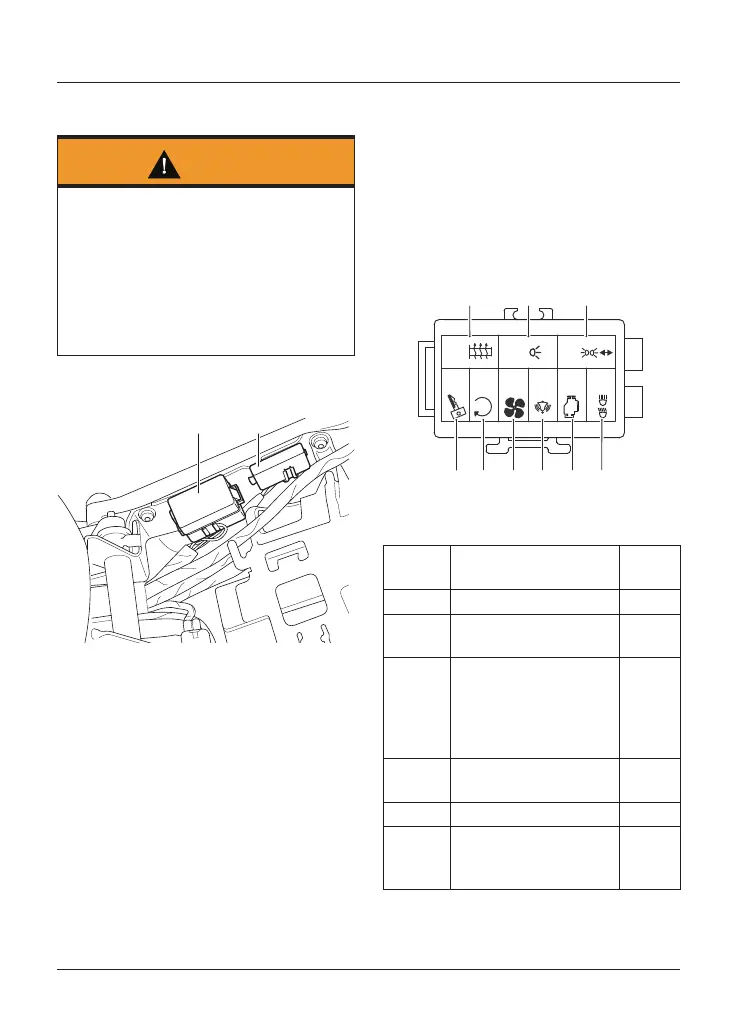

Fuse Boxes
Warning
Always replace blown fuses with new
ones of the correct rating (as specified
on the fuse box cover) and never use a
fuse of higher rating.
Use of an incorrect fuse could lead to
an electrical problem, resulting in mo-
torcycle damage, loss of motorcycle
control and an accident.
The two fuse boxes are located under
the seat.
1
2
1. Front fuse box
2. Rear fuse box
Fuse Identification
A blown fuse is indicated when all of the
systems protected by that fuse become
inoperative. When checking for a blown
fuse, use the tables to establish which
fuse has blown.
The fuse identification numbers listed in
the tables correspond with those print-
ed on the fuse box cover, as shown.
Spare fuses are located at right angles
to the main fuses and should be re-
placed if used.
Front Fuse Box
10A
20A
10A
15A
5A
5A
10A
10A
20A
98 7
1
2
3
4 56
Fuse Box
Position Circuits Protected Rating
(Amps)
1 Heated Grips (if fitted) 5
2 Rear Light, License
Plate Light
5
3 Horn, Direction Indi-
cators, Daytime
Running Lights (DRL)
(if fitted) and Instru-
ments
10
4 Dipped and High
Beam Headlights
20
5 Engine ECM 20
6 Alarm, Electronic
Steering Lock
(Speed Triple RS Only)
10
