Triumph Speed Triple RS User Manual

General Information
19

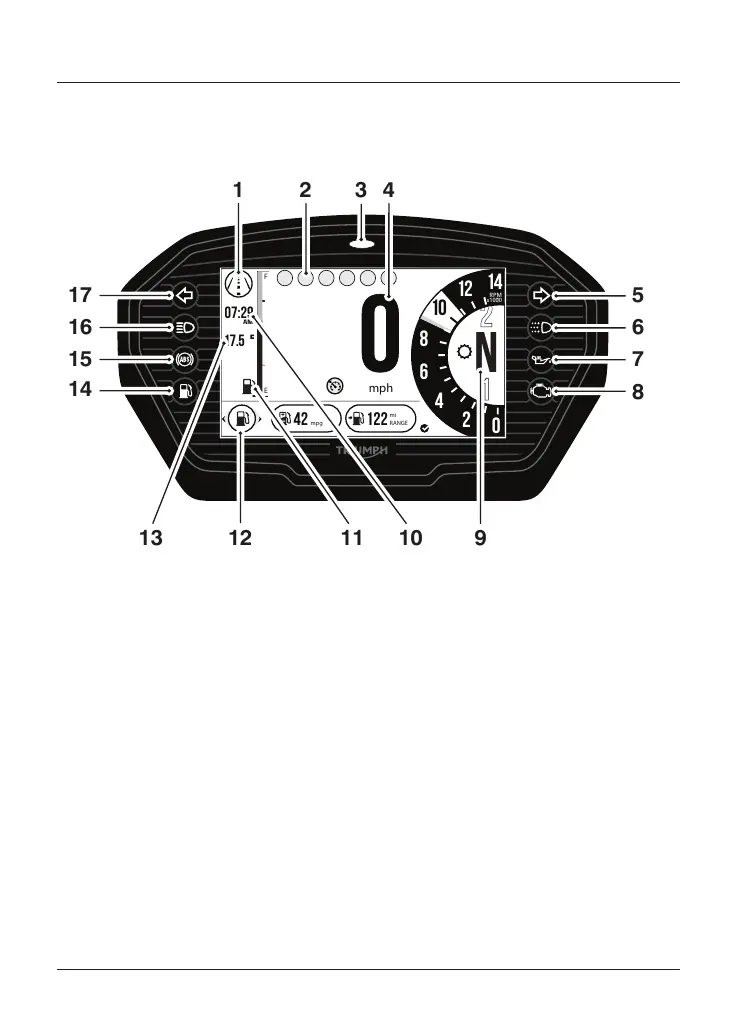

Instrument Panel Layout
The Thin Film Transistor (TFT) instrument display is fitted on all models. Not all in-
strument features are available on all models.
o7:29
17.5
8
6
N
4
2
0
12
14
F
E
AM
RPM
x1000
mph
42 122
mi
RANGE
mpg
10
17
16
15
14
5
6
7
8
2
1113
1
10
34
9
12
1. Current riding mode
2. Warning lights
3. Alarm/immobiliser status indicator
light (alarm is an accessory kit)
4. Speedometer
5. Right hand indicator
6. Daytime Running Light (DRL)
(if fitted)
7. Oil pressure warning light
8. Engine management Malfunction
Indicator Light (MIL)
9. Gear position symbol
10. Clock
11. Fuel gauge
12. Information tray
13. Ambient air temperature
14. Fuel level low warning light
15. ABS warning light
16. High beam warning light
17. Left hand indicator

Triumph Speed Triple RS Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, inline 3-cylinder
Engine Capacity	1160 cc
Max Torque	125 Nm @ 9, 000 rpm
Transmission	6-speed
Seat Height	830 mm
Weight	198 kg (wet)
Max Power	180 PS (132.4 kW) @ 10, 750 rpm
Rear Suspension	Ohlins TTX36 twin tube monoshock, fully adjustable
Front Brakes	Brembo Stylema, 320 mm twin disc
Rear Brakes	Brembo single piston caliper, single 220 mm disc
Fuel Tank Capacity	15.5 litres
Front Suspension	Öhlins 43mm NIX30 upside down forks, fully adjustable
