Maintenance
138
Headlight Adjustment - Vertical
The vertical beams of the left and right
hand headlights can only be adjusted
together. Independent adjustment is
not possible.

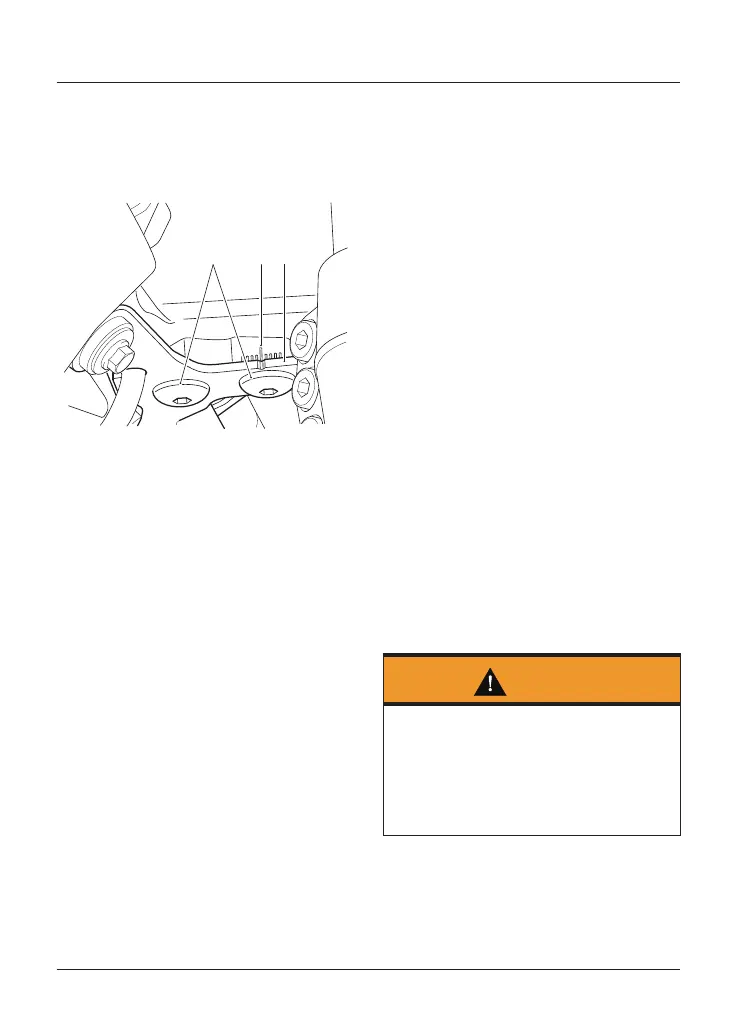

1
2
3
1. Bolts
2. Front subframe alignment marks
3. Headlight bracket
To adjust the vertical headlight beam:
Switch the headlight dipped beam
on.
Loosen the two bolts securing the
headlight bracket to the front sub-
frame sufficiently to allow
restricted movement of the head-
lights.
Using the headlight bracket mark
and the alignment markings on the
front subframe, adjust the position
of the headlights to give the re-
quired beam setting. Each mark on
the subframe represents 1°.
Moving the bracket forwards moves
the headlight downwards. Moving
the bracket rearwards moves the
headlights upwards.
Tighten the headlight bracket bolts
to 7 Nm.
Recheck the headlight beam set-
tings.
Switch the headlights off when the
beam settings are satisfactorily set.
Headlight Bulb Replacement
Warning
The bulbs become hot during use. Al-
ways allow sufficient time for the bulbs
to cool before handling.
Avoid touching the glass part of the
bulb. If the glass is touched or gets
dirty, clean with alcohol before reuse.
