UniPOS FS5200E User Manual

UniPOS Fire Extinguishing Control Panel FS5200Е
Instruction Manual Page 15
Revision 7/06.12 of 63
+ -
FS5200E
1N5401
Exting
V
Rv - < 30 Ohms
3k/
0.25W
1N4004
valve
Electromagnetic

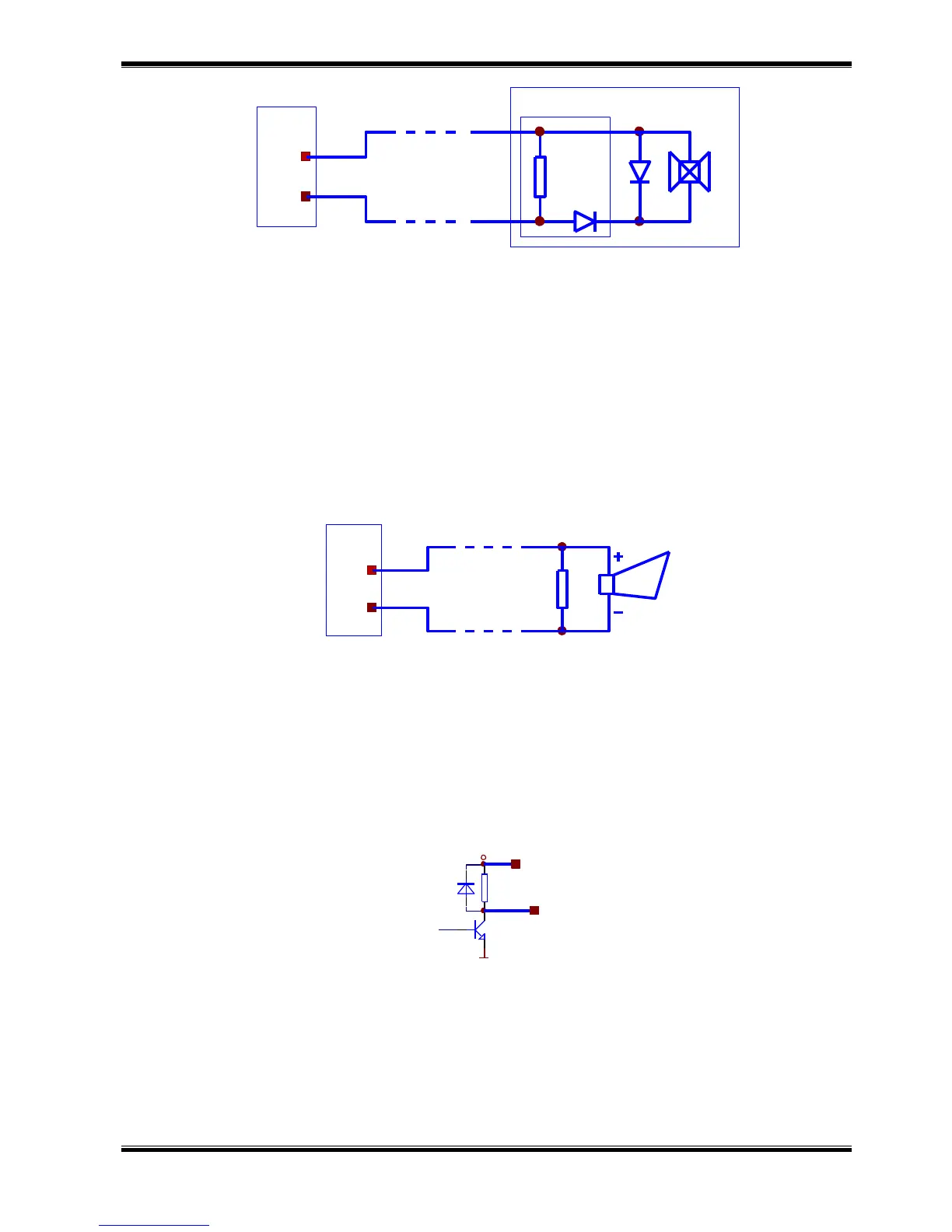

Drawing 8
Upon the output activation the supplied voltage (24±3)V is with load-carrying capacity of 1.5А.
The time for output activation could be set from 2 to 255 seconds from menu System functions >
Set up > Extinguishing time and it depends on the type of the used executive device. The default
setting is 10 seconds.
4.2.8. Description and mounting of devices to Sounder S1 and Sounder S2 outputs
Connect a two-wire line to the Sounder output for connection with sound and light signaling
devices. The line is balanced and it is monitored for interruption and short circuit. Install a resistor
3kΩ/0.25W to the signaling device terminals to monitor the condition (Drawing 9).
- Sx +
FS5200E
Sounder
3k/
0.25W
Drawing 9
Upon the outputs activation the supplied voltage (24±3)V is with load-carrying capacity of 0.5А.
The outputs are activated for Fire condition stage I and Fire condition stage II, respectively.
The fire extinguishing control panel provides the option for Sounder S1 output disable from menu
System functions > Disables > Disable S1 output .
4.2.9. Description and mounting of devices to outputs OK1, OK2 and OK3 open
collector type
OKx outputs send a signal to relays, LEDs and other devices to follow and monitor the fire
extinguishing control panel condition. The outputs are not monitored for the line status.
47k
GND
28V
OKx
+28V
Drawing 10
Upon activation of the outputs GND potential is supplied with load-carrying capacity of 0.1А.
The internal diagram of output Open collector type is presented on the drawing (Drawing 10).
4.2.10. Description and mounting of devices to Rel Fire output
Rel Fire is a potential free, relay output. The logic of the contact - Normally Open or Normally
Closed could be adjusted by means of a jumper. The output is not monitored. The output is activated
in Fire condition along one or both fire detecting lines.
