9.2. Indication
9.2.1. LED and sound indication
Upon Fault battery low LED indicator is not activated. The local sounder produces a
discontinuous signal (sound for 1s, followed by 3s break). The LCD display illumination is off.
All other fault conditions are designated by indicator (Fault condition), illuminating in
continuous yellow light. Depending on the specific fault, the following indicators are illuminated too:
Upon System error - indicator (System error) in flashing yellow line;
Upon Fault in a monitored line - indicator (Fault – short circuit or monitored line
interruption) in continuous yellow light;
Upon Fault in mains supply or Backup battery supply - indicator (Fault in mains supply)
in continuous yellow light;
Upon Fault in the extinguishing device or Extinguishing agent release - indicator (Fault
low pressure) in continuous yellow light;
The local sounder produces a discontinuous signal. If the sound indication is suppressed by button
(Alarm),the LED indicator of the button illuminates in continuous red light.
9.2.2. Text messages
The fault conditions messages are displayed by priority as given in section 9.1.
The fatal system errors screens suppress all other messages. If more than one non-fatal faults
are registered, they are indicated by priority as the message with the highest priority suppresses the
rest of the fault messages.
Upon registration of a Fault condition, the relay REL Fault is activated, as it closes contact NO
and opens contact NC.
When the fire extinguishing control panel enters Fire condition the messages for Fault conditions
are suppressed. To view the suppressed messages enter Information and Control Mode.

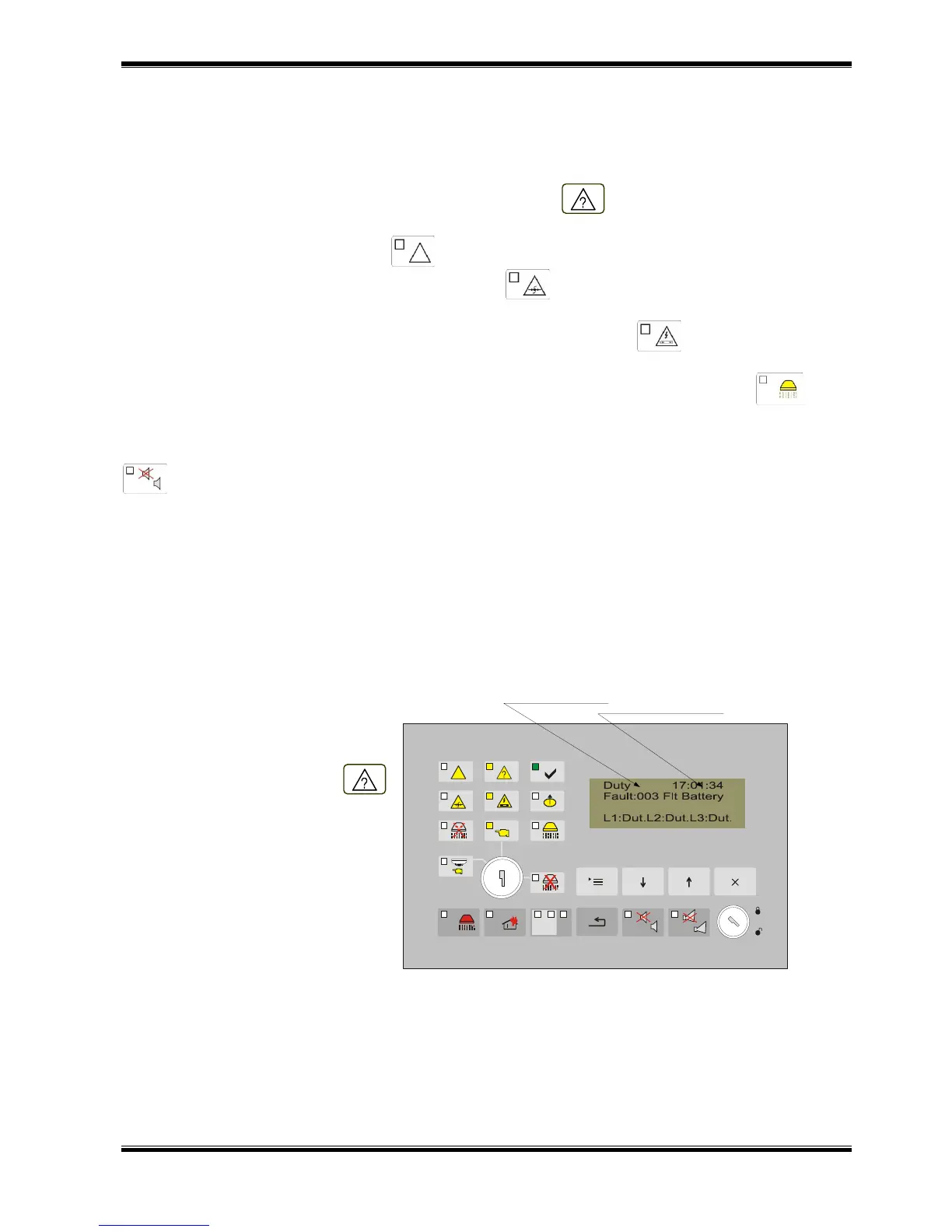

Upon registration of a Fault
condition the fire extinguishing
control panel displays the respective
light indication and text messages:
- the common indicator
for fault condition is
illuminated
- the specialized indicator
showing the type of the fault
condition is illuminated;
- the total number of faults
and the type of the specific
fault are visualized on the
display;
