Аppendixes
Appendix 1
1 2 3
1
2
3 4 5 6 7 8 9
10
11
12
13 14 15 16 17 19 20
22 242321
18

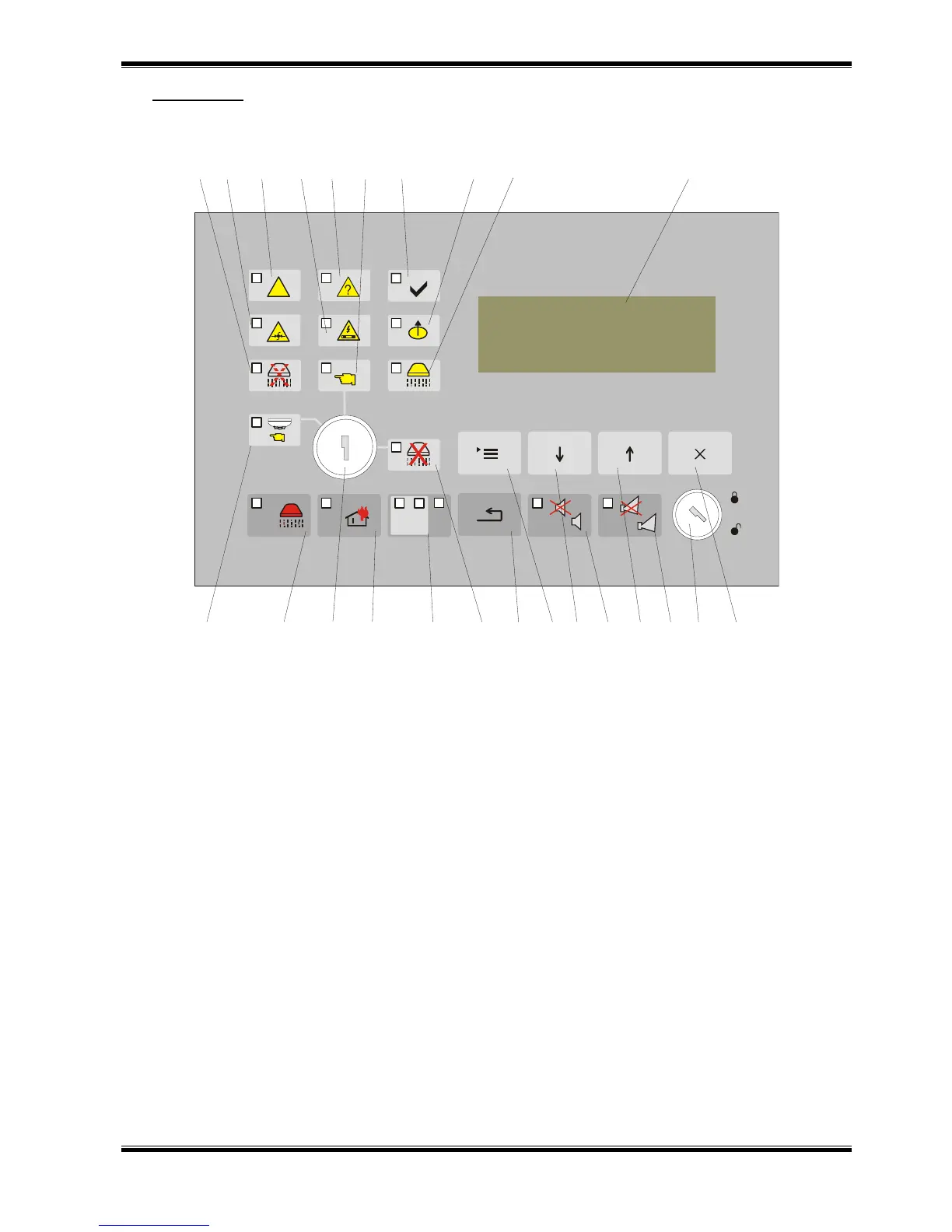

Front panel of fire extinguishing control panel FS5200E
1 Indicator Hold extinguishing
2 Indicator Fault in a circuit of signal wires
3 Indicator System Error
4 Indicator Fault in power supply
5 Common Indicator Fault Condition
6 Indicator Manual Mode
7 Indicator Power Supply
8 Indicator Disabled Component
9 Indicator Low Pressure
10 LCD display (4х20)
11 Indicator Automatic Mode
12 Indicator Fire condition stage II – Extinguishing
13 Switch – Automatic / Manual / Disable
14 Indicator Fire condition stage I
15 Individual indicators of the Fire detecting lines
16 Indicator Disable extinguishing
17 Button Reset
18 Button Menu
19 Button Down
20 Button Alarm with indicator Stop alarm
21 Button Up
22 Button Outputs with indicator Suppressed outputs
23 Switch – Access level
24 Button Cancel
