UniPOS Fire Extinguishing Control Panel FS5200Е
Instruction Manual Page 25
Revision 7/06.12 of 63

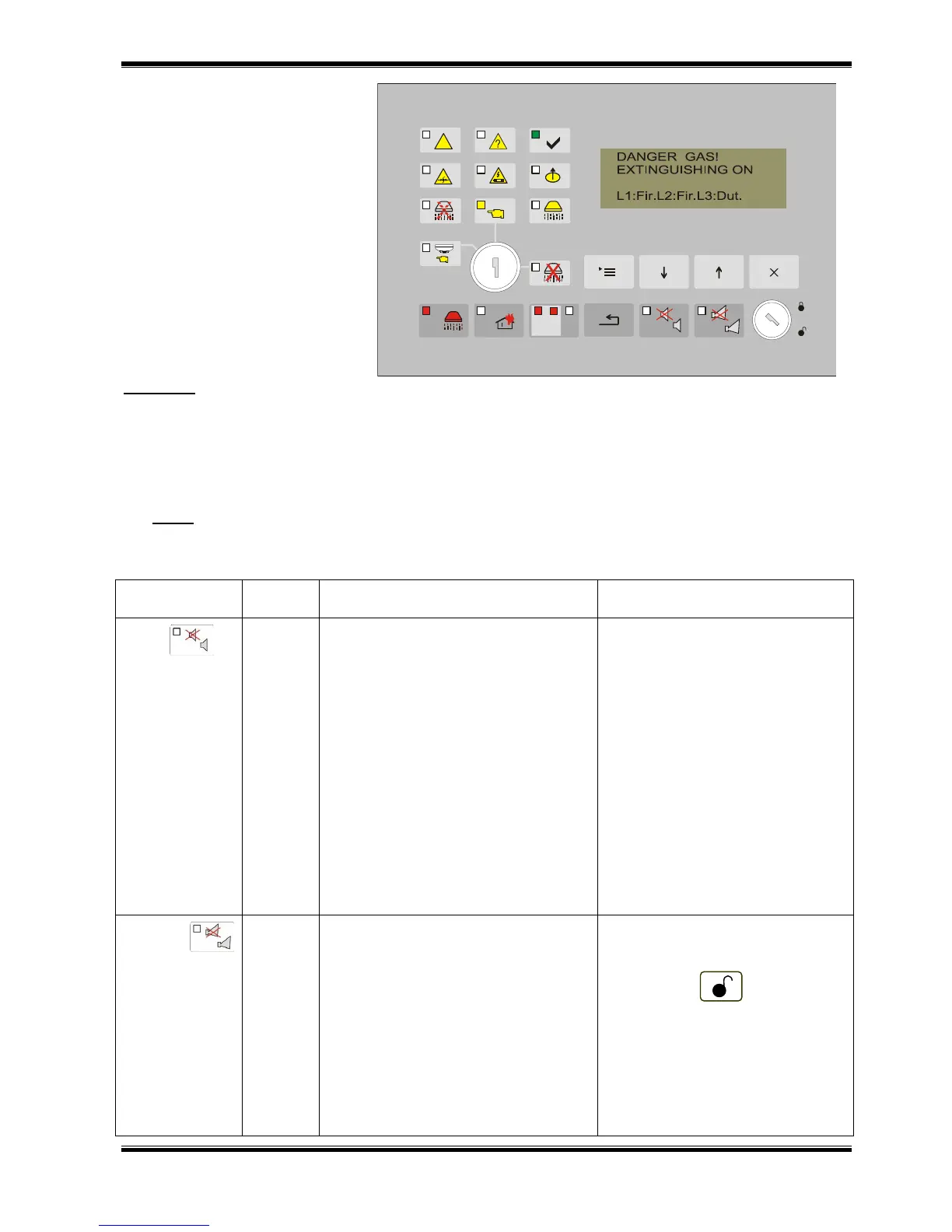

The display shows:
The message ATTENTION
GAS! and EXTINGUISHING ON
indicating that the extinguishing
agent is released.
Information for the current status
of the lines:
This indication could be
suppressed by the screens in
Fire condition. The suppressed
messages could be displayed in
Information and Control Mode.
1 2 3
Example: Fire condition along line 1 and line 2. The fire extinguishing control panel is in phase to
start extinguishing procedure. The indicator for Fire condition Stage II illuminates in continuous red
light. The individual indicators for line 1 and line 2 are illuminated too. The display shows warning
messages and the condition of the fire detecting lines. The local sounder produces continuous signal.
Potential free relays Rele 2St and Rele Fire are activated. Voltage 28V DC is supplied to the outputs
S2 and Exting. .
Note: The entry of the fire extinguishing control panel in Fire condition along a new line (e.g. the
3
rd
one) is indicated by the standard sound and light indication and text messages.
8.3. Using the keypad
Button
Access
level
Operation
Additional information
Button
(Alarm)
all
Press it to:
- suppress the local sounder;
- activate the local sounder if
the fire extinguishing control
panel is in Fire condition
Stage II or Fault condition
and the local sounder has
been suppressed by
previous pressing of the
same button.
The button operation is
reversive i.e. press it once to
change the current condition
alternatively – suppressed or
activated local sounder. The
LED indicator illuminates if the
active condition of the local
sounder is suppressed.
The local sounder is
activated again:
- when the fire
extinguishing control
panel enters Fire
condition long a new line;
- upon Fault condition.
Button
(Outputs)
2, 3 and
4
Press the button to
suppress/activate the fire relay
Rele Fire
Access level 2 is required to
for operation with this button. The
key on the front panel should be
in position . The button
operation is reversive i.e. press it
once to change the current
condition alternatively –
suppressed or activated outputs.
The LED indicator illuminates if
the active condition is
suppressed outputs.
