UniPOS FS5200E - Menu Input;Outputs

UniPOS Fire Extinguishing Control Panel FS5200Е
Instruction Manual Page 55
Revision 7/06.12 of 63
13.4.2.7. Insert the number of the automatic
fire detectors of type FD71XX, connected in
logical dependency „AND”.The inserted
number indicates how many fire detectors
should be be activated in order the control
panel to enter Fire Condition 2
nd
Stage .
13.4.3. Menu Input/Outputs
This menu includes the setting of the following parameters:
- current of fire alarm lines
- number of checks for accepting the signal for fire condition from a fire detector
- checking the lines for removed fire detector
- setting the input Hold
- setting the input Low Press
13.4.3.1. Function Current of Fire Alarm Line

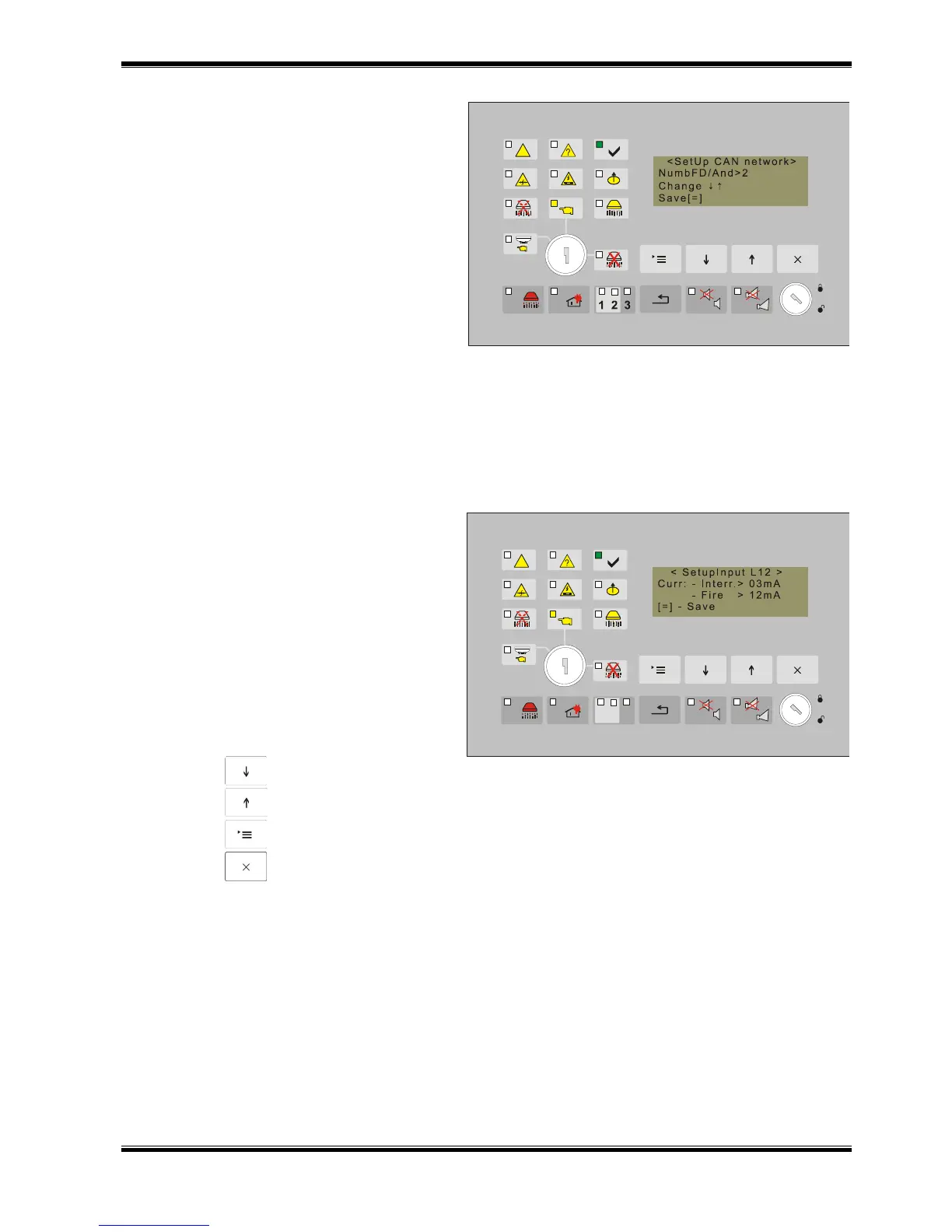

The screen provides the option to set
the current value of the fire alarm lines when
interruption and fire condition is registered.
The interruption threshold could be set within
the range 3 to 12 mA, and for fire condition –
from 12 to 60 mA. The difference between
the two conditions provides the screen for
Duty Mode.
The factory setting is 3 and 12 mA for
interruption and fire condition respectively.
The active buttons are:
1 2 3
 button – to change the character (e.g.: 03, 04 ......);
 button (Up) – to pass from setting the current of interruption to setting the current of fire;
 button (Menu) – to confirm the changes;
 button (Exit) – to exit the function.
