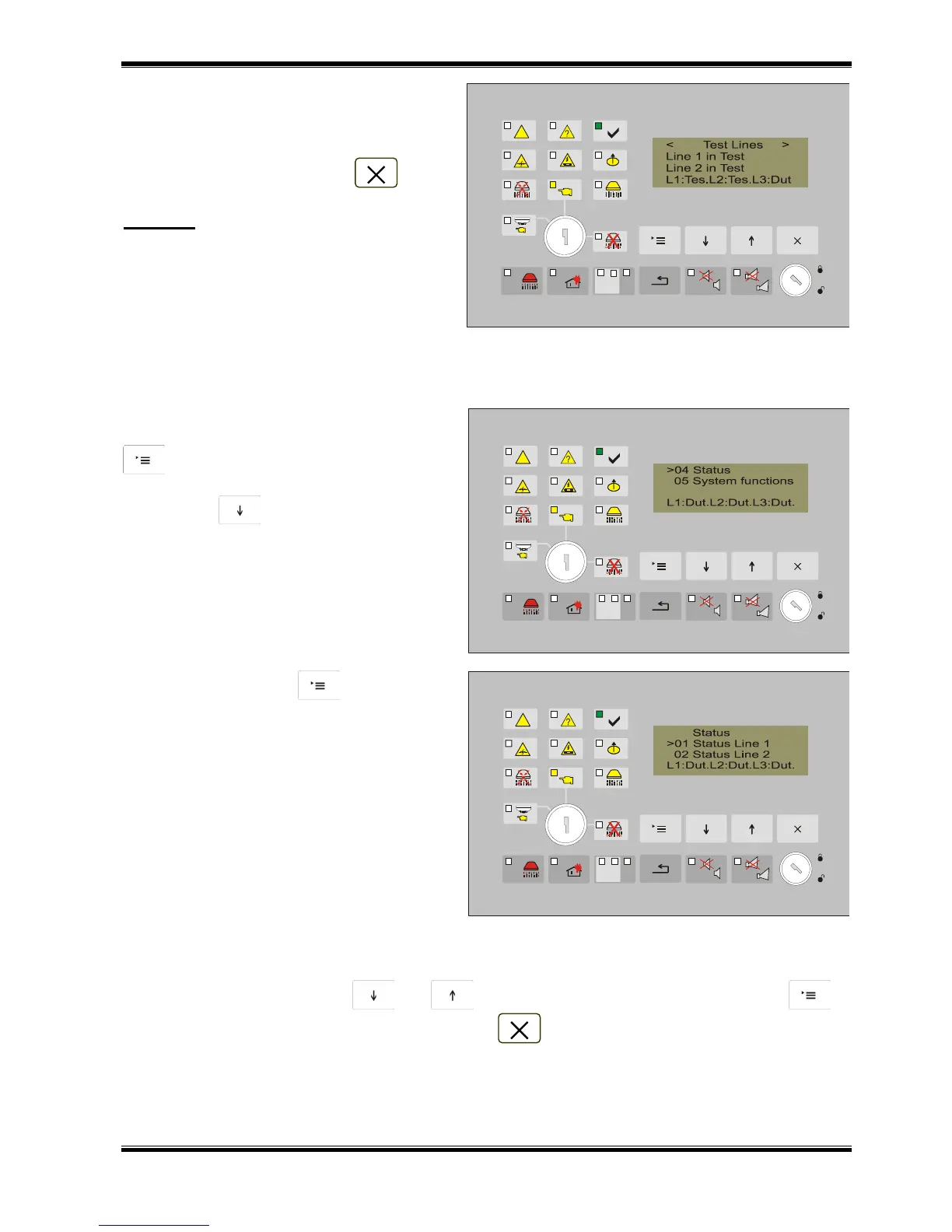

If there is/are line/lines in test, their numbers
appear on the display. Information on the
changed status is provided on the fourth line
of the display.
To exit the menu use button .
Example: The displayed screen provides
information that Line 1 and Line 2 are set to
Test Mode.
1 2 3
12.4.4. Menu Statuses
The menu contains information screen for the statuses of the fire alarm lines, the monitored
inputs and outputs. It is accessible for all Access levels.
From the current status of the fire
extinguishing control panel, press the button
to enter the main menu. The cursor „>”
is positioned at the first point of the menu.
Press button until the cursor „>” moves
to point 04 of the menu.
1 2 3
Press the button to display the
subordinate menu. It contains 11 elements,
which status could be seen:
- Line 1;
- Line 2;
- Line 3;
- ”Manual Release”;
- “Mode Select”;
- “Hold”;
- “On/Off”;
- “Low Press”;
- “Exting”;
- “Sound 1”
- “Sound 2”.
1 2 3
The cursor „>” is positioned at the first point of the subordinate menu.
The active buttons are: and for moving the cursor in the menu, button to
enter the respective point from the menu and button for exit.
