Vacon 100 X Installation, Technical And Maintenance Manual

Mounting vacon • 21
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
3
3. MOUNTING
VACON
®
100 X is the ideal solution for a decentralised installation. It is conceived to be mounted on
a wall or directly on the motor, saving space and reducing the cabling complexity. In both cases, it
must be ensured that the mounting plane is even.
3.1 Dimensions mm4

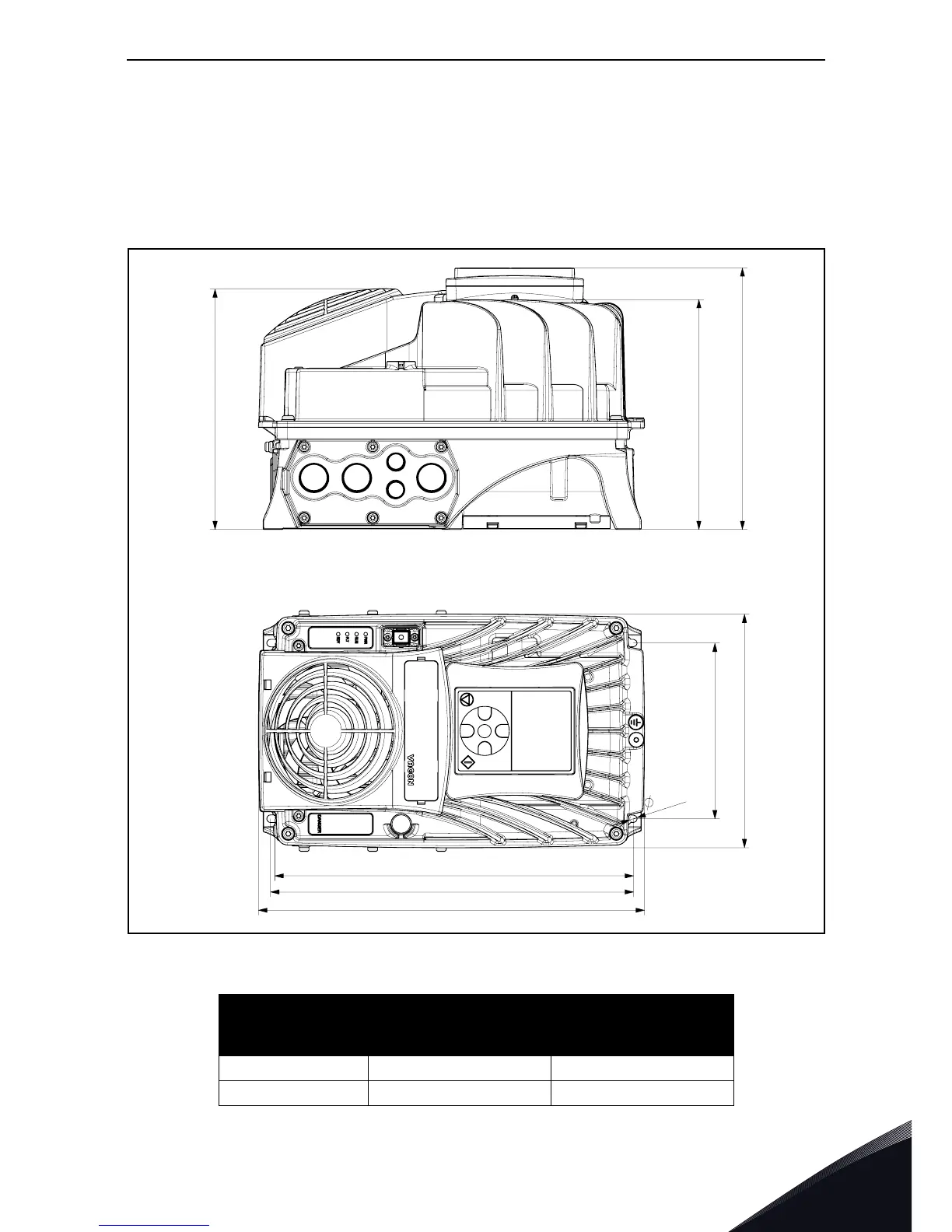

Figure 11. VACON
®
100 X drive dimensions, MM4.
Enclosure size
Dimensions W x H x D
[mm] [in]
MM4 190.7 x 315.3 x 196.4 7.51 x 12.41 x 7.73
MM4 +HMGR 190.7 x 315.3 x 213.8 7.51 x 12.41 x 8.42
315,3
190,7
187,8
213,8
293,0
296,5
5
,
9
143,5
196,4
