Vacon 100 X Installation, Technical And Maintenance Manual

Mounting vacon • 23
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
3
3.3 Dimensions mm6
Figure 13. VACON
®

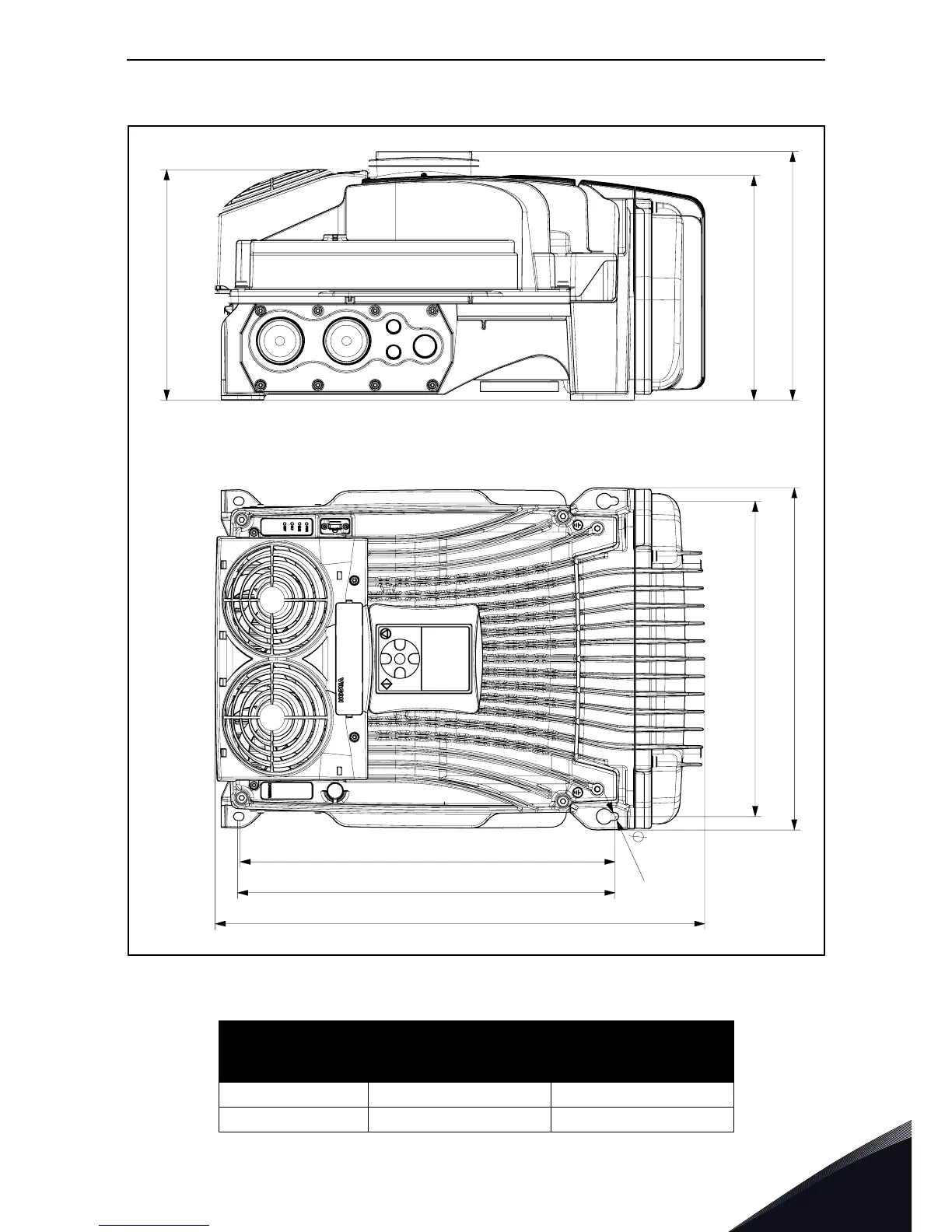

100 X drive dimensions, MM6.
Enclosure size
Dimensions W x H x D
[mm] [in]
MM6 349.5 x 499.8 x 235.4 13.76 x 19.68 x 9.27
MM6 +HMGR 349.5 x 499.8 x 254.2 13.76 x 19.68 x 10.00
229,6
254,2
322,0 349,5
382,8
385,3
499,8
8
,
2
235,4
