Power cabling vacon • 31
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
4
4.3 Description of the terminals
The following pictures describe the power terminals and the typical connections in VACON
®
100 X
drives.

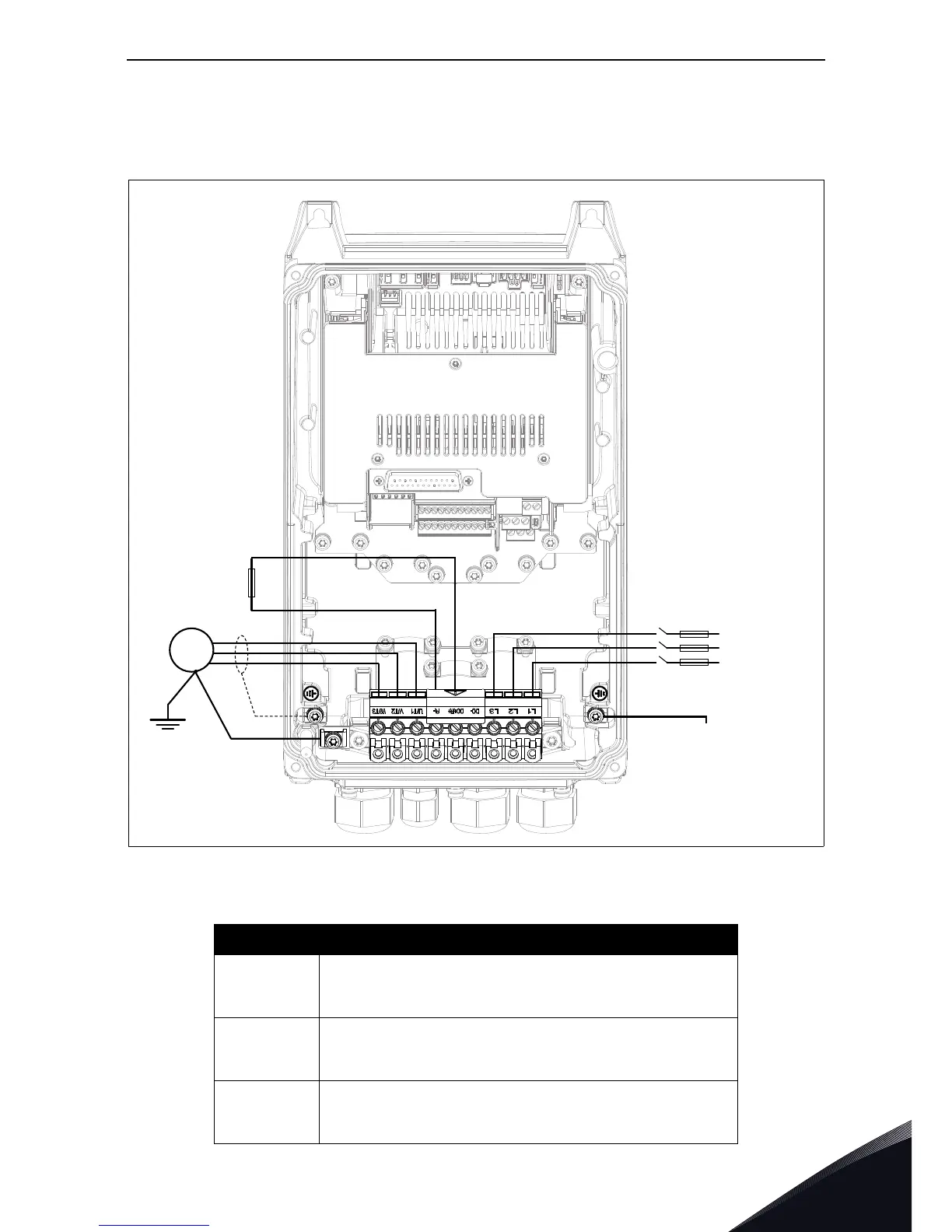

Figure 19. Power connections, MM4.
Table 13. Terminal description.
Terminal Description
L1
L2
L3
These terminals are the input connections for the power
supply.
DC-
DC+/R+
R-
DC bus terminals (DC- DC+)
and
Brake resistor terminals (R+ R-)
U/T1
V/T2
W/T3
These terminals are for motor connections.
PES
AC power supply
Three phases
PE
3AC
Motor
PE
brake
resistor
