Power cabling vacon • 39
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
4
IEC installation:

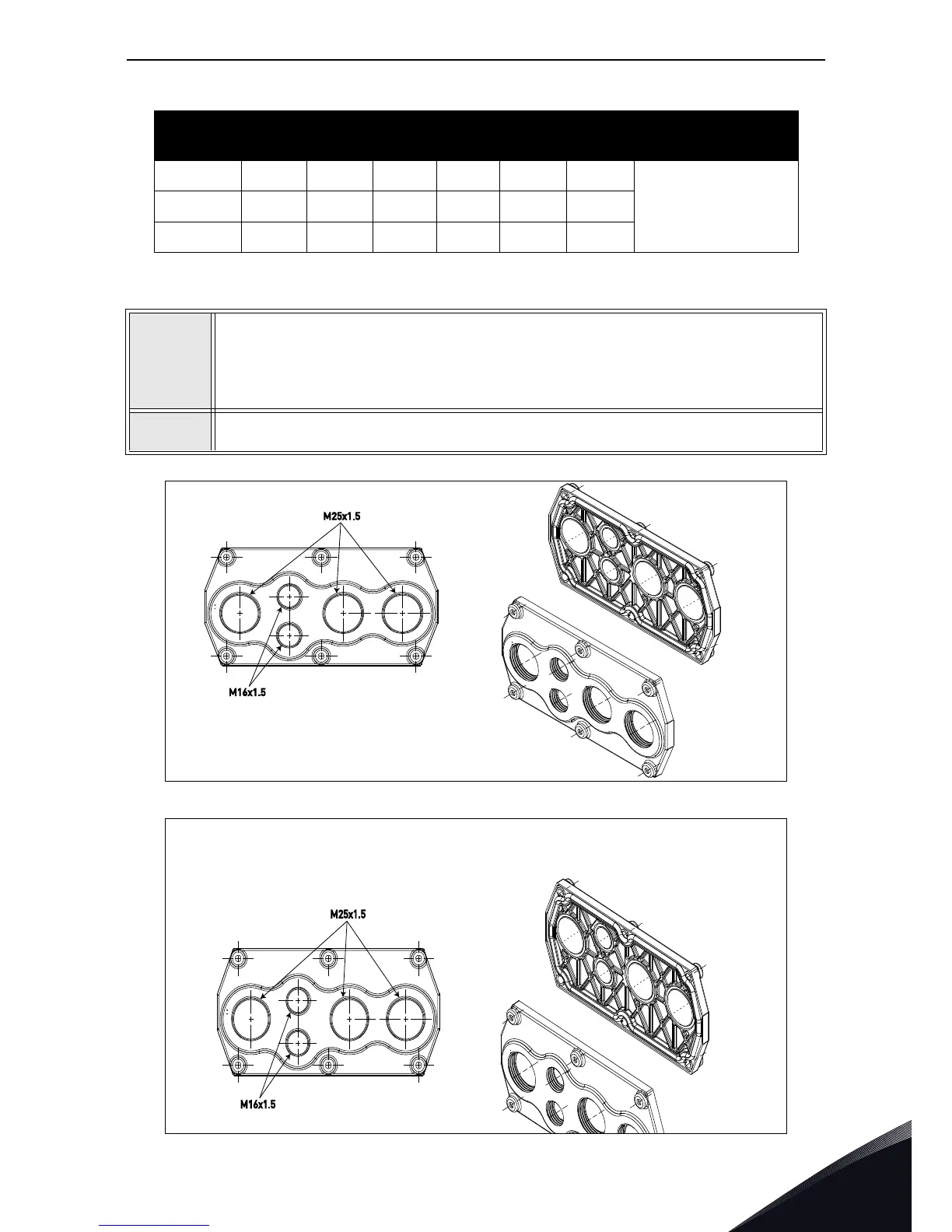

Figure 23. Cable entry plate, MM4.
Table 18. Cables stripping lengths [mm].
Enclosure
size
A1 B1 C1 D1 C2 D2 E
MM4 15 70 10 30 7 30
as short as possibleMM5 20 70 10 40 10 40
MM6 20 90 15 60 15 60
2
• Remove the cable entry plate. The cable entry system is a combination of a
cable entry plate (see the figure below) and cable glands. In the cable entry
plate there are several openings available for the cables with ISO metric
thread.
• Open only the inlet holes where you need to run the cables.
3
• Choose the correct cable glands according to drive and cable size as shown in
the following pictures.
