vacon • 218 Appendices
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/

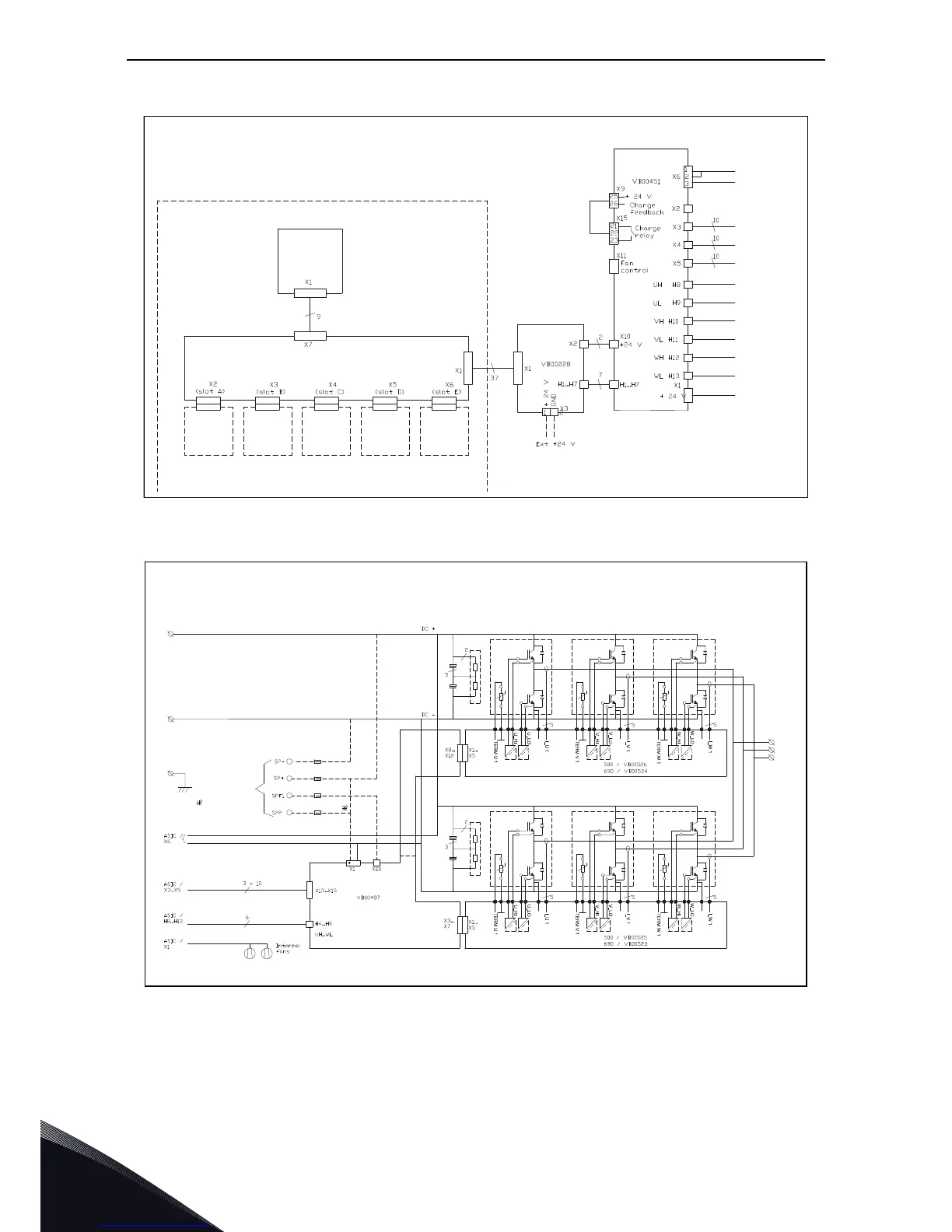

CONTROL BOARD
OPTION BOARDOPTION BOARDOPTION BOARDOPTION BOARDOPTION BOARD
CONTROL
PANEL
OPTO
ADAPTER
BOARD
CONTROL UNIT
ASIC
BOARD
DC +
DC -
DRIVER / X13
DRIVER / X14
DRIVER / X15
DRIVER / H4
DRIVER / H5
DRIVER / H6
DRIVER / H9
DRIVER / H7
DRIVER / H8
+ 24 V for
internal fans
C
H61,
INVERTER,
C
ONTROL
x)
x) Cable can be removed
if necessary
11411_uk
B+
B-
PE
MEASUREMENT BOARD 1
MEASUREMENT BOARD 2
DRIVER BOARD
MODULE RIGHT SIDE
MODULE LEFT SIDE
W / T3
U / T1
V / T2
With SPU-024 option only
X1/+: connected to B+ if
SPU-024 not in use
C
H62,
INVERTER
11412_uk
