vacon • 220 Appendices
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/
SPU-024
PE

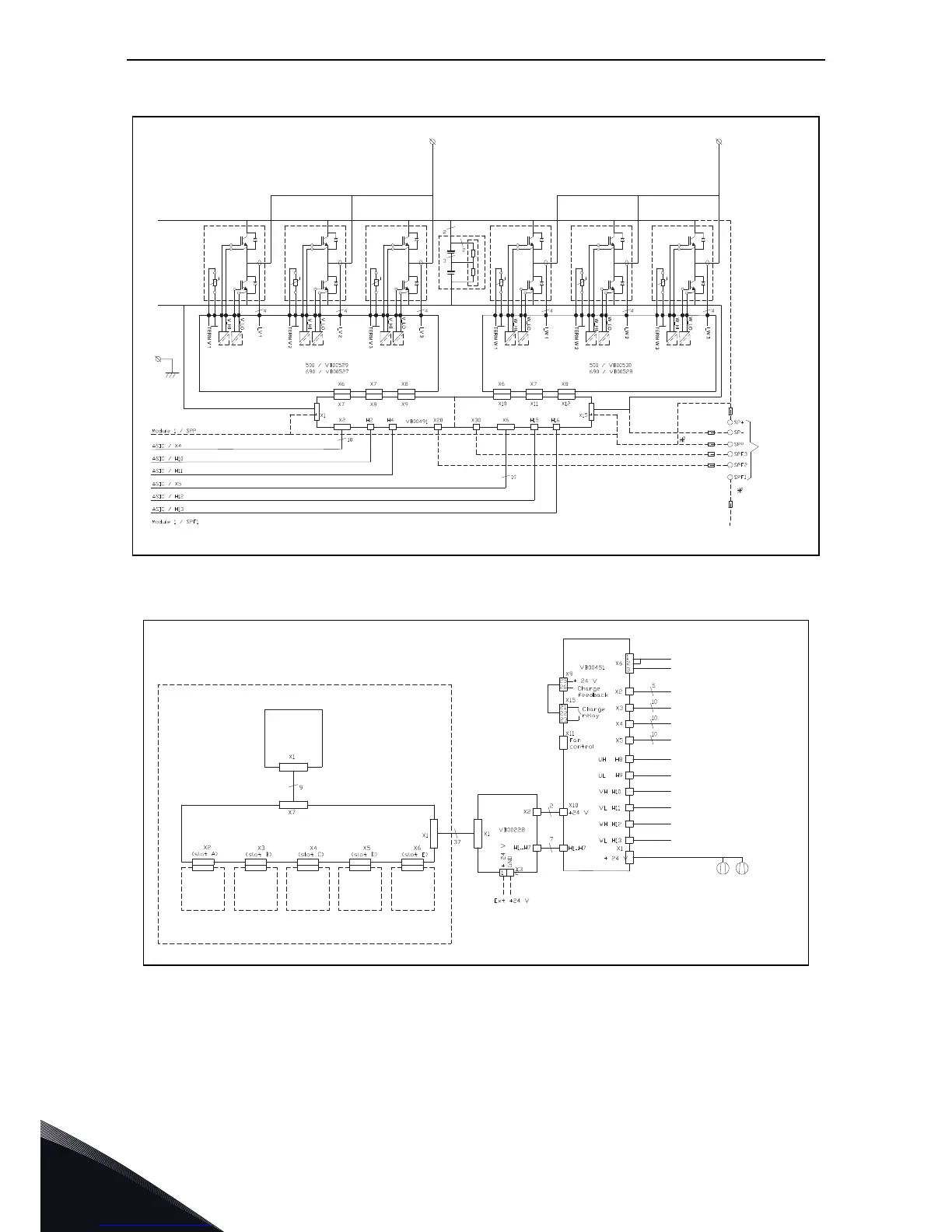

MEASUREMENT BOARD 3
W / T3
DC+
DC-
V / T2
MEASUREMENT BOARD 2
DRIVER BOARD V DRIVER BOARD W
With
option
only
X1/+ and X15/+:
connected to
DC+ if
SPU-024 not
in use
C
H63,
F
C
,
MODULE
2
11415_uk
CONTROL BOARD
OPTION BOARDOPTION BOARDOPTION BOARDOPTION BOARDOPTION BOARD
CONTROL
PANEL
OPTO
ADAPTER
BOARD
CONTROL UNIT
ASIC
BOARD
DC +
DC -
RECT / X13
DRIVER U / X6
DRIVER V / X2
DRIVER W / X6
DRIVER U / H15
DRIVER U / H16
DRIVER V / H2
DRIVER W / H16
DRIVER V / H4
DRIVER W / H15
Module 2
internal fans
C
H63, F
C
,
C
ONTROL
x)
x) Cable can be removed
if necessary
11416_uk
