5
vacon • 72 Installation
Local contacts: http://drives.danfoss.com/danfoss-drives/local-contacts/

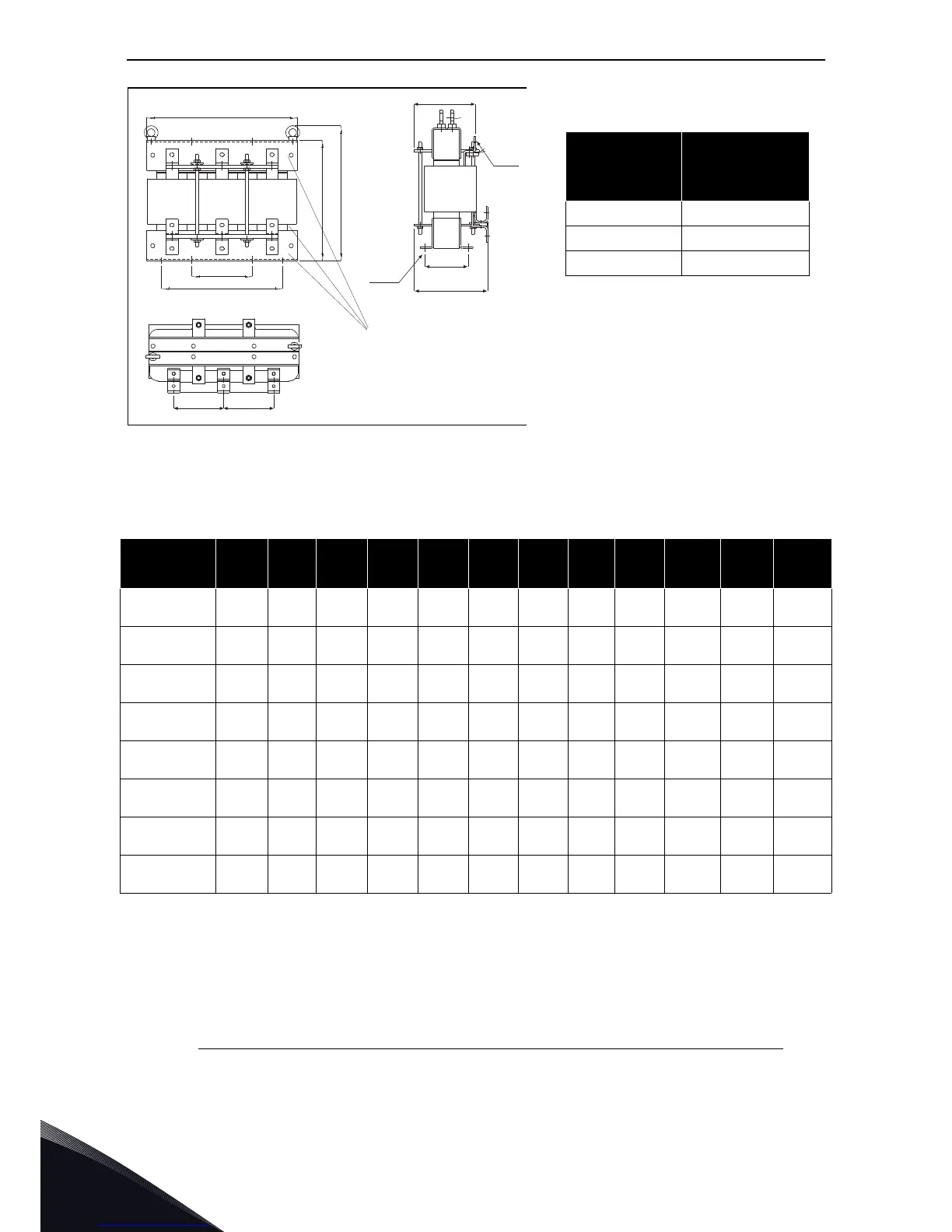

Figure 35. Example of input chokes for VACON
®
NX Liquid-Cooled. Sizes 261 A…1150 A
If you have ordered the input chokes for VACON
®
NX Liquid-Cooled separately pay attention to the
following instructions:
1. Protect the chokes from dripping water. You may even need to use plexiglass for
protection because jets of water may occur when working with the connections.
2. Connection of cables:
Types CHK0023N6A0, CHK0038N6A0, CHK0062N6A0 (chokes with terminal blocks)
The terminals are marked with letters U,V, W and X,Y and Z in such an order, however,
that terminals U and X, V and Y as well as W and Z form pairs of which one is an input and
the other an output. Furthermore, terminals U,V and W must all be used as either input
or output. The same applies to terminals X, Y and Z. See Figure 33.
Table 34. Choke dimensions; Sizes 261 A…1150 A
Choke type
H1
[mm]
H2
[mm]
W1
[mm]
W2
[mm]
W3
[mm]
W4
[mm]
D1
[mm]
D2
[mm]
D3
[mm]
S1
S2
Ø
Weight
[kg]
CHK0261N6A0 319 357 354 150 275 120 230 206 108
9*14
(8 pcs)
9*14
(9 pcs)
53
CHK0400N6A0 383 421 350 150 275 120 262 238 140
9*14
(8 pcs)
11*15
(9 pcs)
84
CHK0520N6A0 399 446 497 200 400 165 244 204 145
Ø13
(8 pcs)
11*15
(9 pcs)
115
CHK0650N6A0 449 496 497 200 400 165 244 206 145
Ø13
(8 pcs)
11*15
(9 pcs)
130
CHK0750N6A0 489 527 497 200 400 165 273 231 170
Ø13
(8 pcs)
13*18
(9 pcs)
170
CHK0820N6A0 491 529 497 200 400 165 273 231 170
Ø13
(8 pcs)
13*18
(9 pcs)
170
CHK1030N6A0 630 677 497 200 400 165 307 241 170
Ø13
(8 pcs)
13*18
(36 pcs)
213
CHK1150N6A0 630 677 497 200 400 165 307 241 170
Ø13
(8 pcs)
13*18
(36 pcs)
213
