4.3.2 Required panel thickness
The display can be mounted to 138 × 138 mm (5.43 × 5.43 in) panel openings. When
installing several displays to a panel side by side, the minimum distance between two
displays is 6 mm (0.24 in).

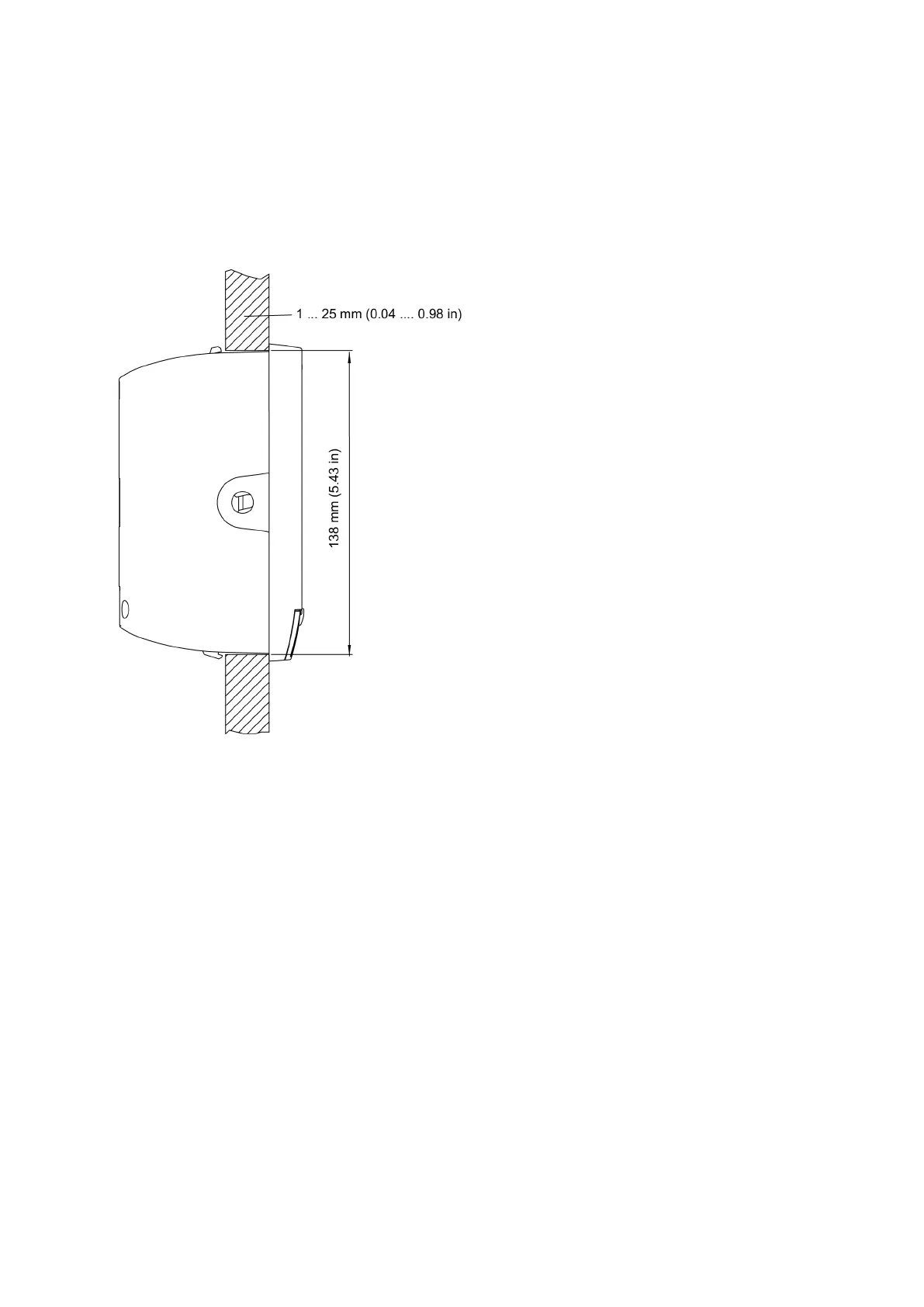

Figure 5 Requirements for panel thickness
4.3.3
Viewing angle
The viewing angle for the display:
• Horizontal viewing angle: −60° ... +60°
• Vertical viewing angle: −60° (down) ... +45° (up)
For optimum visibility, select a location and mount the display so that it is viewed either
directly from the front or from below.
WID511 User Guide M211109EN-L
