5.5.1 Entering and exiting observation mode
Observation mode is the default mode for the display. The pre-configured first data page is
displayed when the system is powered up.
To enter Observation mode from other modes, press Home.
To exit Observation mode, touch anywhere on the screen. The display switches to
Navigation mode where you can switch to another data page or enter the Maintenance
mode.
5.5.2 Navigation indicator
The navigation indicator is under the data page name. The indicator consists of small circles
that visualize how many data pages are available. The number of circles indicates the
number of pages. The highlighted circle indicates which page is currently displayed.
The navigation indicator is not displayed if there is only one data page available. When
starting the display, the indicator circles start showing up only after data is being received.
5.5.3
Switching between data pages

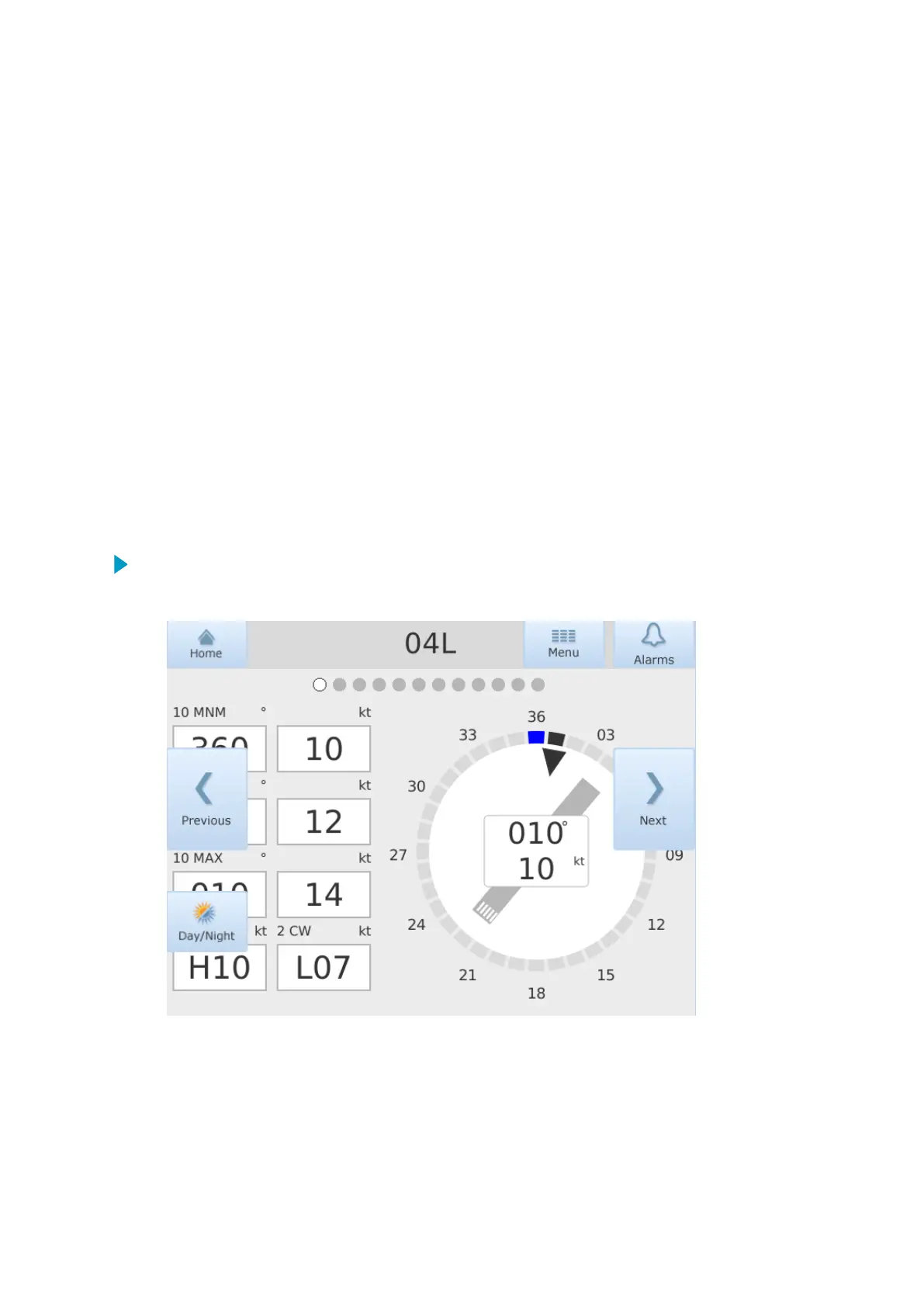

1. Touch anywhere on the screen. The display switches to Navigation mode.
2. To navigate to the data page you want to see, press Previous or Next.
5.5.4
Wind speed and direction data fields
Based on the data received from the measurement site, the display calculates and displays
the following wind speed and wind direction values:
Chapter 5 – Operation
31
