Vaisala AviMet WID511 - Display Layout Options; Figure 13 ATC Layout

Values are displayed in magnetic north direction.
For correct functioning of the wind direction data, the wind sensor alignment and station
declination must have been configured correctly.
5.5.5 Display layout options
The display provides 3 dierent layouts for data: ATC, GEN, and ALL. To select which layouts
and pages are shown, select Advanced settings > Page selection.
5.5.5.1 ATC layout
The ATC layout is specially designed for air trac controller use and contains only the values
needed to report to the pilots or to make operational decisions.

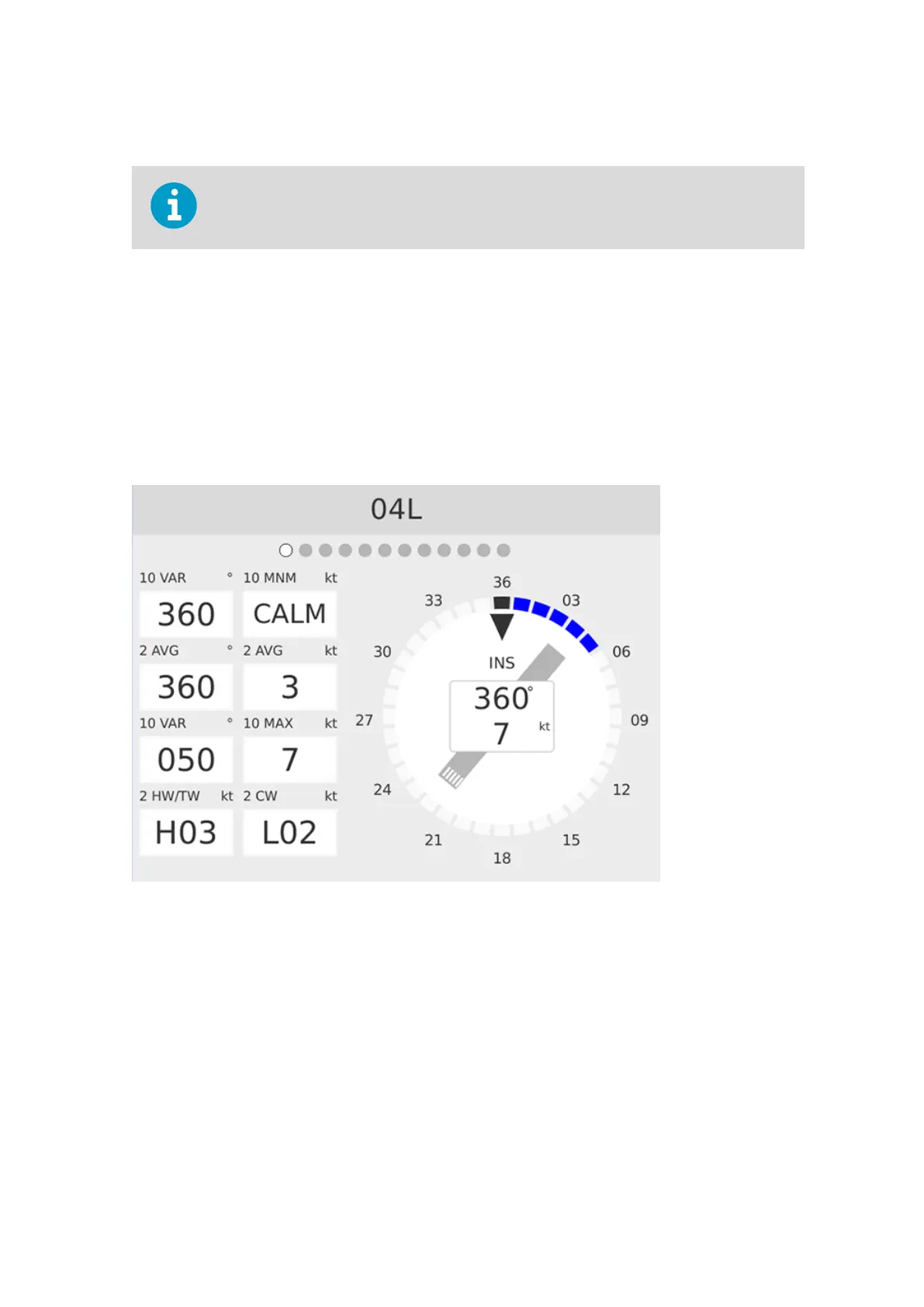

Figure 13 ATC layout
