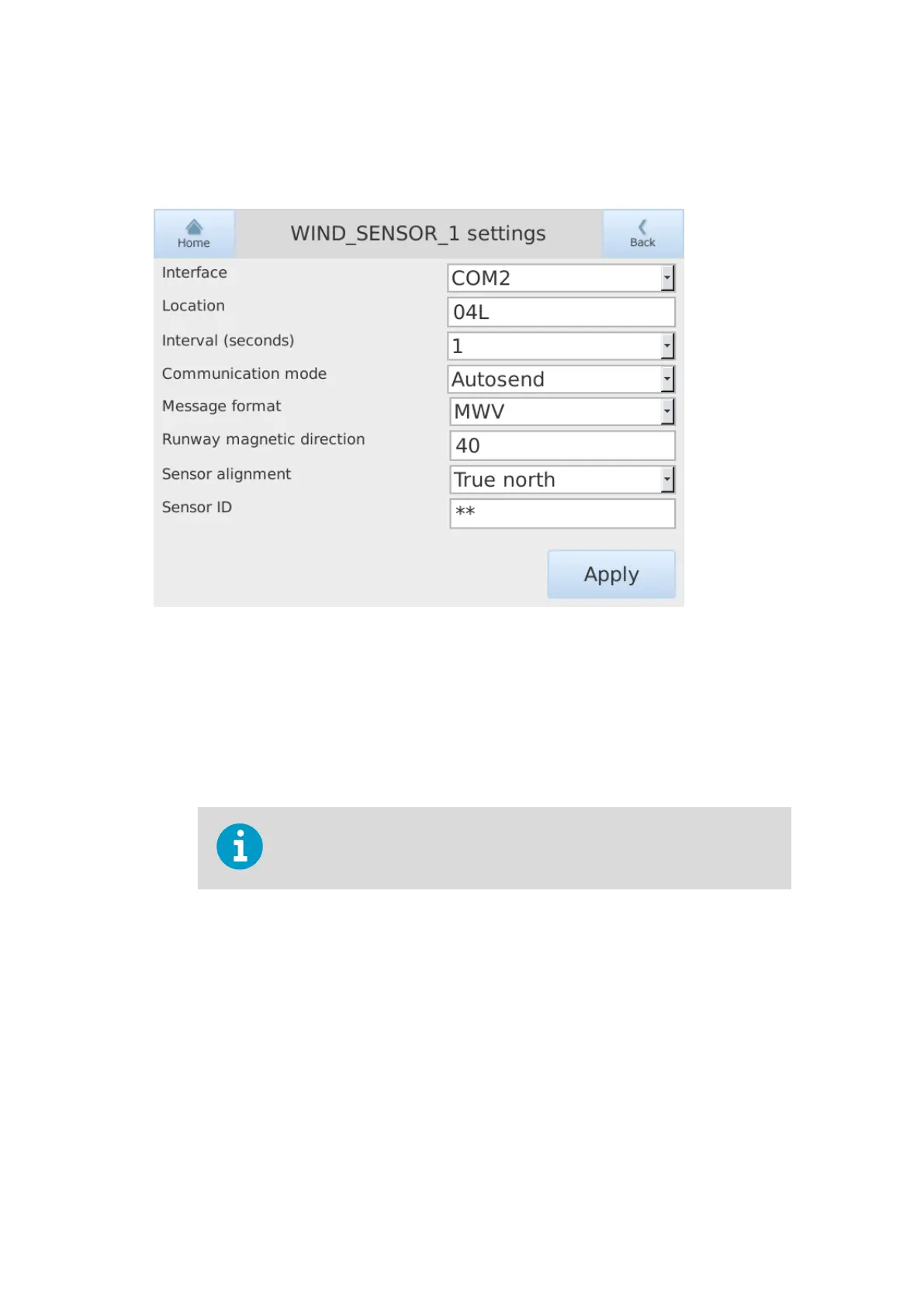

6. On the message settings, depending on the data type:
• Press the arrow to open the list and select from the list of options.
• Press the data field to open the typing pad. When finished, press OK.
Interface
Select the communication interface used for receiving data from the sensor, for
example, COM2 if serial connection is used.
Location
Type the (ICAO) location indicator for the sensor, for example, 22R.
Interval (seconds)
Select the data sending interval.
In the autosend mode, the interval must match the interval defined in the
sensor.
Communication mode
Autosend: Select this if the sensor sends the data according to its pre-configured
schedule.
Poll: Select this if the display polls the sensor to receive the data.
Message format
Select the message format that the sensor sends.
Runway magnetic direction
(Wind sensor only) Type the runway magnetic direction in degrees.
Sensor alignment
WID511 User Guide M211109EN-L
70
