Vaisala GMP252 - ASM212017 SP Spray Shield Dimensions; Figure 37 ASM212017 SP Spray Shield Dimensions; Figure 38 GMP252 Spray Shield Cross Section

11.6 ASM212017SP Spray Shield
Dimensions
Ø 40 [1.57]
72 [2.83]
Shield + GMP251: 113 [4.45]
Shield + GMP252: 146 [5.75]
mm
[in]

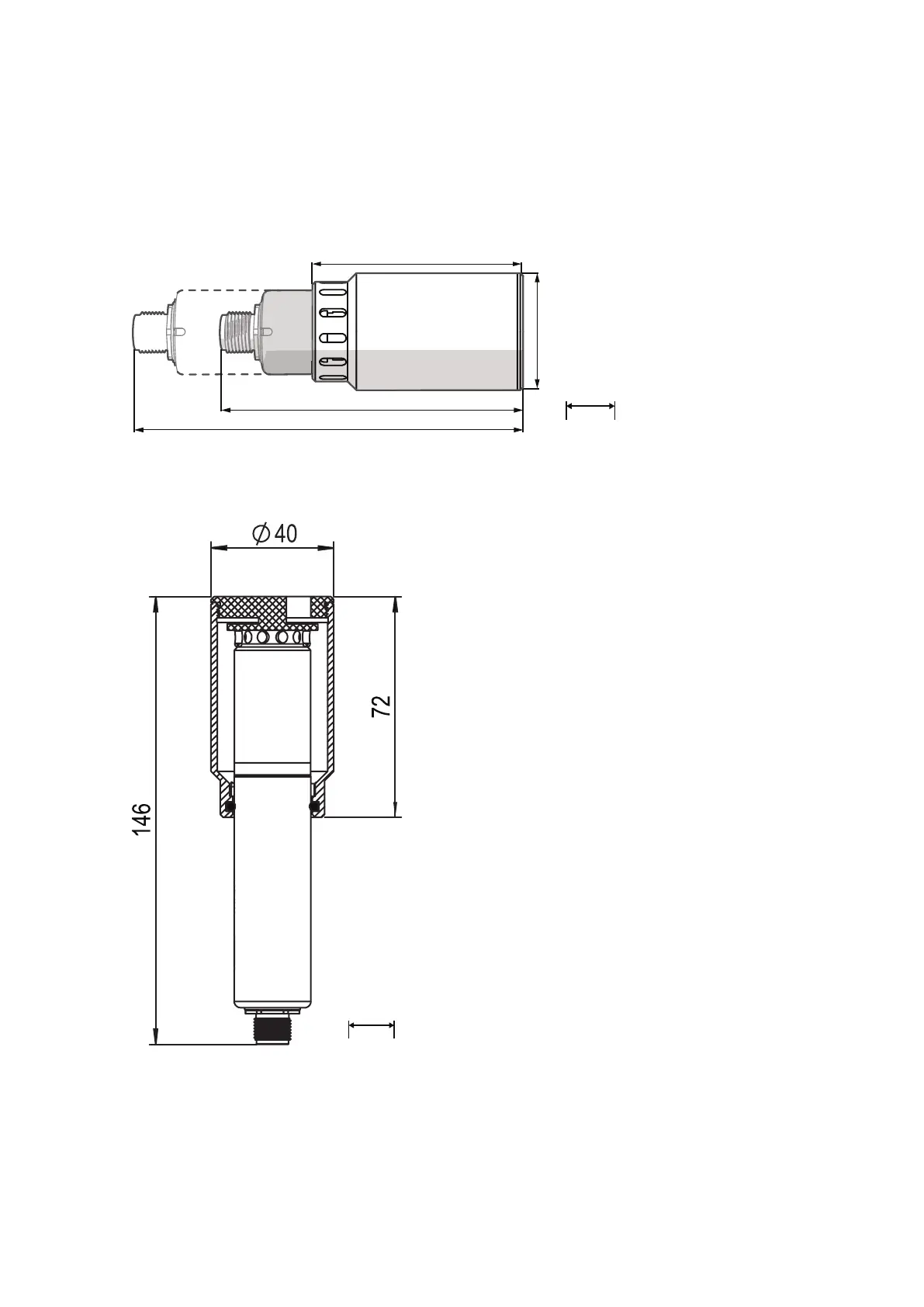

Figure 37 ASM212017SP Spray Shield Dimensions
mm
Figure 38 GMP252 Spray Shield Cross Section
Chapter 11 – Technical Data
109
