Rev. 5
8-3
OPTIONAL LIGHTING
The lighting components include the wing tip strobe light, extension, landing light
rib, landing light, lens backing strip, landing light lens, cooling shroud and red eyeball
cockpit light. See Figure 20. The wing tip light mounts in the extension which attaches
to the wing tip. The landing light is mounted to the landing light rib which is attached
inside the wing skin. The eyeball light mounts to the rollover structure. Refer to the KAI
for empennage component removal and installation.

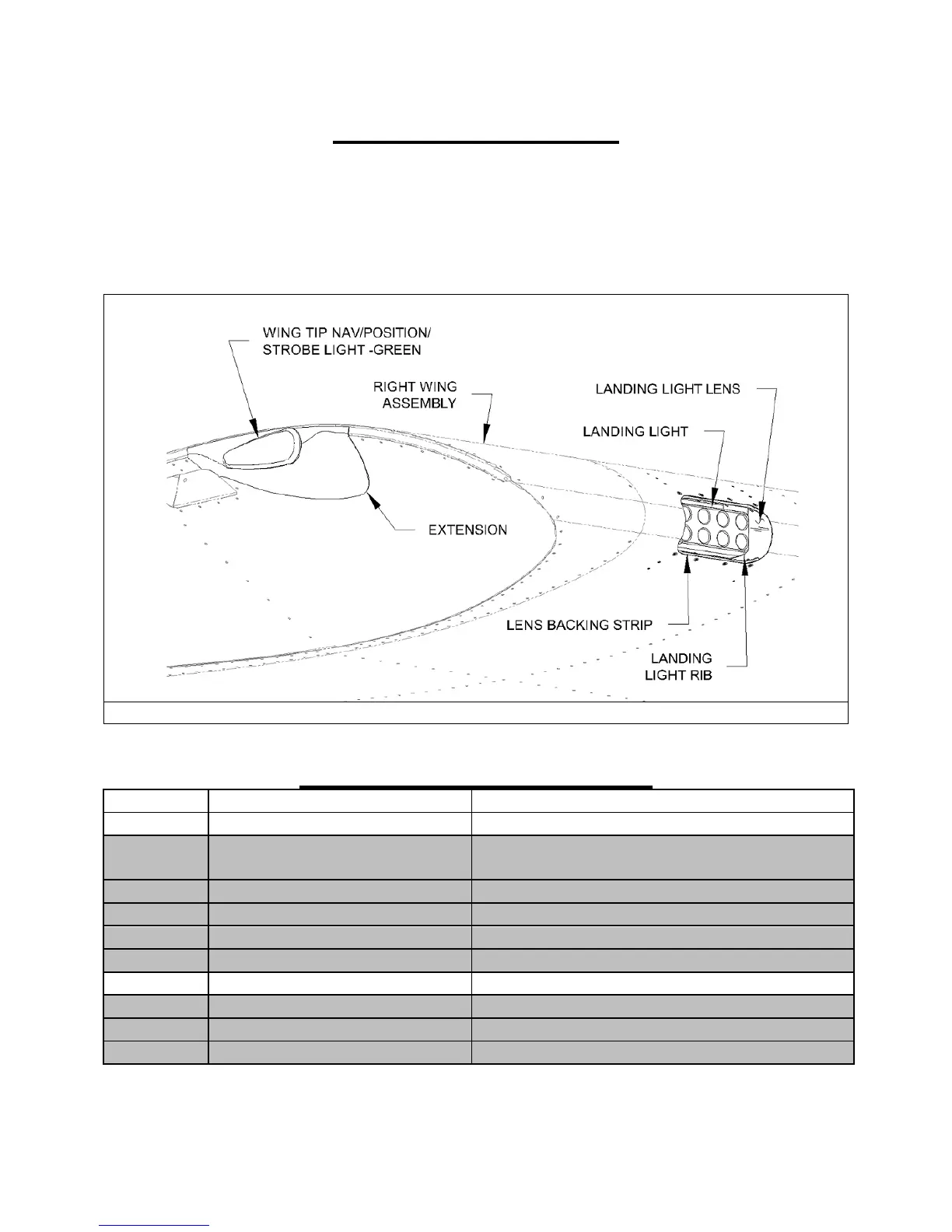

Figure 20: Optional Wing Tip Lighting (cooling shroud & eyeball light not shown)
OPTIONAL COMPONENTS
See shaded items below & Refer to KAI
Wing Tip NAV/Position/
Strobe Light Set
LN-200-1 (green light shown)
See shaded items below & Refer to KAI
Rect./Reg. Cooling Shroud
Red Eyeball Cockpit Light
To Next Page
