C
HAPTER
3. M
AINTENANCE
P
ROCEDURES
3-57
02.9628.0010 CONFIDENTIAL
7-Oct-97
HONEYCOMB
DIMMER COVER
PLATE
DIMMER ACTUATOR RING
DFDVW4
& #4 LOCK WASHER
4-40X1/4" PPZ SCREW
1
2
3
4
5
6
7
8
9
10 11
12
MOVE TAB TO THIS POSITION
BEFORE DISASSEMBLY

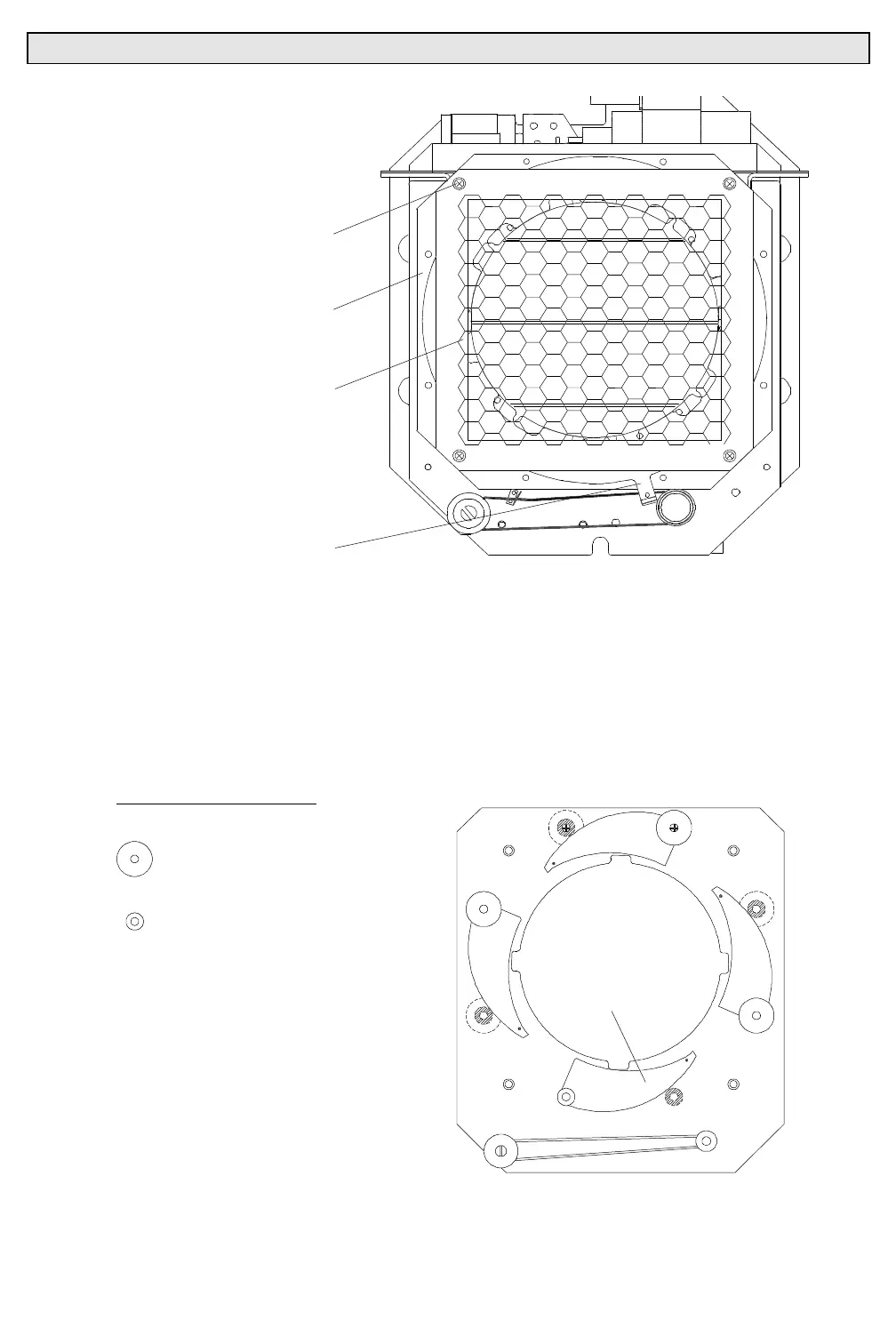

Figure 3-13. Dimmer Cover Plate and Honeycomb Removal and Replacement
Step 5. Remove left-hand iris leaves.
a. Remove two small thin nylon washers from standoff 7.
b. Remove large thin nylon washer from standoffs 5, 6, and 8.
c. Remove left-hand iris leaves from standoffs 5, 6, 7, and 8.
DISASSEMBLY STAGE 1
= LARGE THIN WASHER
= SMALL THIN WASHER
5
6
7
8
(10.9628.0105)
(10.9628.0106)
LEFT-HAND
IRIS LEAF
