Step 6. Remove dimmer actuator ring.
a. Remove small thin nylon washer from standoffs 5, 6, and 8.
b. Remove small thick nylon washer from standoffs 1, 2, 3,
and 4.
c. Remove dimmer actuator ring.

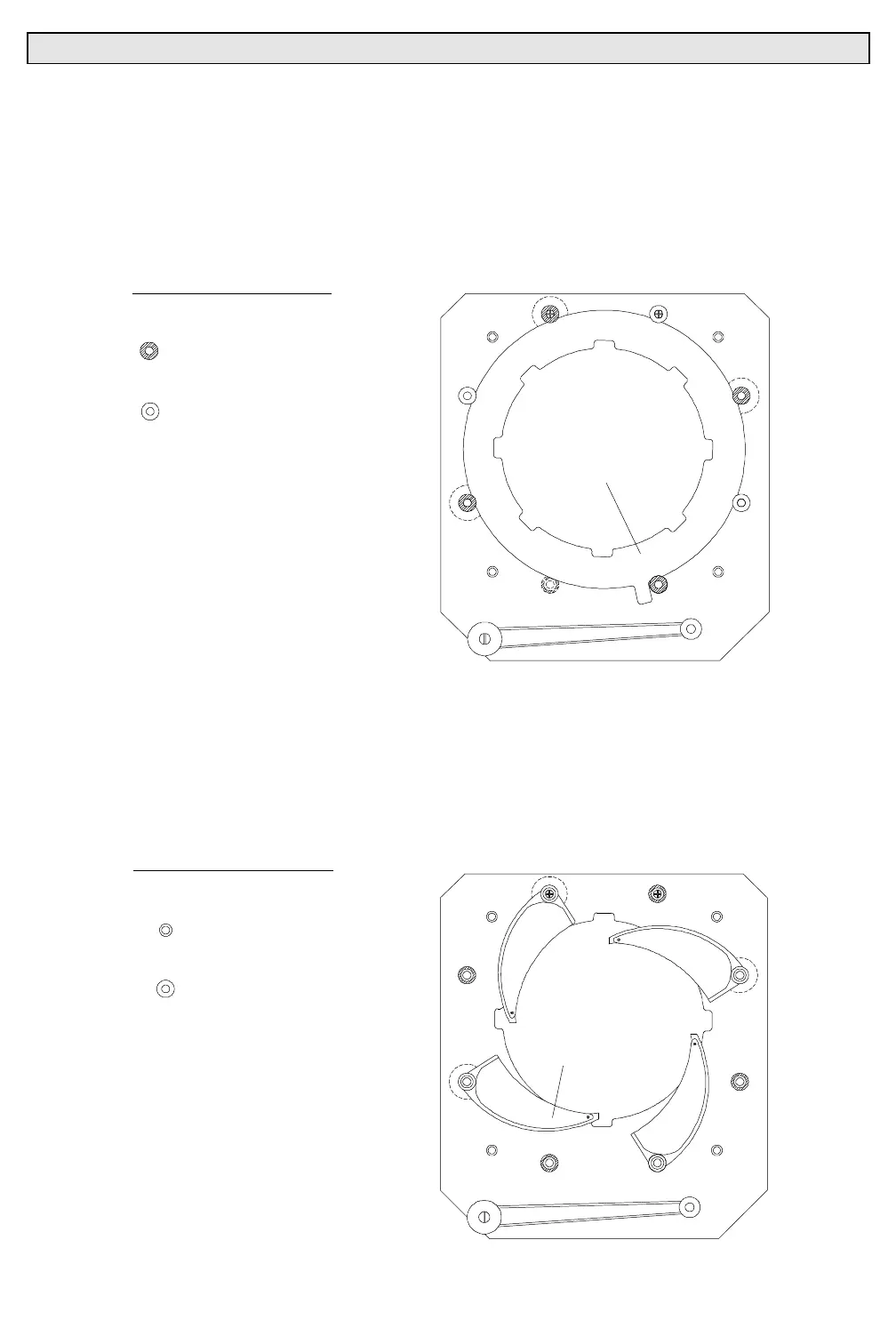

DISASSEMBLY STAGE 2
= SMALL THICK WASHER
= SMALL THIN WASHER
(10.9628.0109)
(10.9628.0106)
ACTUATOR RING
1
2
3
4
5
6
8
Step 7. Remove right-hand iris leaves.
a. Remove nylon roller from standoffs 1, 2, 3, and 4.
b. Remove small thin nylon washer from standoffs 1, 2, 3,
and 4.
c. Remove right-hand iris leaves from standoffs 1, 2, 3, and 4.
DISASSEMBLY STAGE 3
= ROLLER
= SMALL THIN WASHER
(10.9628.0101)
(10.9628.0106)
RIGHT-HAND
IRIS LEAF
1
2
3
4
