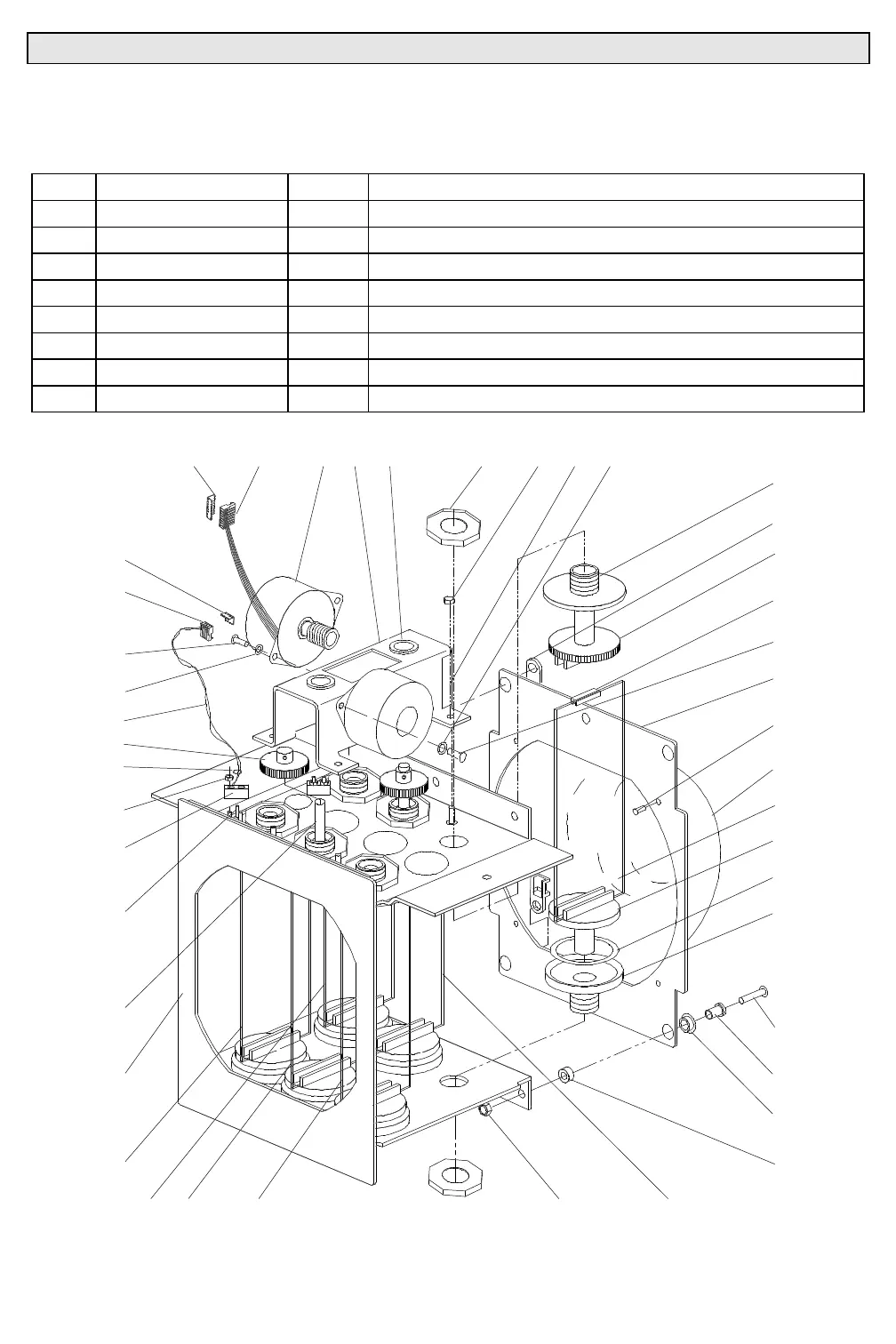

Assy, Blue/Amber Bulkhead ( VL4 ) (continued)
22.4006.0001
NO. PART NO. QTY DESCRIPTION
32 55.6537.0001 4 EA WASHER, LOCK #4 INTERNAL TOOTH
33 55.6570.0001 2 EA WORM WHEEL, ULTEM 100Q
34 55.6612.0003 2 EA PIN, 3/64” X 1/2” SPRIAL STAINLESS STEEL
35 55.6689.0001 4 EA INSULATOR, MOLDED NYL SCREW #6 x 1/4"L
36 55.6689.0003 4 EA WASHER, MOLDED NYL, #8 X 1/8"T X 3/8"D
37 55.6689.0004 4 EA WASHER, MOLDED NYL SHOULDER, #8
38 73.7021.0006 44 IN WIRE, 24AWG BLUE TWISTED PR.
39 74.1023.0001 2 EA SWITCH, GOLD CROSSPOINT CONTACT
3
5
7
8
24
6
1
28
2
25
35
37
36
2013
12
10
