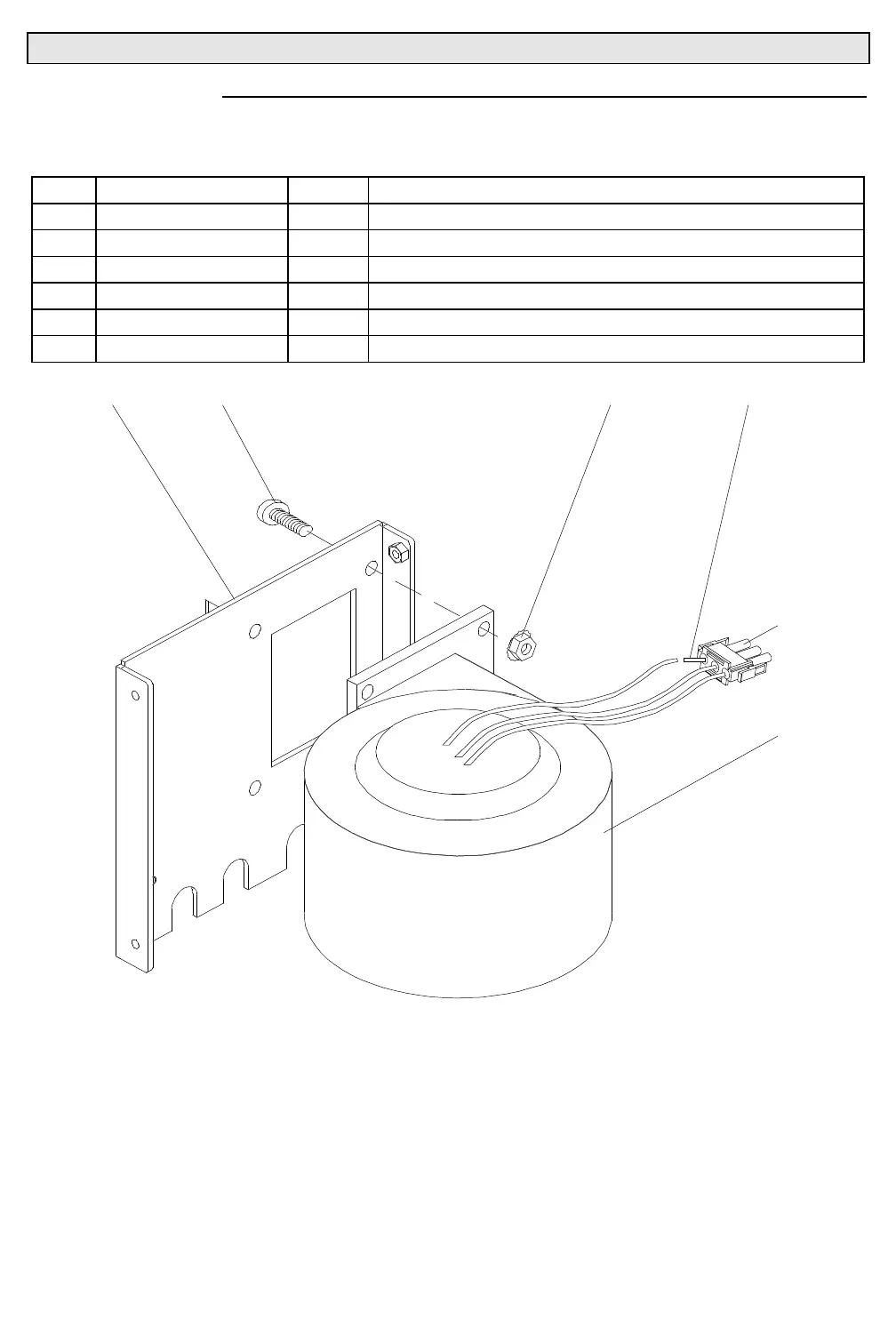

4.2.2.8 Assy, Connectorized Fan
22.9628.0177
NO. PART NO. QTY DESCRIPTION
1 10.9628.0127 1 EA MOUNT, FAN
2 40.7108.0001 1 EA FAN, SNGLE INLET BLOWER AC 110V (VL4)
3 52.6231.0001 1 EA PLUG HOUSING, MNLOK PLUG 3POS
4 52.8258.0001 3 EA CONTACT PIN, 20-14AWG MNLOK (LOOSE)
5 53.2001.0001 4 EA NUT, 10-32, KEPS ZINC PLATED
6 53.6549.0001 4 EA SCREW, 10-32X3/8"PPB
2
3
1
