VARILITE VL4 - Page 188

4-34
V
ARI
*L
ITE
®
-
VL4
W
ASH
L
UMINAIRE
S
ERVICE
M
ANUAL
CONFIDENTIAL 02.9628.0010
7-Oct-97

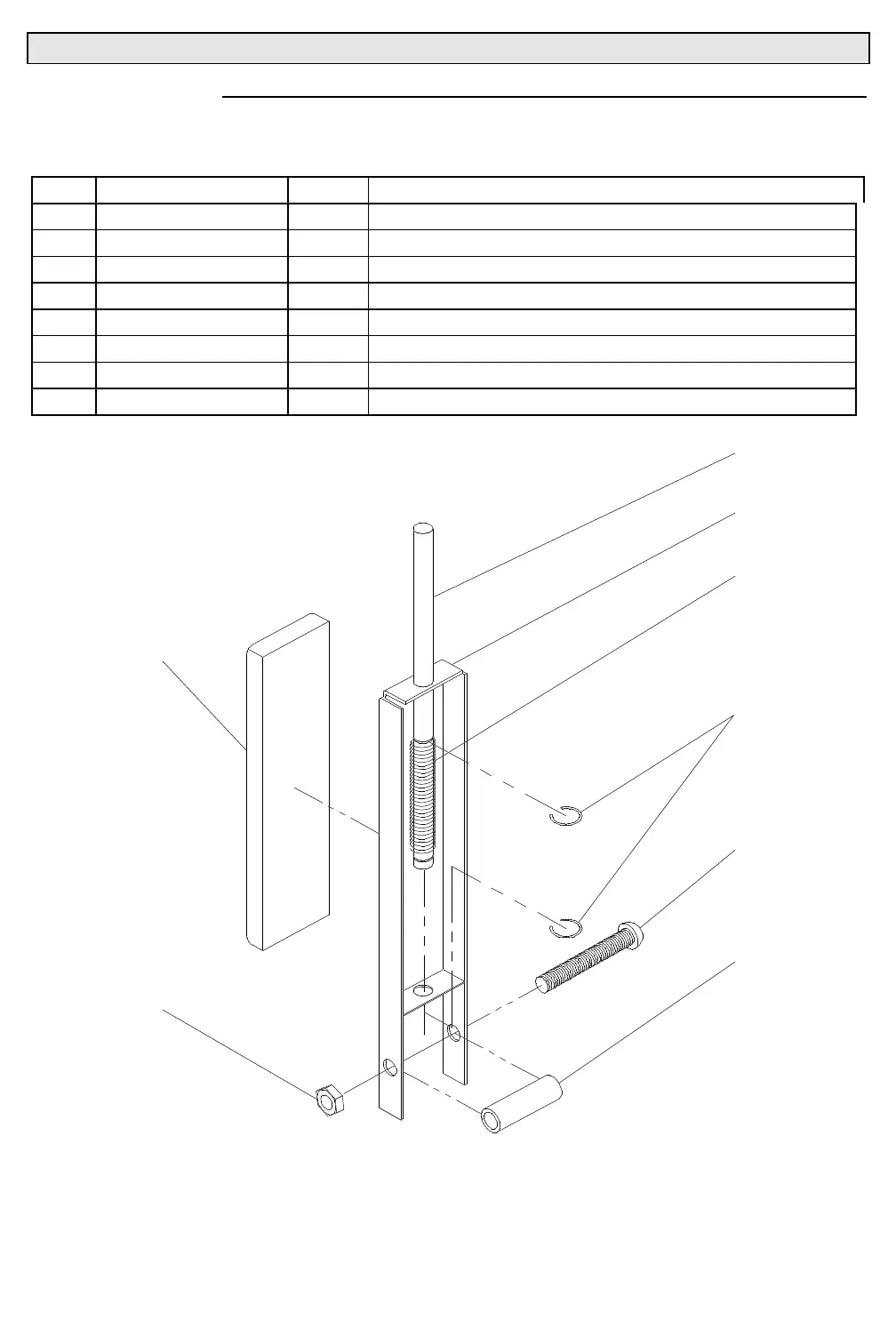

4.2.3.3 Assy, Card Retainer
22.9628.0171
NO. PART NO. QTY DESCRIPTION
1 10.9628.0170 1 EA PLUNGER, CARD RETAINER
2 10.9628.0184 1 EA PAD, CARD RETAINER
3 22.9628.0169 1 EA CARD RETAINER
4 53.2001.0003 1 EA NUT, 10-32 NYLON INSERT
5 53.6514.0001 1 EA SCREW, 10-32X1 1/4"PPB
6 55.2234.0002 2 EA E-RING, .187 SHAFT DIA.
7 55.6568.0014 1 EA SPRING, .240ODX2.00LG W/.022DIA SS WIRE
8 55.6584.0001 1 EA SPACER, 3/8"X5/8" BLACK
1
3
7
6
5
8
2
4
