VARILITE VL4 - Page 189

C
HAPTER
4. I
LLUSTRATED
P
ARTS
B
REAKDOWN
4-35
02.9628.0010 CONFIDENTIAL
7-Oct-97

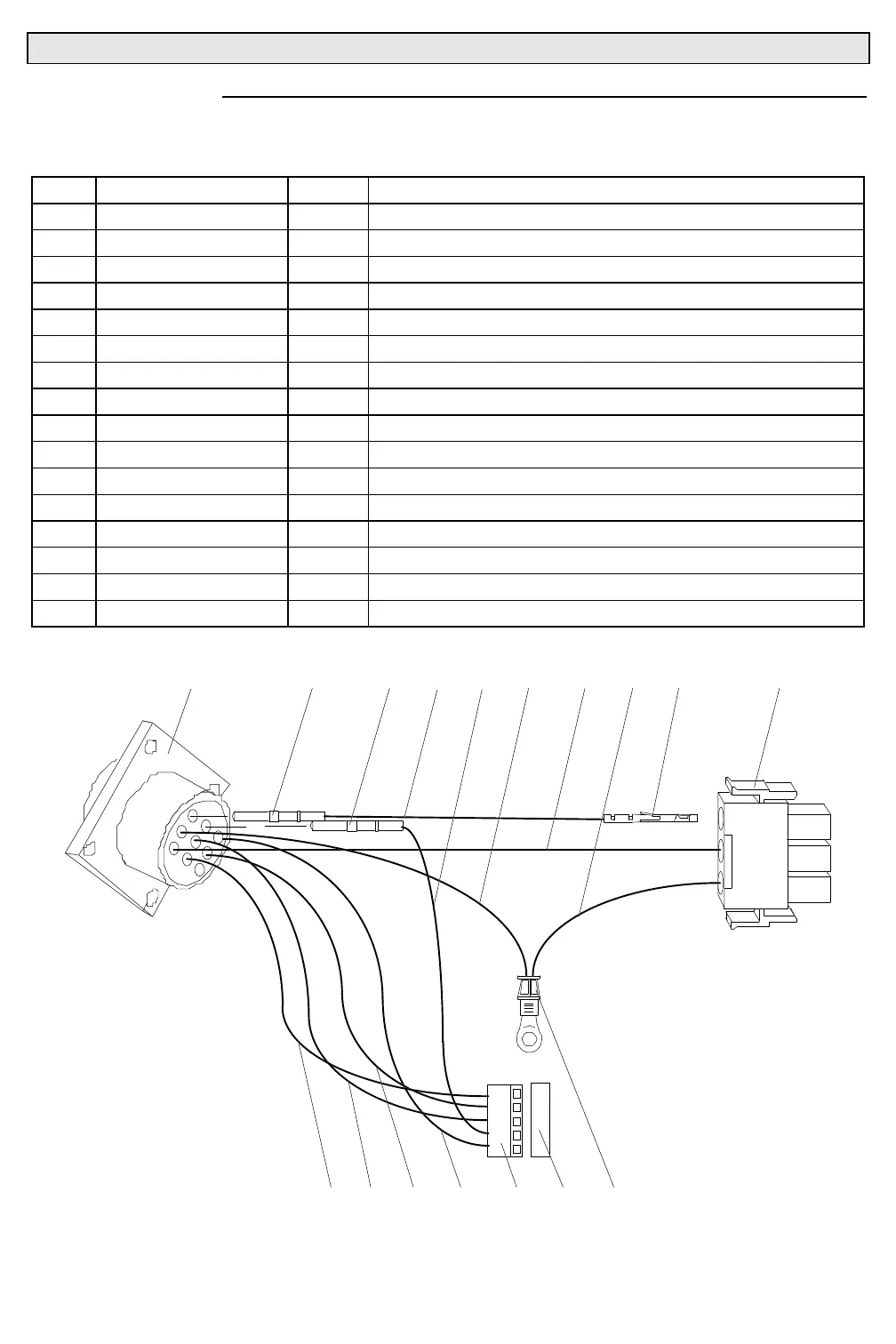

4.2.3.4 Cable Assy, Input Conn. Wire ( VL4 )
25.9628.0150
NO. PART NO. QTY DESCRIPTION
1 52.6231.0001 1 EA PLUG HOUSING, MNLOK PLUG 3POS
2 52.6251.0001 1 EA RECEPT, 9POS CHASSIS MNT LAMP
3 52.6270.0001 1 EA CONN HOUSING, MTA CLOSED END RED 5PIN
4 52.6424.0005 1 EA COVER, STRAIN RELIEF/5POS MTA
5 52.8277.0001 5 EA CONTACT PIN, 22AWG GLD (LOOSE) TYPE 3+
6 52.8276.0001 3 EA CONTACT PIN, TIN 18-16AWG (LOOSE) TYPE 3+
7 52.8256.0001 3 EA CONTACT SCKT, 20AWG TIN MNLOK (LOOSE)
8 52.8232.0001 1 EA TERM, RING #10 16-14AWG (LOOSE)
9 73.7006.0001 7 IN WIRE, 16AWG STRND BLK STRND UL1061
10 73.7007.0001 7 IN WIRE, 16AWG STRND WHT STRND UL1061
11 73.7008.0001 11 IN WIRE, 16AWG STRND GRN STRND UL1061
12 73.7018.0001 6 IN WIRE, 22AWG STRND RED
13 73.7030.0001 6 IN WIRE, 22AWG STRND GRAY
14 73.7031.0001 6 IN WIRE, 22AWG STRND BLACK
15 73.7046.0001 6 IN WIRE, 22AWG STRND GREEN
16 73.7052.0001 6 IN WIRE, 22AWG STRND WHITE
14 13 12 15 3 4 8
265916
11
10
(4 IN.)(7 IN.)
11
71
