VAT 615 Series

Installation, Operating & Maintenance Instructions
Series 615 DN 40 (I.D. 1½”), DeviceNet
VAT Vakuumventile AG, CH-9469 Haag, Switzerland
Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com
603476EA
2013-07-25
94/102

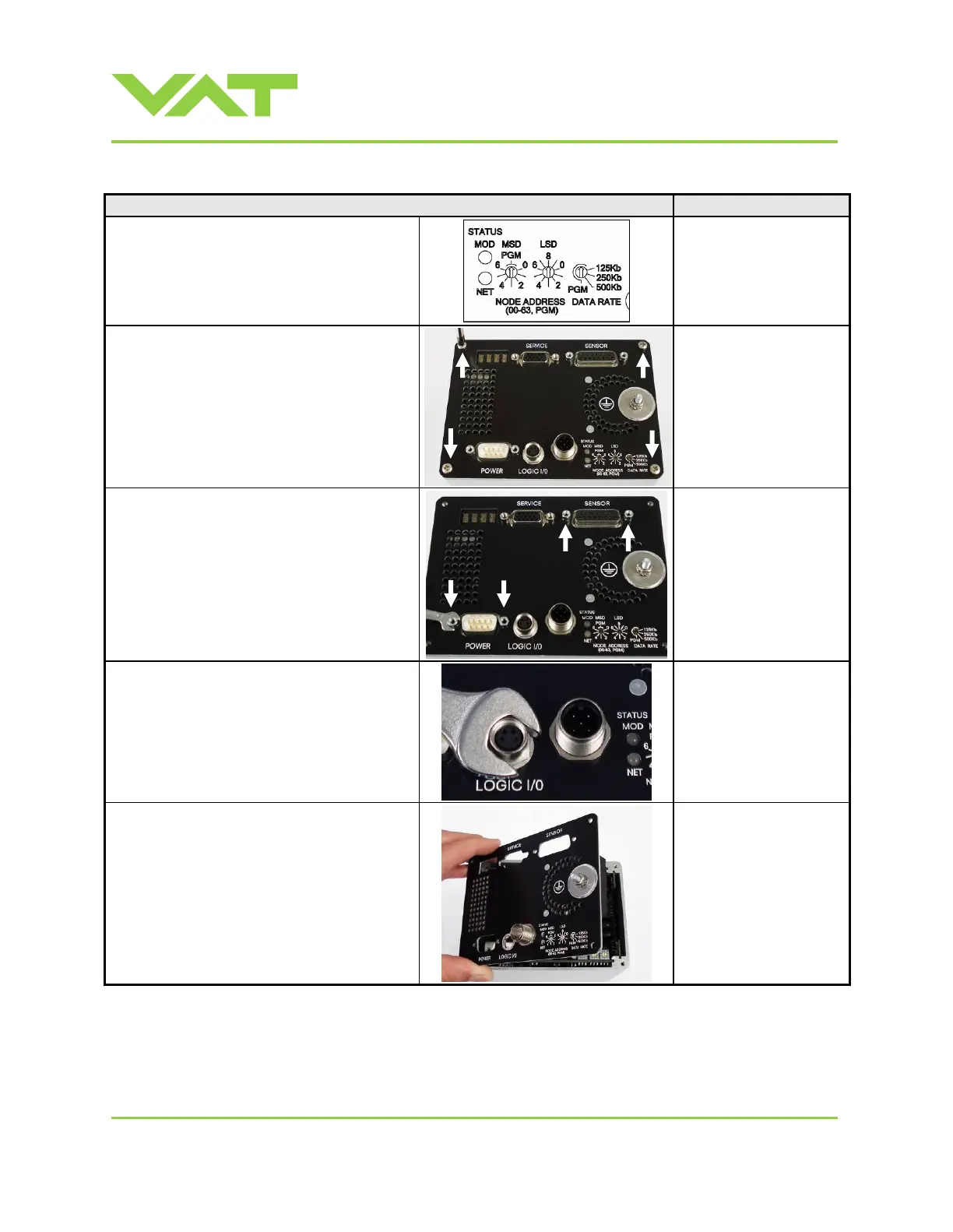

Description
Required tool
1. Write down the «NODE ADDRESS» and
«DATA RATE» in case of Interface board
replacement.
Ballpoint
2. Remove panel screws.
Pozidriv screw driver
size 1
3. Remove female screw locks from SENSOR
and POWER connectors.
Open end wrench 4.5 mm
4. Loosen and remove the LOCIC connector
screw
Open end wrench 10mm
5. Lift panel carefully.
