Description
Required tool

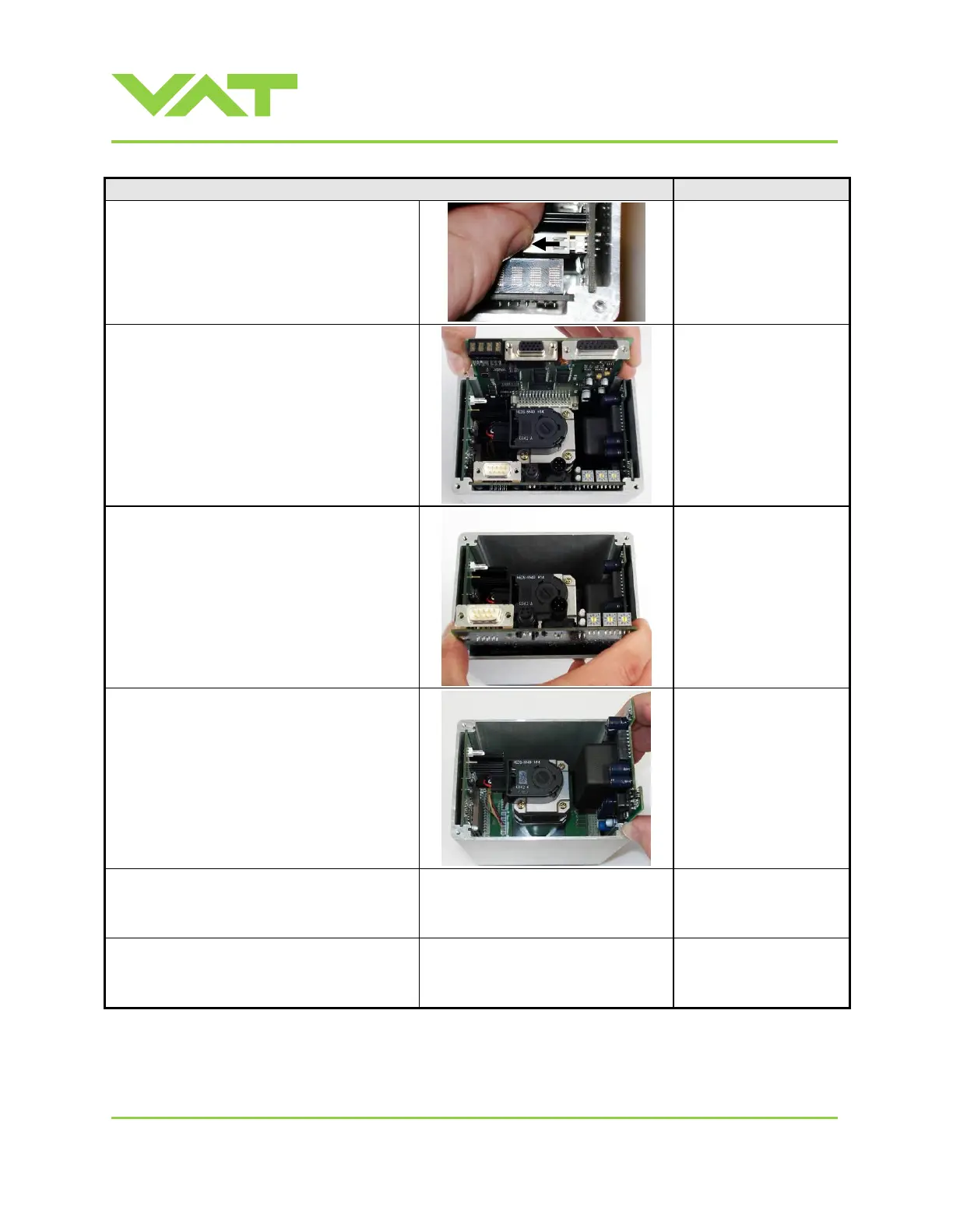

6. Disconnect fan cable from board.
7. Remove or replace master board.
8. Remove or replace interface board.
9. Remove or replace option board.
10. Insert all boards in reverse order as they
disassembled at correct positions (see
steps 9…7).
11. Reconnect fan cable to motor driver
board
(see step 6).
